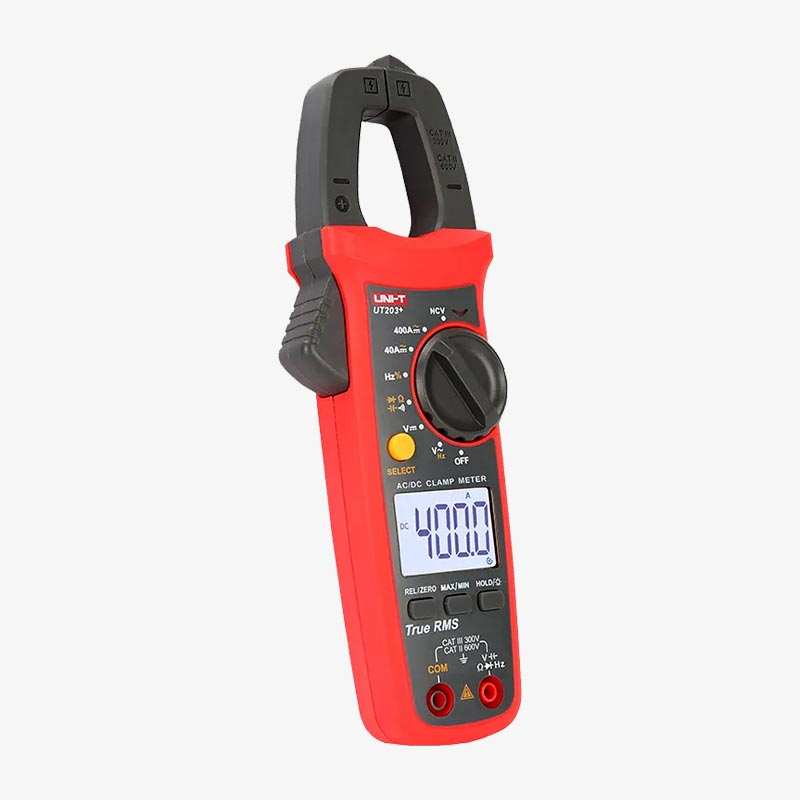

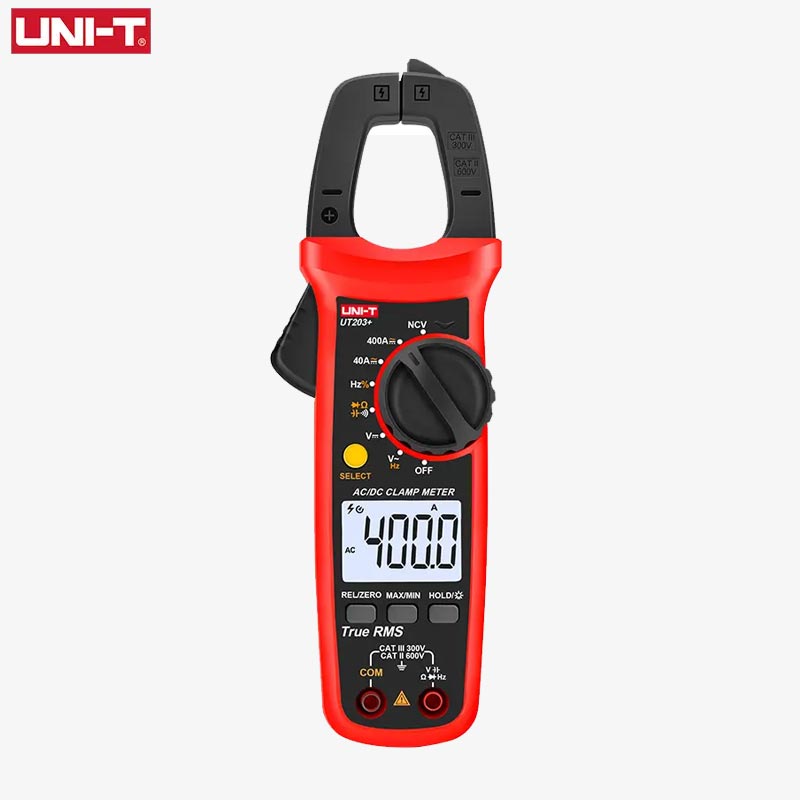

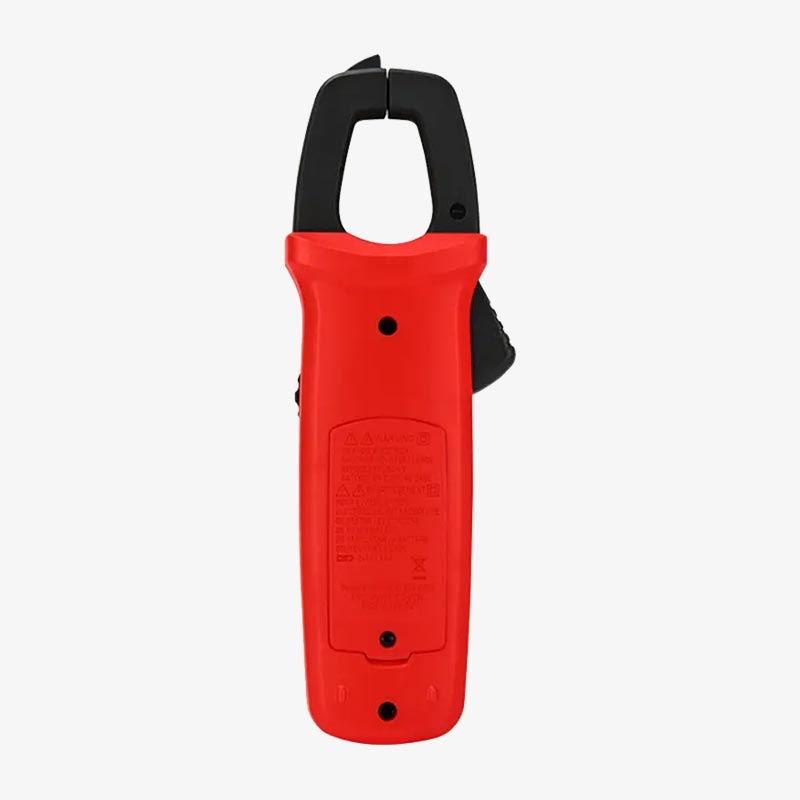

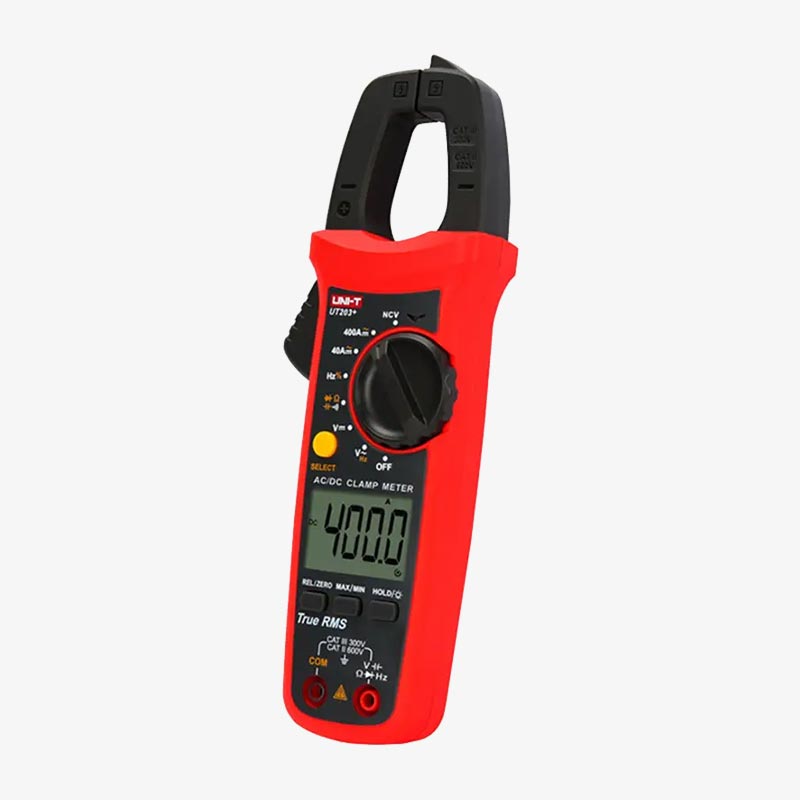

UNI-T UT203+ 400A AC/DC Current True RMS Digital Clamp Meter

The UNI-T UT203+ is a highly portable and versatile clamp meter that delivers precise AC and DC current measurements with true RMS capabilities. Built to adhere to EN61010-1 safety standards (CAT II 600V/CAT III 300V), this digital clamp meter offers full-function protection to ensure a secure and reliable measurement experience. It not only handles basic measurements but also features high-precision current scales and high-voltage frequency measurement extensions.

Click Here for Data Sheet!

UT203+ Digital Clamp Meter Features:

• Large LCD Display: The spacious LCD screen provides clear and easy-to-read measurement readings.
• Antimagnetic and Anti-Jamming: Engineered with strong antimagnetic and anti-jamming performance for accurate measurements.
• Full-Function Protection: Ensures safety and reliability during measurements.
• Unit Symbol Display: Makes it straightforward to interpret measurement results.
• Additional Functions: Includes relative value measurements, frequency/duty cycle assessment, data hold feature, and true RMS measurement for enhanced accuracy.
• Audio-Visual NCV Electric Field Detection: Capable of detecting electric fields with both audio and visual indicators.
• High Voltage Frequency Range: Ranges from 10Hz to 60kHz for high voltage and 60Hz to 10MHz for low voltage.
• AC/DC Current Memory Function: Remembers current measurements in ACA/DCA mode.
• Power Efficiency: The UT203+ consumes minimal power without backlight, ensuring an extended battery life of up to 400 hours. In sleep mode, power consumption drops to <11uA.

Specifications:

• AC Current (A): 40A/400A ±(2.5%+5)
• AC Current Frequency (Hz): 50Hz~100Hz
• DC Current (A): 40A/400A ±(2.5%+5)
• AC Voltage (V): 600V ±(0.8%+5)
• AC Voltage Frequency (Hz): 10Hz~60kHz ±(0.5%+2)
• DC Voltage (A): 600V ±(0.5%+2)
• Resistance (Ω): 40MΩ ±(0.8%+2)
• Capacitance (F): 40mF ±(4%+5)
• Frequency (Hz): 10Hz~10MHz ±(0.1%+4)
• Display Count: 4000
• Auto Range: Supported
• Jaw Opening: 28mm
• True RMS: Included
• NCV: Supported
• Continuity Test: Supported


Package Includes:

Test Leads, Digital Clamp Meter and User Manual.
