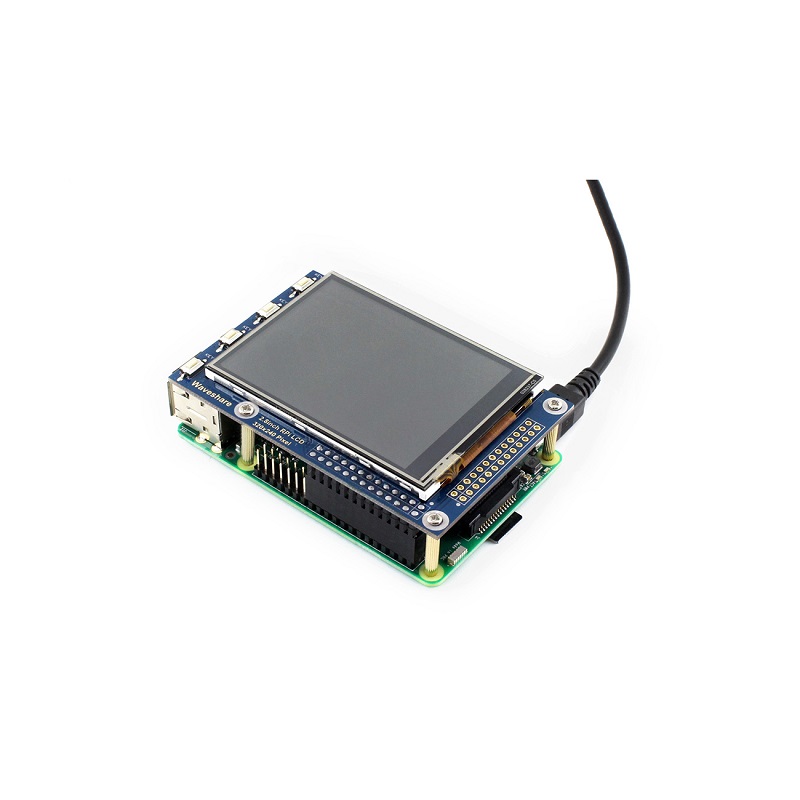

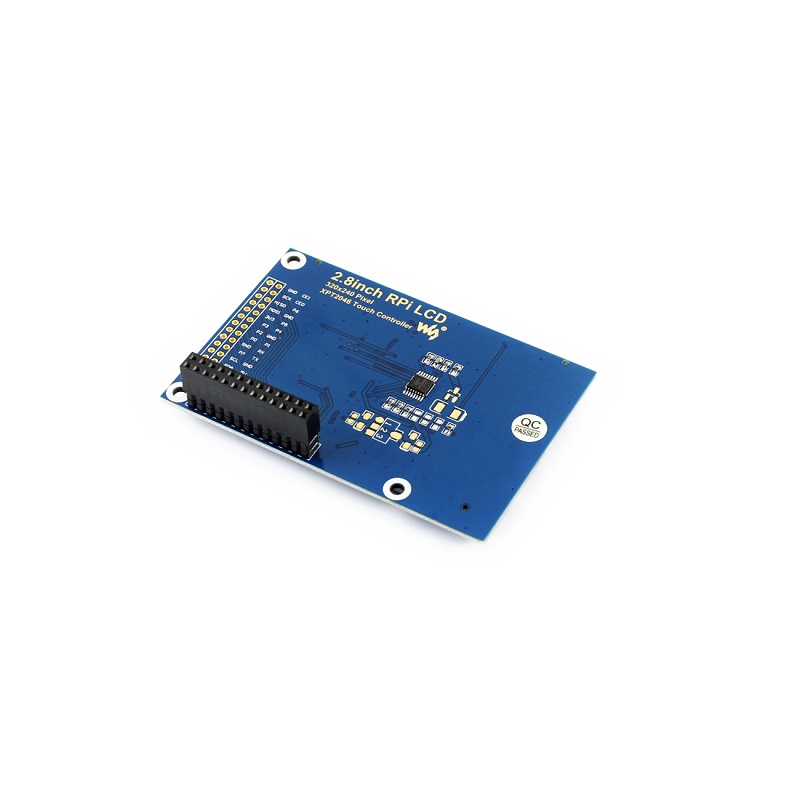

Waveshare 2.8inch RPi LCD (A), 320×240

This is a Waveshare 4-inch Resistive Touch Screen TFT LCD display, with a resolution of 480×320, SPI interface, and a resistive touch panel, which supports any revision of Raspberry Pi (directly pluggable). This LCD can support Raspbian / Ubuntu / Kali. Supports the FBCP software driver as well, allows config software resolution, and sets up dual-display.

Features:

1. 320×240 hardware resolution
2. Resistive touch control
3. Supports any revision of Raspberry Pi (directly-pluggable)
4. Drivers provided (works with your own Raspbian/Ubuntu/Kali)
5. Supports FBCP software driver as well, allows to config software resolution and set up dual-display
6. Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
7. 4 user keys
8. High-quality immersion gold surface plating
9. Combined with the Raspberry Pi, allows you to:
   1. Take photos by touching (up to 17 camera modes)
   2. Use software keyboard (system interaction without keyboard/mouse)

Specifications:

1. LCD Type : TFT
2. LCD Interface: SPI
3. Touch Screen Type: Resistive
4. Touch Screen Controller: XPT2046
5. Colors: 65536
6. Backlight: LED
7. Resolution : 320*240 (Pixel)

Package Includes:

1 x Waveshare 2.8inch RPi LCD (A), 320×240
