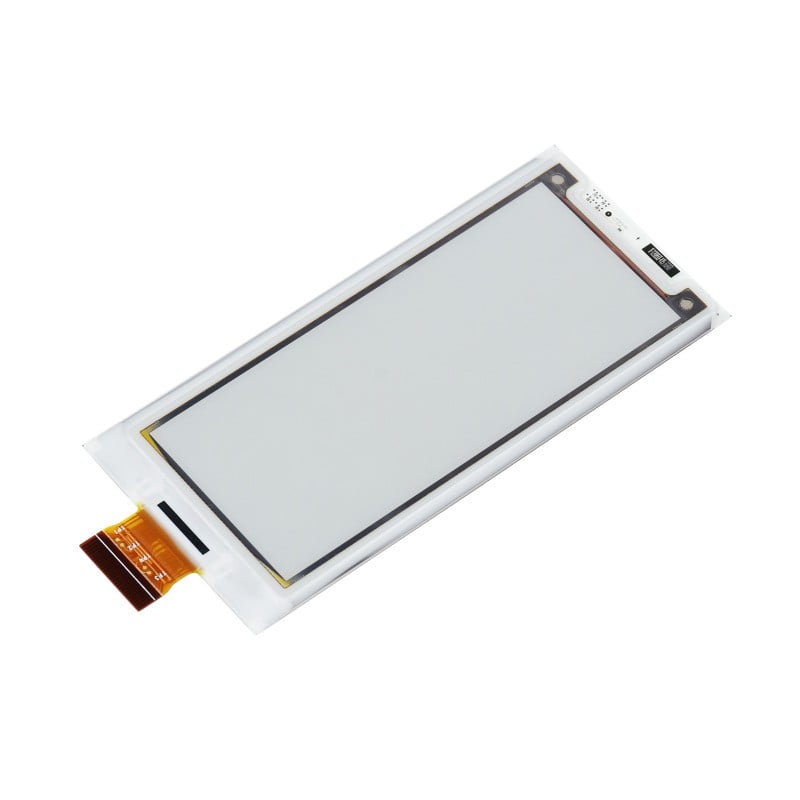

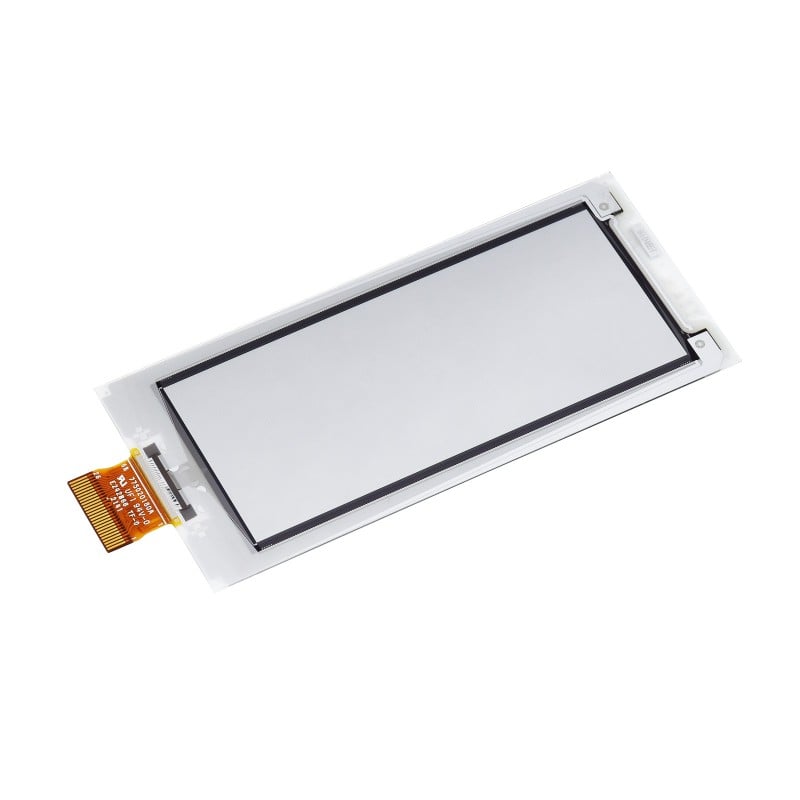

Waveshare 3inch e-Paper (G) raw display, 400 × 168, SPI Interface

3inch E-Paper (G) Raw Display, 400 × 168, SPI Interface. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in the clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…

Useful link:

Documentation and Interfacing of 3inch e-Paper Module with controller

Features:

1. No backlight keeps displaying last content for a long time even when power down
2. Ultra-low power consumption, basically power is only required for refreshing
3. Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications:

1. Operating Voltage: 3.3V

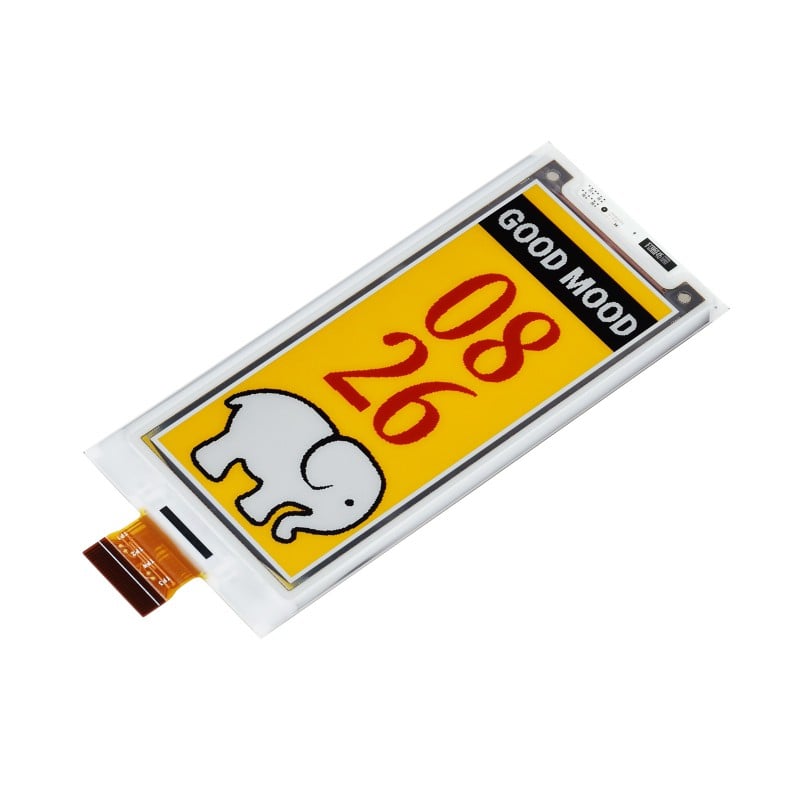

2. Display Color: Red/Yellow/Black/White
3. Interface: 3-wire SPI, 4-wire SPI
4. Grey Scale: 2
5. Outline Dimensions: 86.4 × 39.2 × 0.85mm
6. Full Refresh Time: 12s
7. Display Size: 70.4 × 29.568mm
8. Refresh Power: <60mW (typ.)
9. Dot Pitch: 0.176 × 0.176mm
10. Standby Current: <0.01uA (almost none)
11. Resolution: 400×168 pixels
12. Viewing Angle: >170°

Package Includes:

1 x 3inch e-Paper (G) x1
