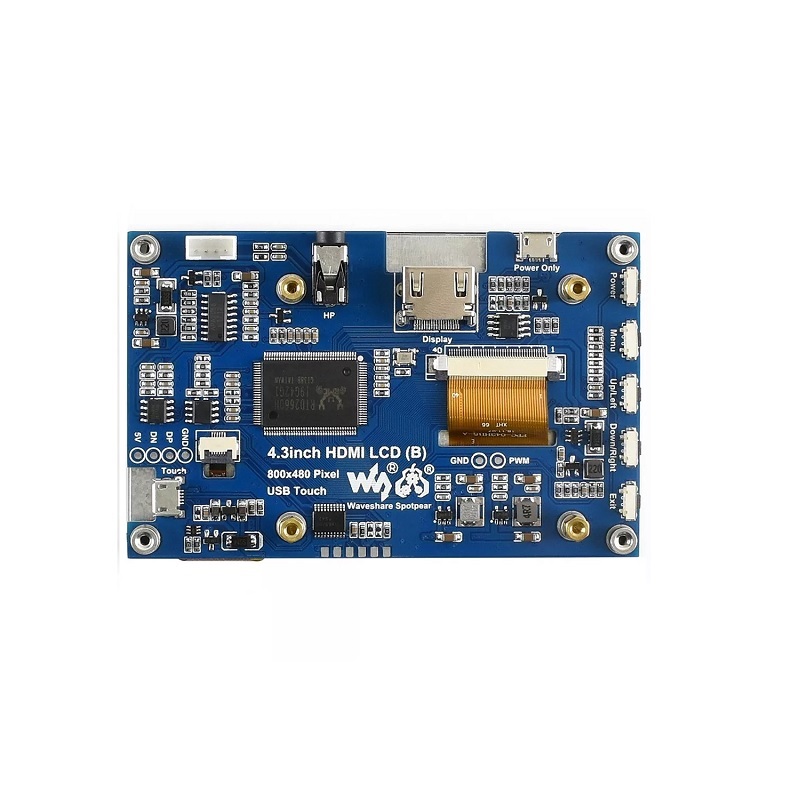

Waveshare 4.3inch Capacitive Touch Screen LCD (B), 800 x 480, HDMI, IPS, Various Devices & Systems Support

This is a Waveshare 4.3inch 800×480 HDMI, IPS Capacitive Touch Screen LCD (H) With Various Systems Support. Toughened glass capacitive touch panel, 6H hardness. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.

Connections:

1. Turn on the backlight switch on the backside of the LCD
2. Connect Touch Interface of LCD to one of the USB ports of PC
3. Connect HDMI (Display) interface of LCD to HDMI port of PC
4. Connect earphones to HP interface or speaker to speaker interface of LCD if require audio output

Features:

1. IPS screen, 800×480 hardware resolution, configurable by software (up to 1920 x 1080)
2. Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers
3. When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
4. When working as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
5. Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
6. 3.5mm audio jack, speaker connector, supports HDMI audio output

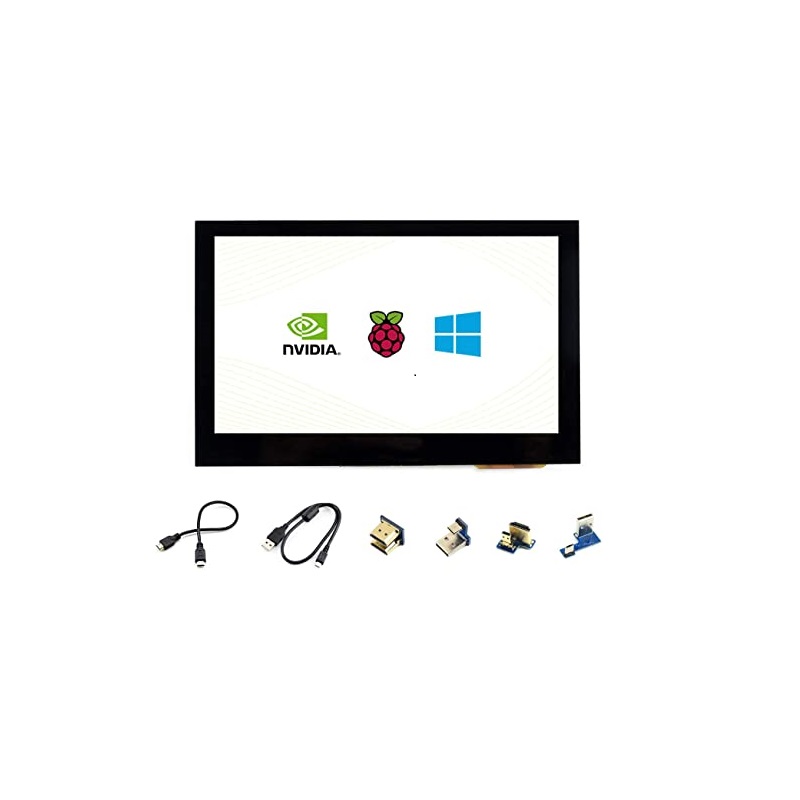

Package Includes:

1 x Waveshare 4.3inch Capacitive Touch Screen LCD (B), 800×480, HDMI, IPS, Various Devices & Systems Support
