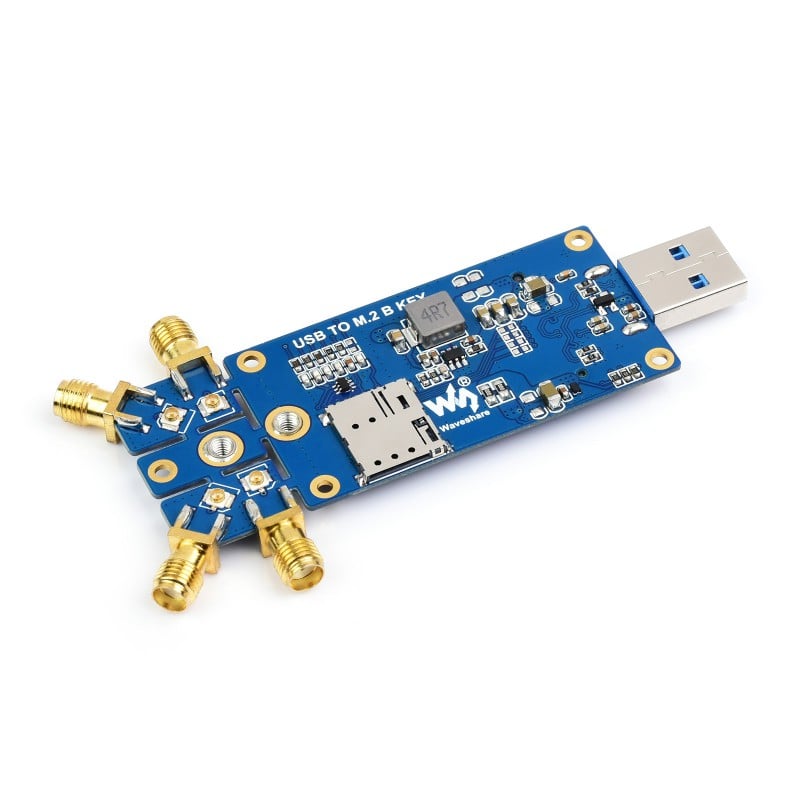

Waveshare 5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface

5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface

Features:

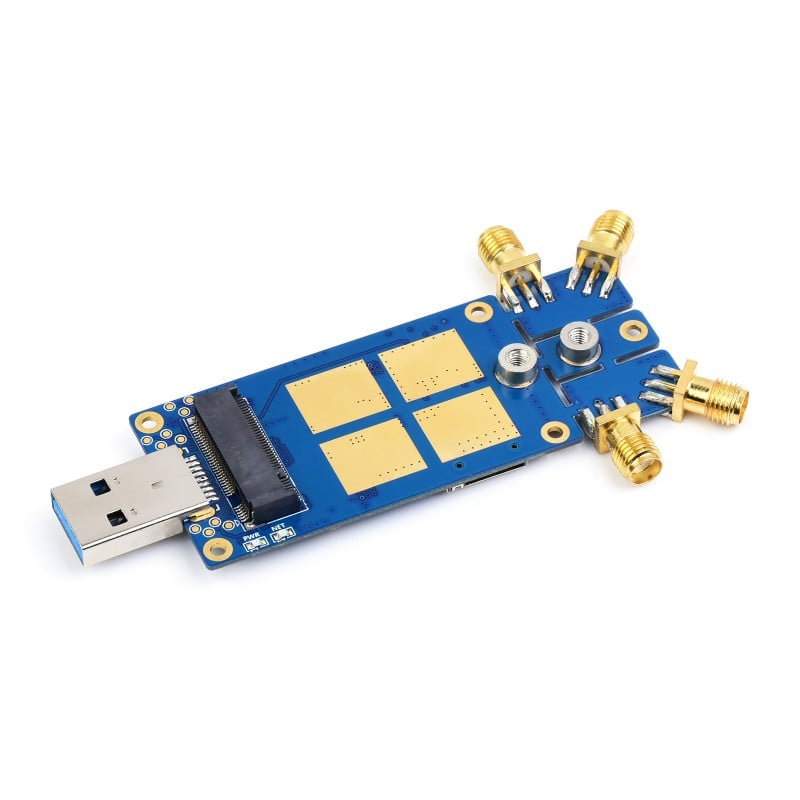

1. Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules
2. Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules

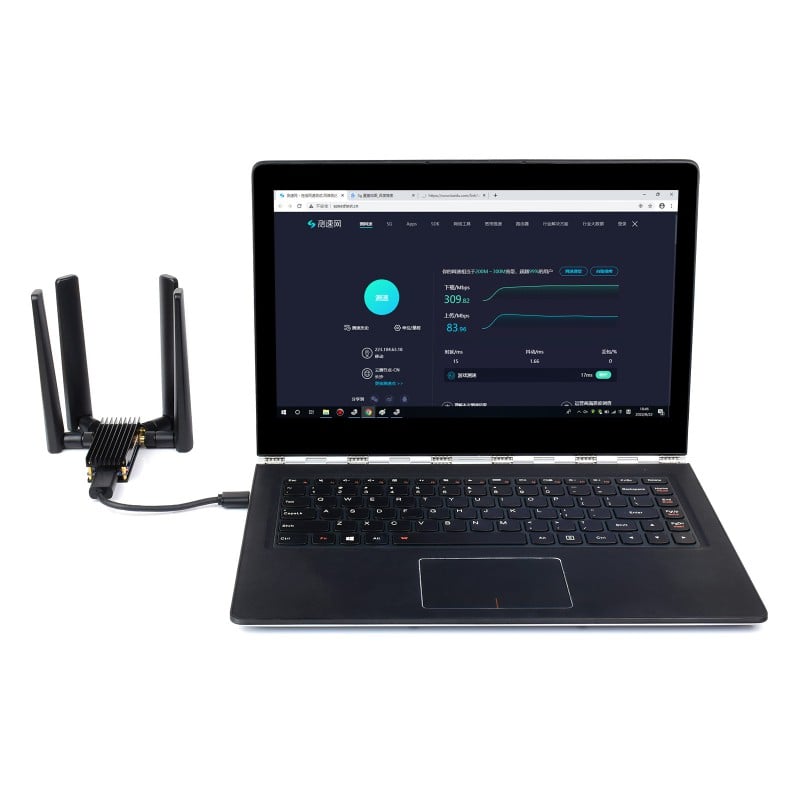

3. USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network
4. 4x SMA antenna connectors, easy to install the antenna

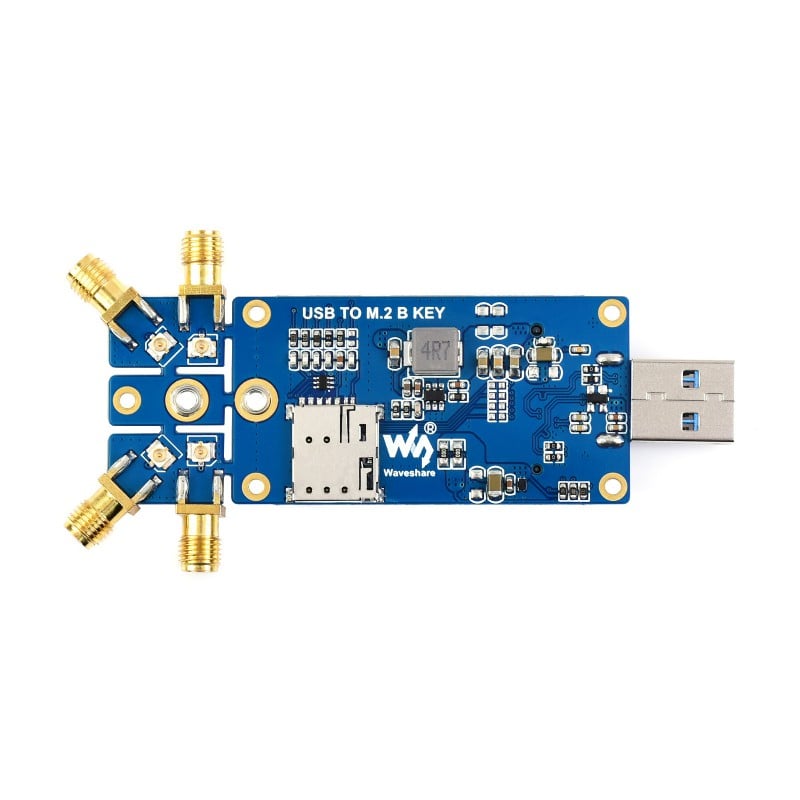

5. Onboard SIM card slot for NANO SIM card
6. Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
7. PCB ENIG process, reserved multi slots and positioning holes for integration

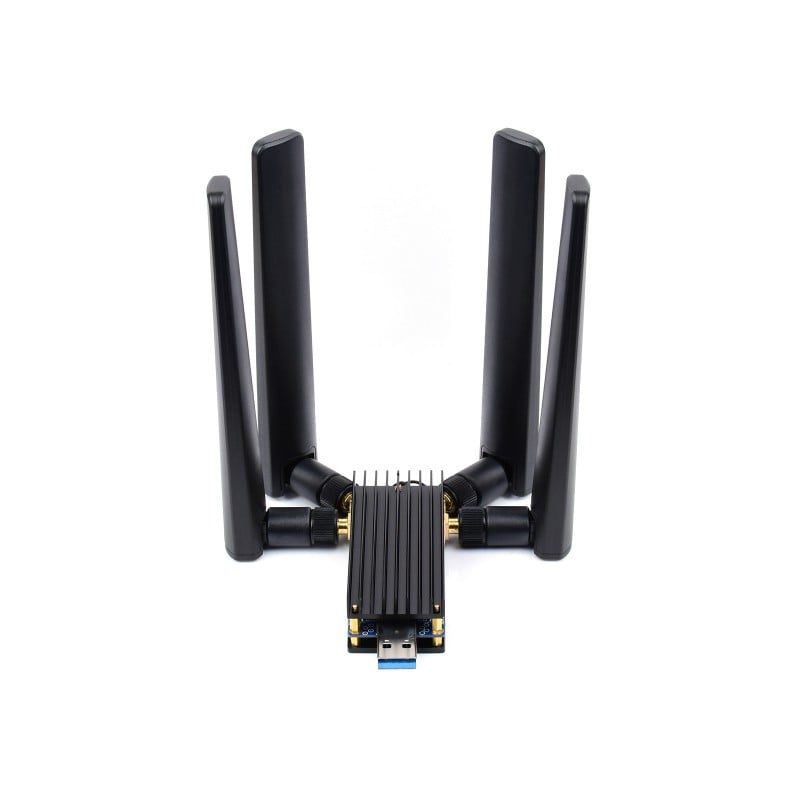

8. Comes with a customized aluminum alloy heatsink, good heat dissipation, and nice-looking, protective and durable

Specifications:

1. Operating systems: Windows/Linux/Android
2. Communication protocols:  TCP / UDP / FTP / HTTP / HTTPS / PING / SMS
3. Dial Up: RNDIS, NDIS, PPP, MBIM
4. Firmware upgrade: Supports firmware upgrade via USB port
5. SIM Card: 1.8V/2.95V
6. Antenna: For 3G/4G/5G/GNSS,
7. Power Supply: 3.135~4.4V
8. Form Factor: M.2
