Waveshare 5inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480

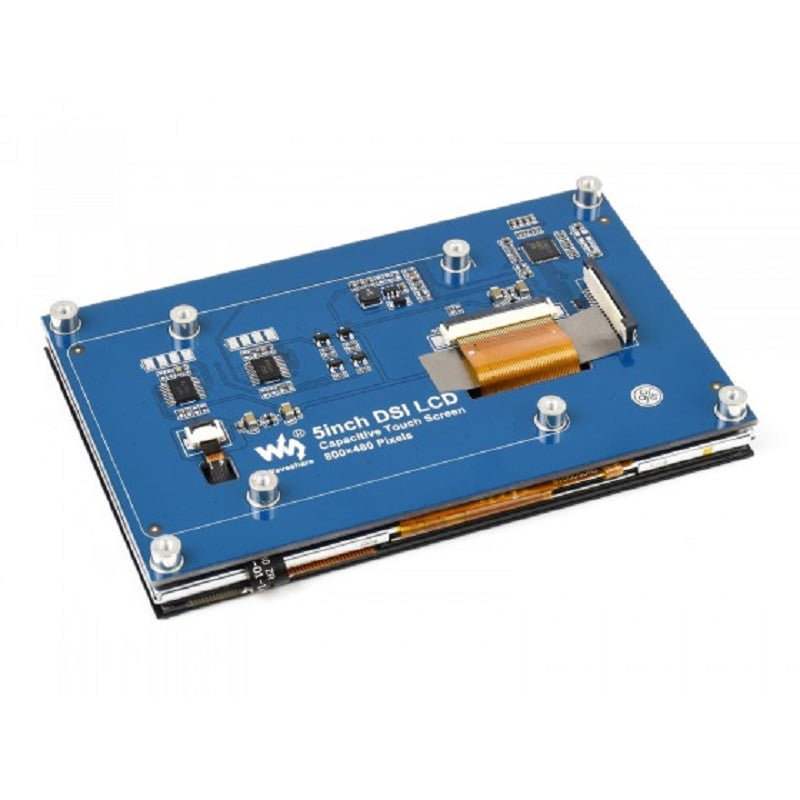

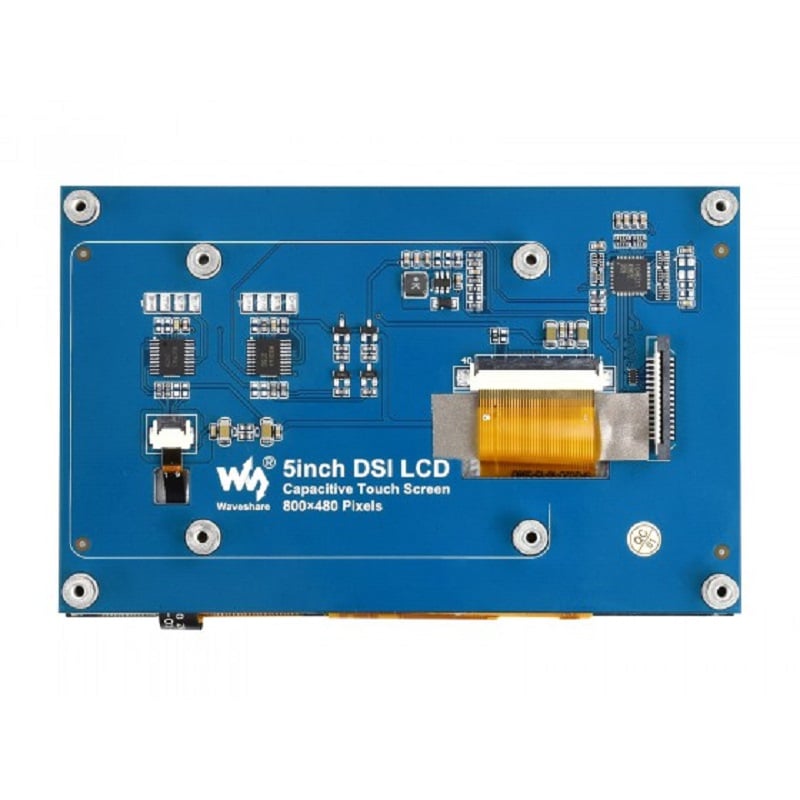

Are you looking 5inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480 so this is for you. Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse. The 800 x 480 display connects to Raspberry Pi via an adapter board that handles power and signal conversion. This is a 5″ Raspberry Pi LCD touchscreen with 800*480 resolution and 108×64.8mm display area. The product supports Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points. The special holes design on the back of the screen is convenient to directly install the Raspberry Pi in the product. There is no need to provide external power for the touchscreen as the Raspberry Pi power supply is adopted. In addition, the screen supports hardware backlight adjustment. The function can be realized by turning the potentiometer on the back of the display.

Features:

1. Capacitive Touchscreen, Support 5 Touch Points.
2. Raspberry DSI Direct Driver
3. Resolutions: 800×480
4. Size: 5inch
5. Display port: DSI
6. Power Consumptions: Low power
7. Touch Type: Capacitive
8. Touch point: 5
9. Touch port: 12C
10. Touch panel: Toughened Glass
11. Adjustable Brightness

Packages Includes:

1 x Waveshare 5inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480

1 x FPC 15PIN 1.0 pitch 50mm (opposite sides)

1 x Screws pack
