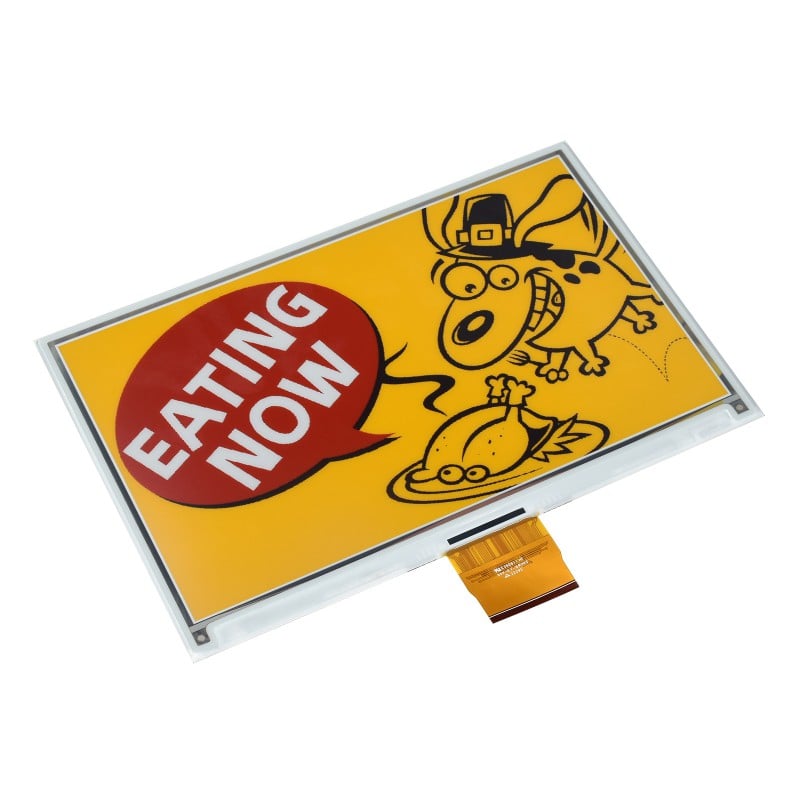

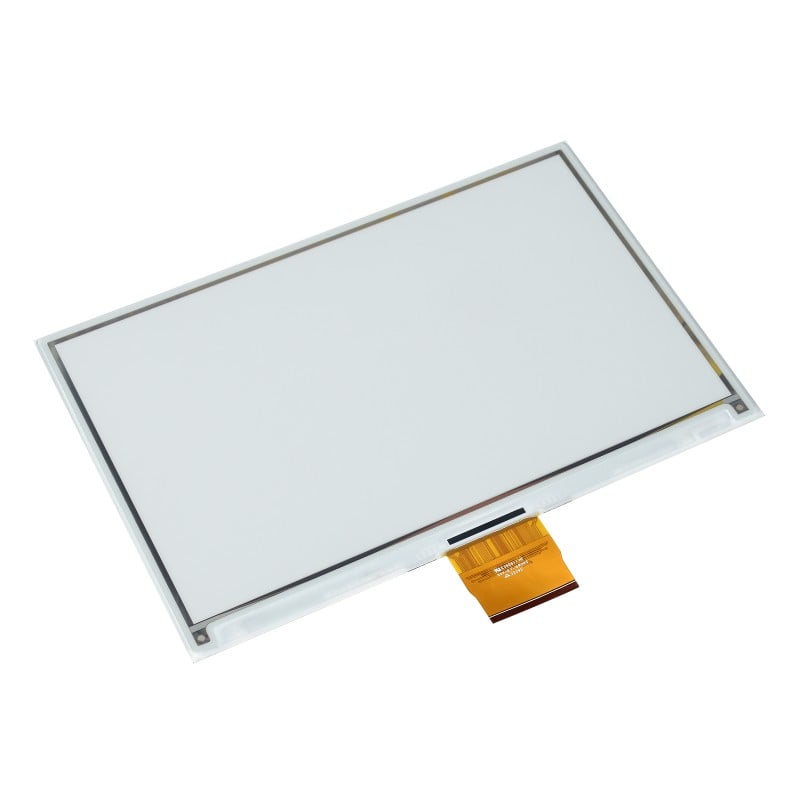

Waveshare 7.3inch e-Paper (G) raw display 800×480 SPI Interface

7.3inch E-Paper (G) Raw Display, 800 × 480, SPI Interface. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in the clear fluid will move to sides of microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect. The power consumption data is the experimental results. The actual power consumption will have a certain error due to the existence of the driver board and the actual use situation. The actual effect shall prevail.

Features:

1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Package Includes:

1 x Waveshare 7.3inch e-Paper (G) raw display
