Waveshare Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96×48 pixels, adjustable brightness and bendable PCB

RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness.

The Waveshare Flexible RGB full-color LED matrix panel is a display panel composed of 96×48 individually addressable RGB LEDs arranged in a 2.5mm pitch on a flexible PCB (printed circuit board). The flexibility of the PCB allows the panel to be bent to fit a variety of curved surfaces, making it ideal for use in creative LED lighting designs or signage.

The LED panel features adjustable brightness, which can be controlled via software or through an external controller. This allows for precise control over the brightness of the display to match different ambient lighting conditions or to create dynamic lighting effects.

Features:

1. 4096 individual RGB LEDs, full-color display, adjustable brightness

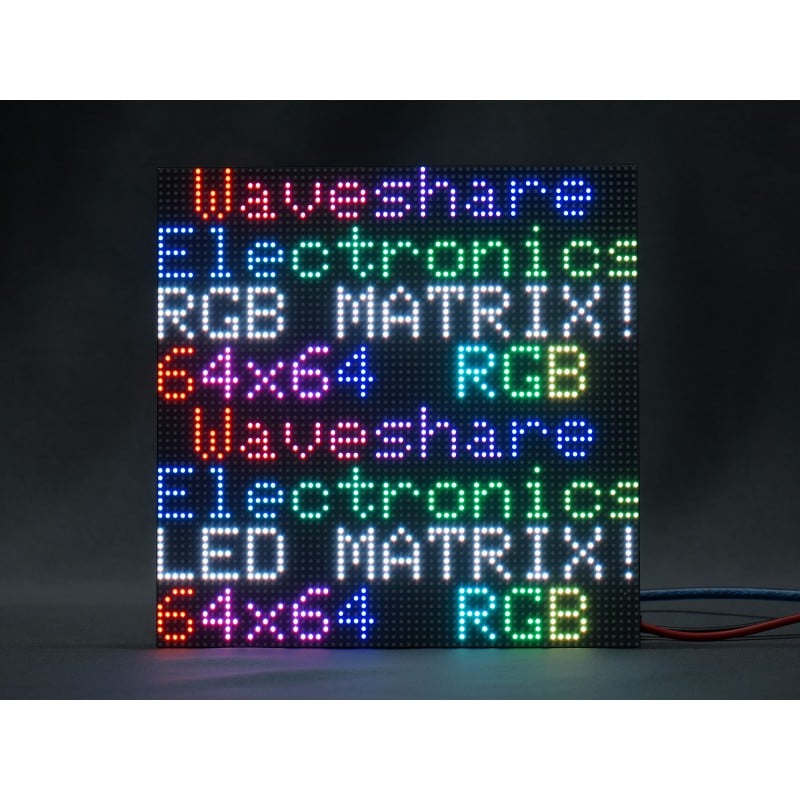

2. 64×64 pixels, 3mm pitch, allows displaying text, colorful images, or animation
3. 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

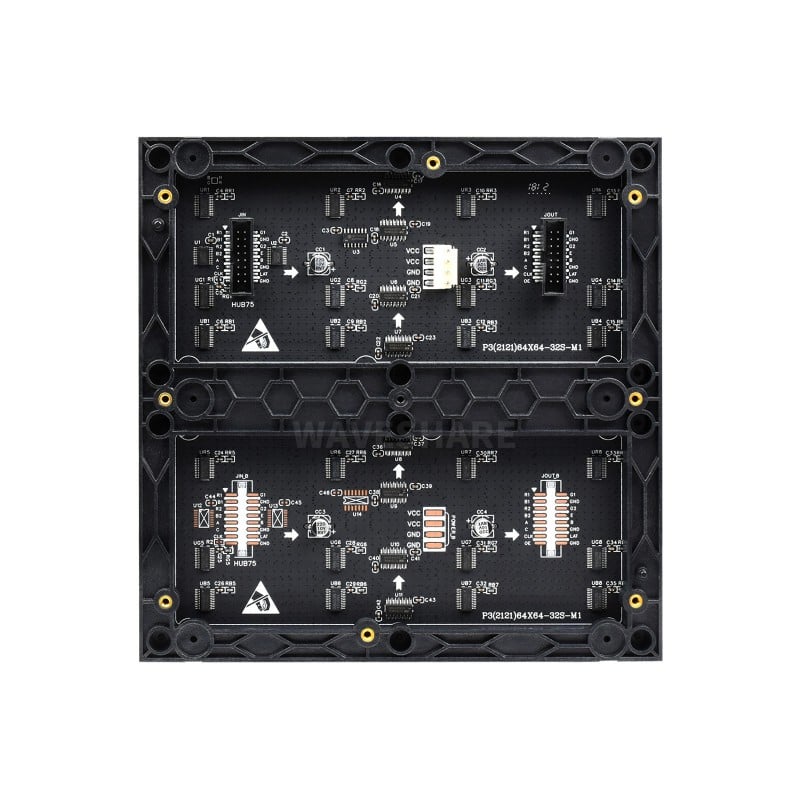

4. Onboard two HUB75 header, one for controller data input, one for output, chain support
5. Provides open-source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on

Specifications:

1. Dimension: 192mm × 192mm
2. Pixels: 64×64=4096 DOTS
3. Pitch: 3mm
4. Pixel Form: 1R1G1B
5. Viewing Angle: ≥160°
6. Control Type: synchronization
7. Driving: 1/32 scan
8. Header: HUB75
9. Power Supply: 5V / 4A (VH4 header input)
10. Power: ≤20W

Package Includes:

1 x Waveshare Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96×48 pixels, adjustable brightness and bendable PCB
