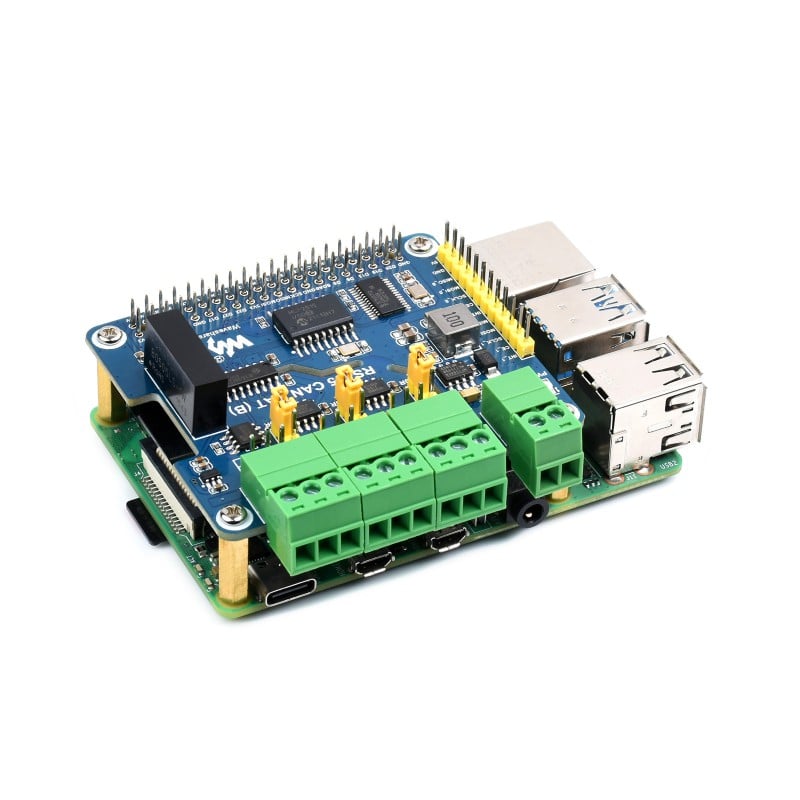

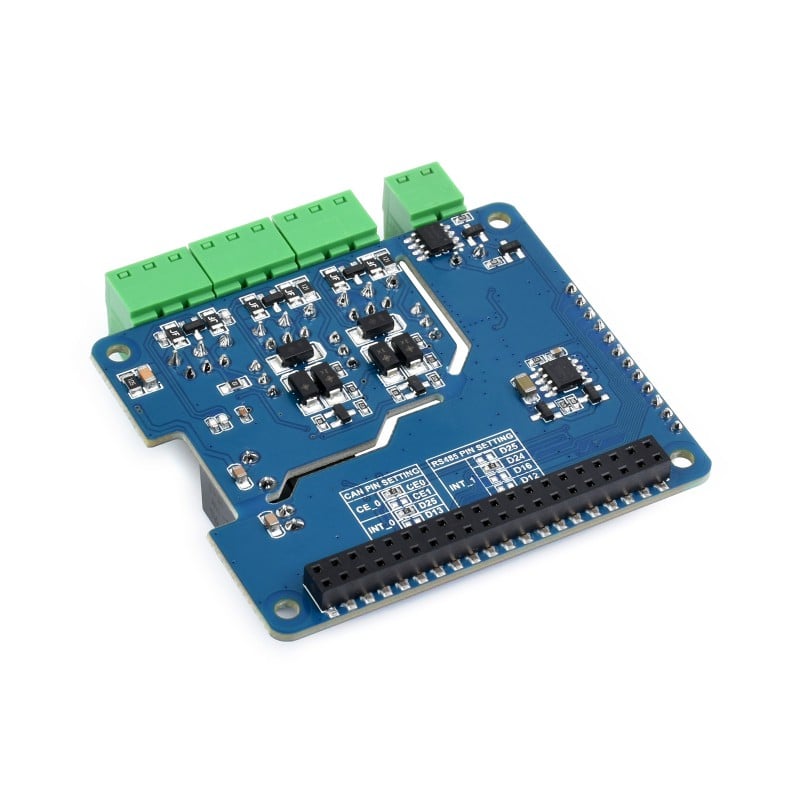

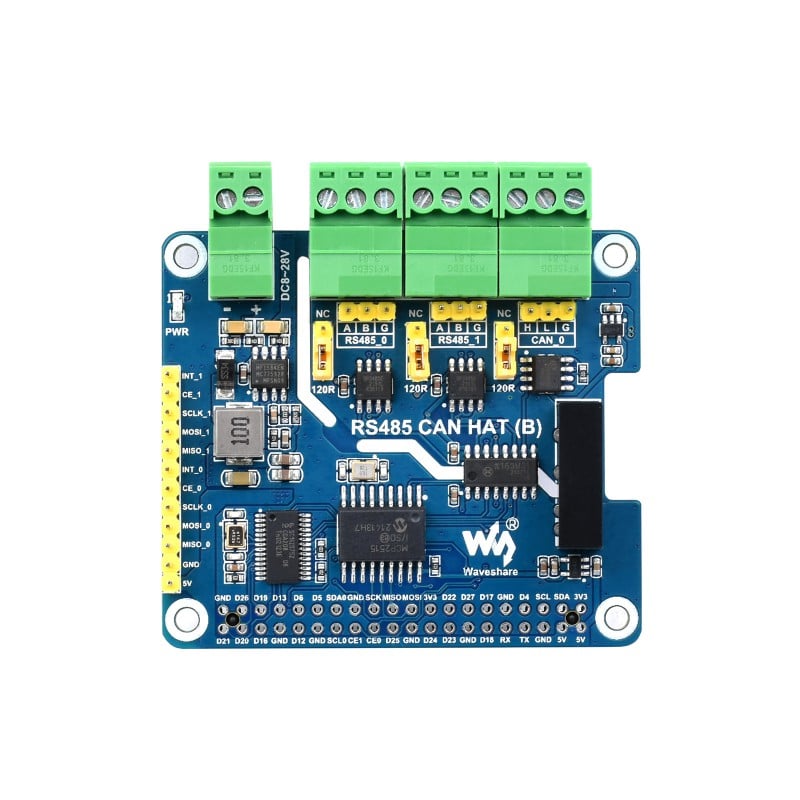

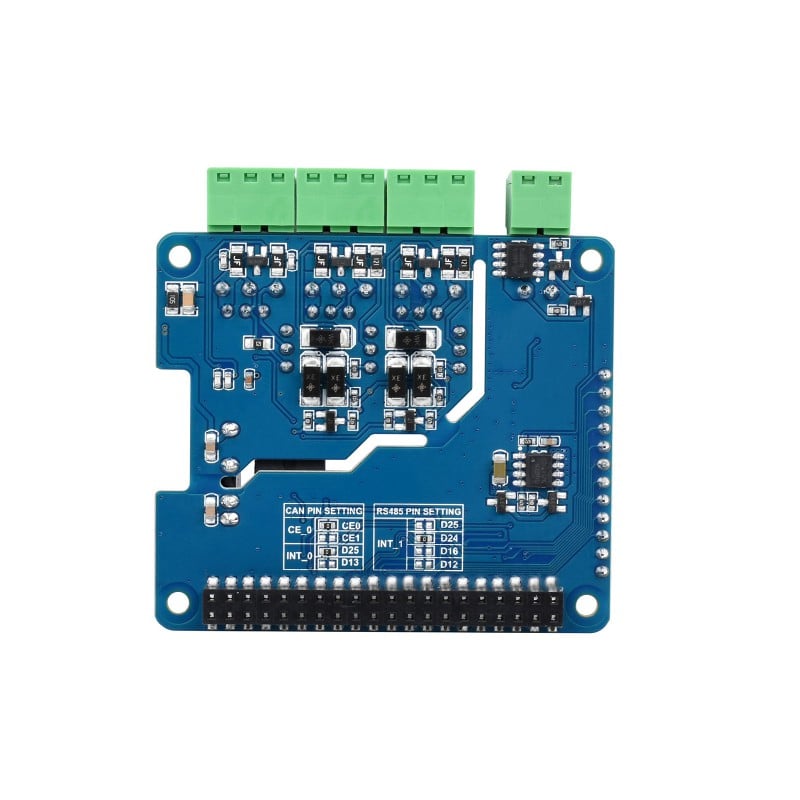

Waveshare Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 And 1-Ch CAN, Multi Protections

Features:

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi, series boards
2. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
3. 2-Ch RS485 adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
4. The onboard power conversion circuit supports an 8~28V wide voltage power supply and can power the Raspberry Pi at the same time
5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
6. Onboard unibody digital isolation, for isolating the signal, reliable and jam-proof, low power consumption
7. Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
8. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock resistance
9. Onboard 120Ω terminal resistor, configured by jumper
10. Onboard terminals and pin headers make, a more convenient connection
11. Breakout SPI control pins, for connecting with host control boards

Specifications:

1. Operating Voltage: 3.3V
2. Expanded Interface: 2-Ch RS485 + 1-Ch CAN
3. Communication Interface: SPI
4. CAN Controller: MCP2515
5. CAN Transceiver: SIT65HVD230DR/SN65HVD23D
6. CAN Baud Rate: ≦1Mbps
7. UART Expansion Chip: SC16IS752
8. RS485 TRANSCEIVER SP3485
9. RS485 Baud Rate: 300~921600 bps
10. Power Supply External power supply terminal OR Raspberry Pi
11. External Power Supply Range: DC 8~28V

Package Include:

1 x Waveshare Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections
