Waveshare RGB full-color LED matrix panel, 2.5mm Pitch, 64×64 pixels, adjustable brightness

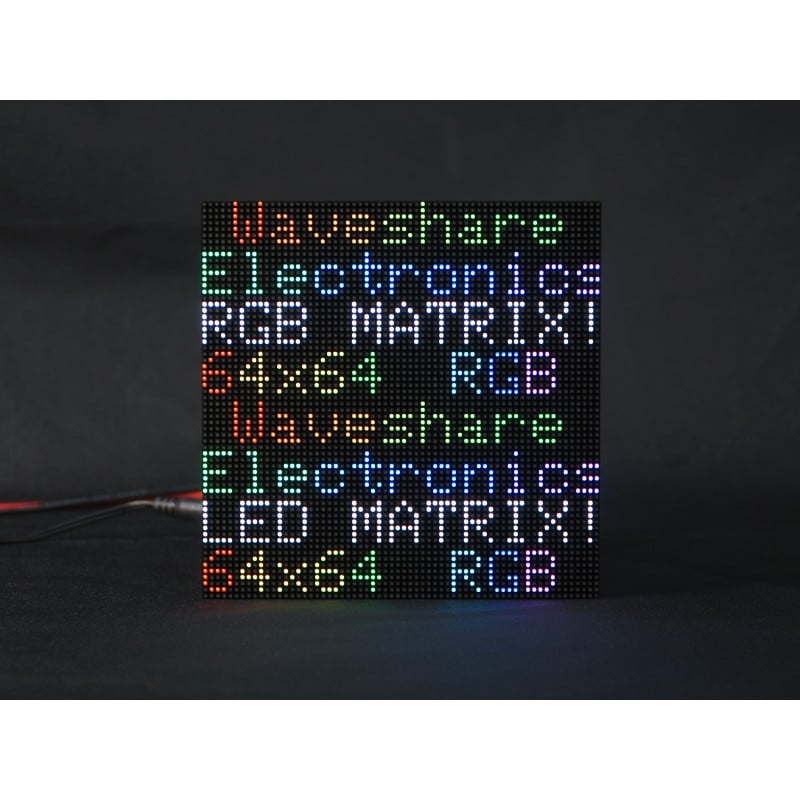

This product is a 64 × 64 full-color LED matrix display, with 4096 RGB LEDs on board, 2.5mm pitch, supports Raspberry Pi, Arduino, ESP32, etc., provides supporting open source demos and tutorials, suitable for makers or electronics enthusiasts getting started Learning, or DIY secondary development into other desktop or wall-mounted display applications.

Features:

1. 4096 individual RGB LEDs, full-color display, adjustable brightness
2. 64 × 64 pixels, 2.5mm pitch, allows displaying text, colorful images, or animation
3. 160 × 160mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

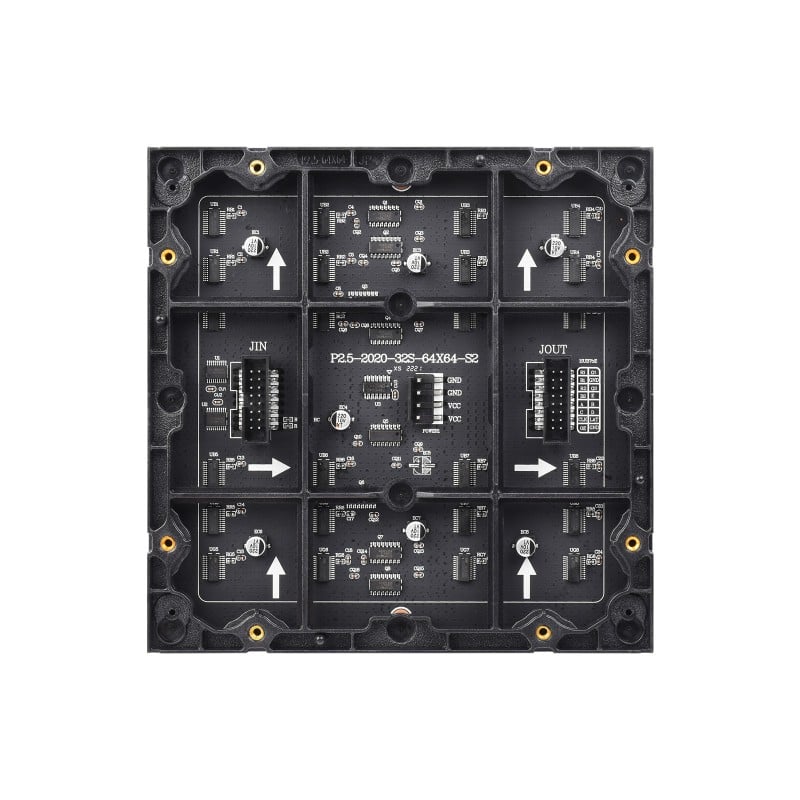

4. Onboard two HUB75 headers, one for controller data input, one for output, chain support
5. Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications:

1. Dimension: 160mm × 160mm
2. Pixels: 64×64=4096 DOTS
3. Pitch: 2.5mm
4. Pixel Form: 1R1G1B
5. Viewing Angle: ≥140°
6. Control: TYPE synchronization
7. Driving: 1/32 scan
8. Header: HUB75
9. Power Supply: 5V / 4A (VH4 header input)
10. Power: ≤20W

Package Includes:

1 x Waveshare RGB full-color LED matrix panel, 2.5mm Pitch, 64×64 pixels, adjustable brightness
