Waveshare Rotation Sensor
🔍 Zoom

Waveshare Rotation Sensor

SKU: RZ24314416 Brand: Arduino Category: Resistors & Passive Components
₹ 366.85
Out of Stock

Buy Waveshare Rotation Sensor online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 359.51
11 – 30 3% ₹ 355.84
31 – 50 4% ₹ 352.18
51 – 100 5% ₹ 348.51

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Arduino
Subcategory Rotary Encoders
SKU RZ24314416

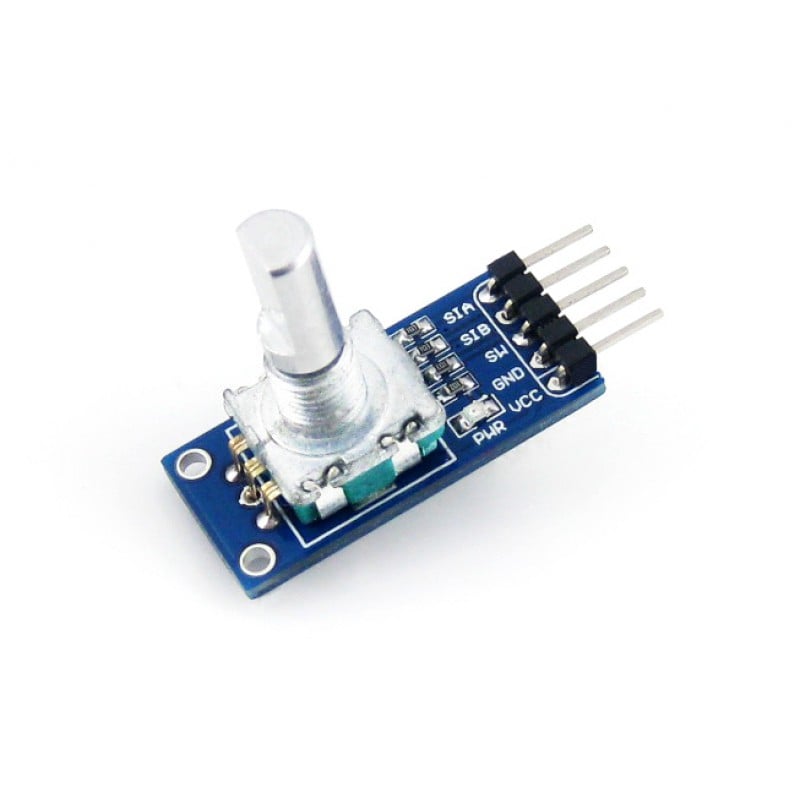

Knob in the form of an encoder with a button that allows you to create a simple user interface. The module sends a digital signal on the SIA and SIB pins, depending on the direction of rotation. It works with voltages from 3 V to 5.3 V.

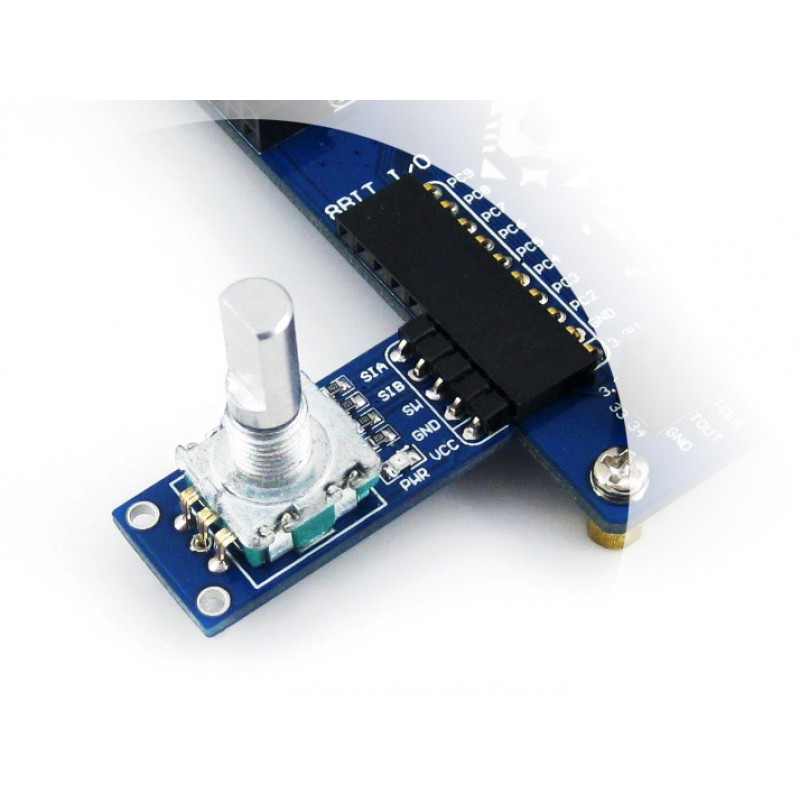

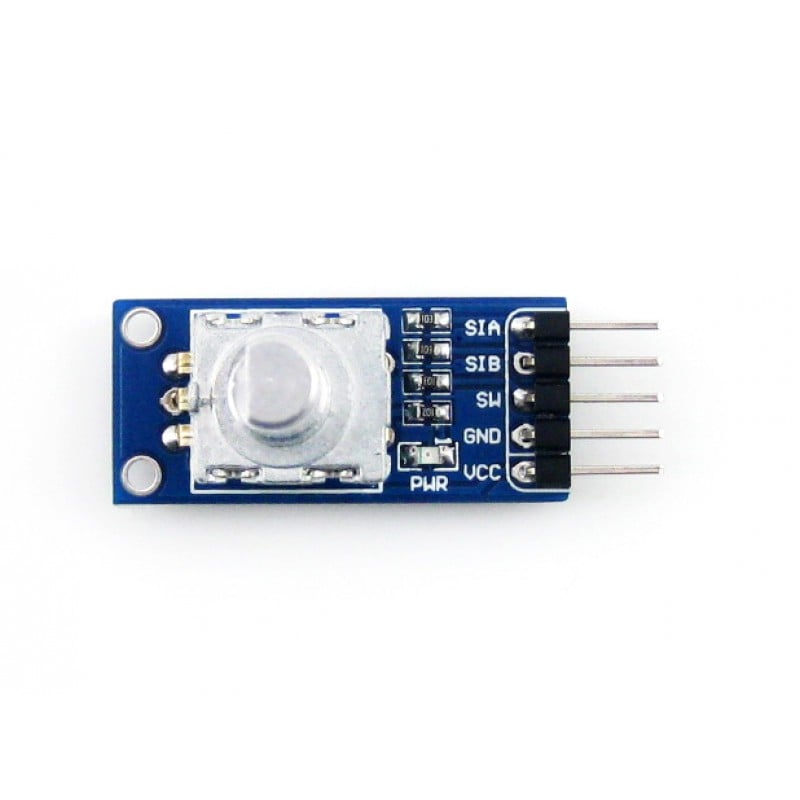

The sensor has a 5 pin connector with digital outputs SIA, SIB and SW to be attached to the pin of the microcontroller, e.g. Arduino.

Operating principle:
Incremental encoder is a kind of rotation sensor for translating the rotary displacement into a sequential of digital pulse signal. The displacement can be gained by counting the number of the pluses outputted in the course of clockwise or anticlockwise rotation. Comparing with the potentiometer, the rotary counter has no limit for counting. So, there is a reset button provided to
reset the counter to the initial state, restarting at 0


Features:

  1. It detects the clockwise and counterclockwise rotation
  2. The number of steps in 360°: 20 steps
  3. Button in the knob
  4. Module dimensions: 32 x 15 mm

Package Includes:

1 x Rotation Sensor
1 x 5-pin custom connector jumper wire
