Waveshare RS232 To RS485 Converter (B), Active Digital Isolator, Rail-Mount support, 600W Lightningproof & Anti-Surge

The RS232 TO RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial Automation and IoT

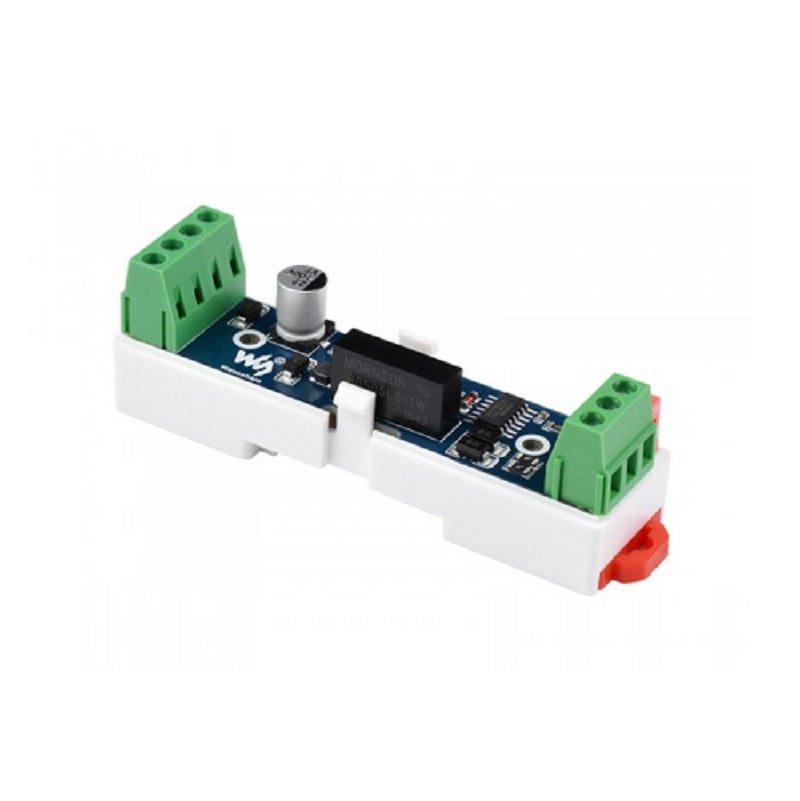

RS232 TO RS485 (B) is an industrial-grade rail-type active optoisolated RS232 to RS485 converter.

Applications:

1. Industrial Automation
2. Access control
3. Self services banking
4. Parking sevices
5. highway toll stations
6. Attendance system

Features:

1. Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal
2. Stable transmission at the rate of 300~115200bps
3. Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
4. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
5. Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
6. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
7. Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch
8. The onboard power supply screw terminal, allows 6V~36V DC wide range input
9. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Specifications:

1. Product Type: Active electromagnetic isolated RS232 TO RS485 asynchronous bi-directional converter
2. Power supply: 6~36V DC
3. Baud-rate: 300 ~ 115200bps
4. Device Port: RS232/RS485 standard compatible

RS232:

1. Connector: screw terminal
2. Transmission distance: about 15m
3. Transmission mode: point-to-point

RS485:

1. Connector screw: terminal
2. Direction control Hardware automatic control
3. Protection 600W: lightningproof and surge-suppress, 15KV ESD protection
4. Terminal resistor: 120R, enabled/disabled via switch
5. Transmission Distance: About 1.2km
6. Transmission Mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

Appearance:

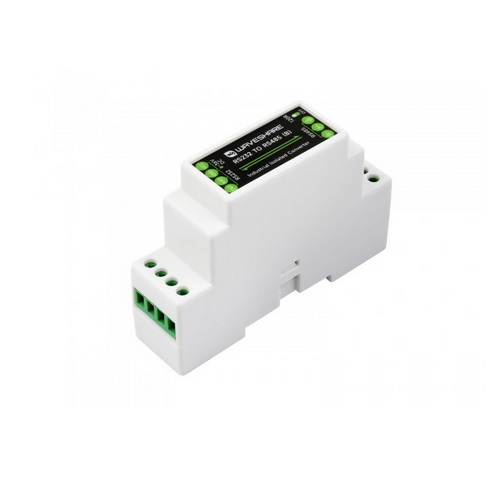

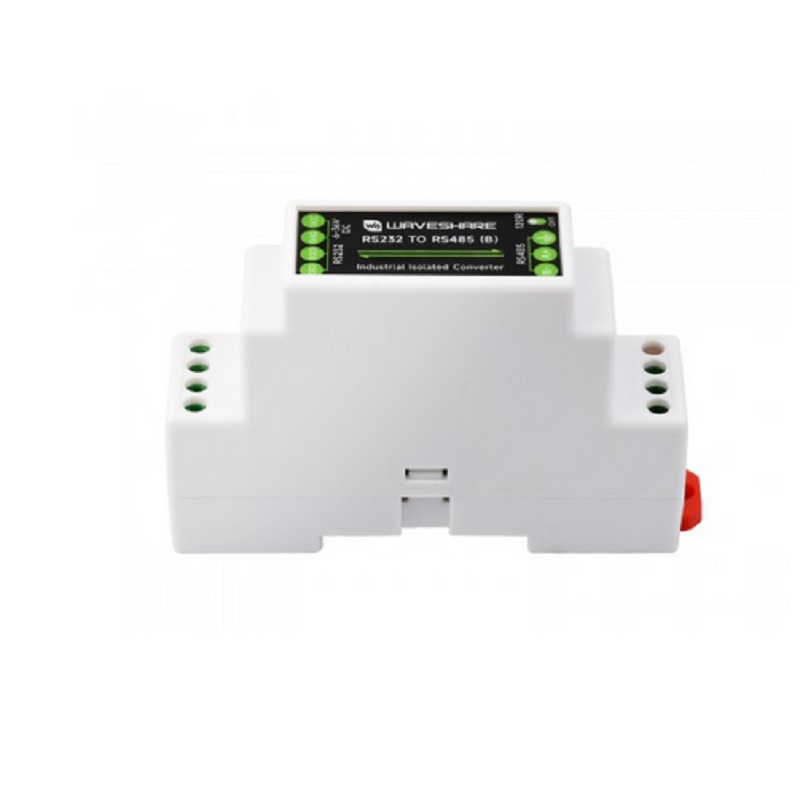

1. Case: Rail-mount ABS case
2. Dimensions: 91.6 × 23.3 × 58.7mm

Packages Includes:

1 x Waveshare RS232 To RS485 Converter (B), Active Digital Isolator, Rail-Mount support, 600W Lightningproof & Anti-Surge
