Waveshare Solar Power Manager (C), Supports 3x 18650 Batteries, Multi Protection Circuits

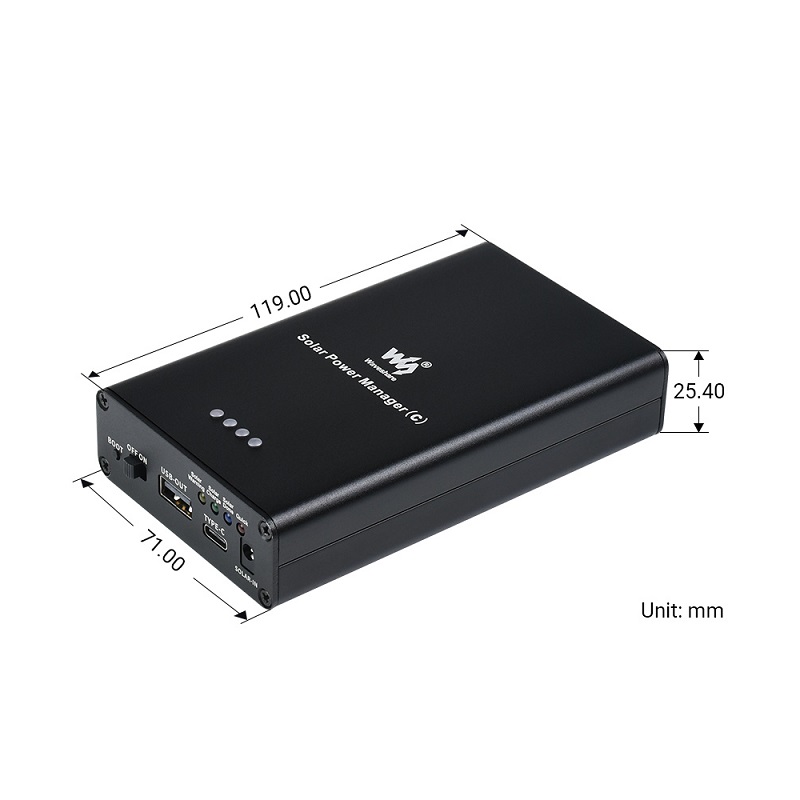

Do you want to build your own power bank by using your 18650 Li-Ion battery cells? Then you should take look at this 2 in 1  Solar Power Manager (C) from waveshare. This completely assembled PB in a strong aluminium case with a stylish look is compatible with dynamic 6V~24V solar panels inputs. It can recharge the 3 x 18650 rechargeable Li-ion batteries through a solar panel or via a USB TYPE-C port by any 5V DC power adapter. On the output side, it provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP) which can charge the Mobile phone in a fast-charging Mode @15W

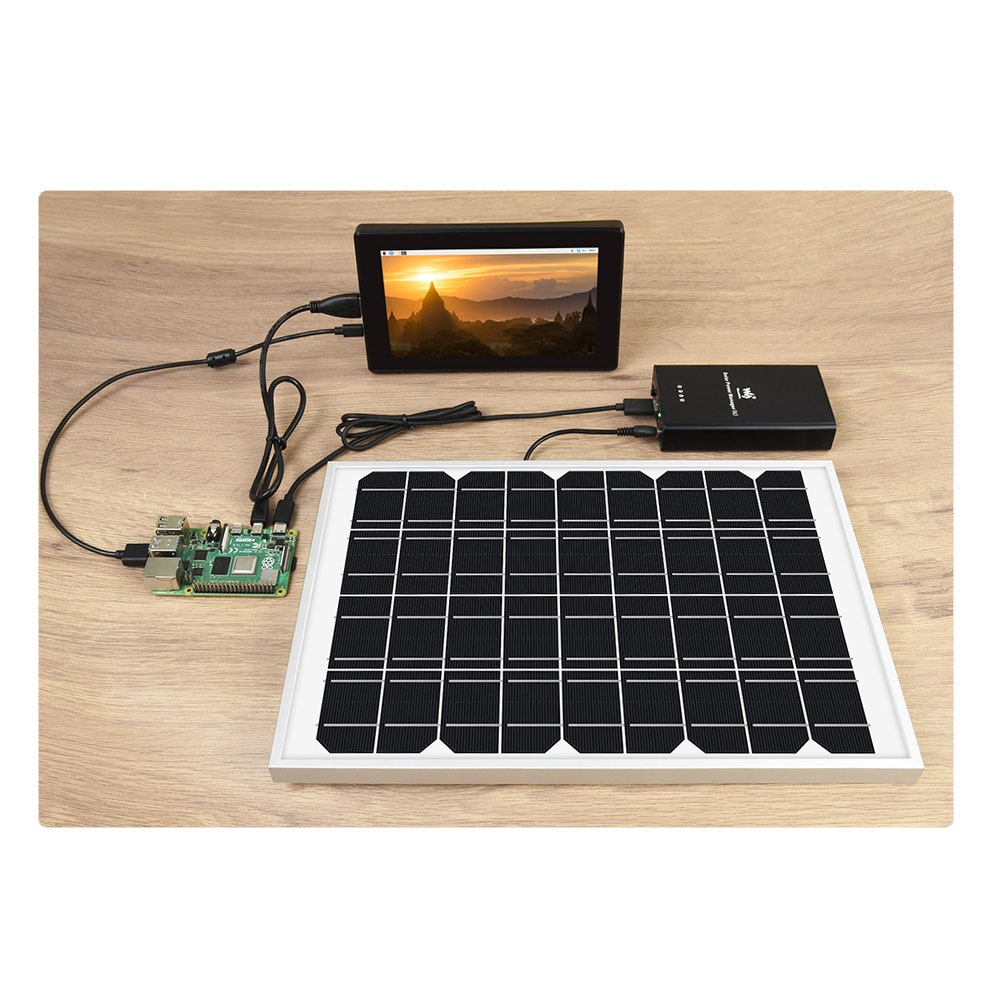

The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it is able to keep operating with high efficiency, stability, and safety. It is suitable for solar-powered, low-power IoT, and other environmental protection projects.

Note: This Power Bank is compatible with 3 x 18650 Lithium-ion cells. (Not included in Package)

Recommended Cell for High-Quality performance:

Features:

1. Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
2. Flexible battery recharging: from solar panel or USB TYPE-C power adapter
3. Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
4. Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
5. An onboard aluminium electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
6. Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
7. Several LED indicators, for monitoring the status of solar panel and battery
8. Multi-protection circuits: overcharge / over-discharge / reverse-proof / overheat / over current, stable and safe to use

⚠ Caution: DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosions may occur if you try to charge a non-rechargeable battery.

Package Includes:

1 x Waveshare Solar Power Manager (C) Case

1 x DC-002 connector to connect the solar panel output

1 x Screw Driver fitting screws
