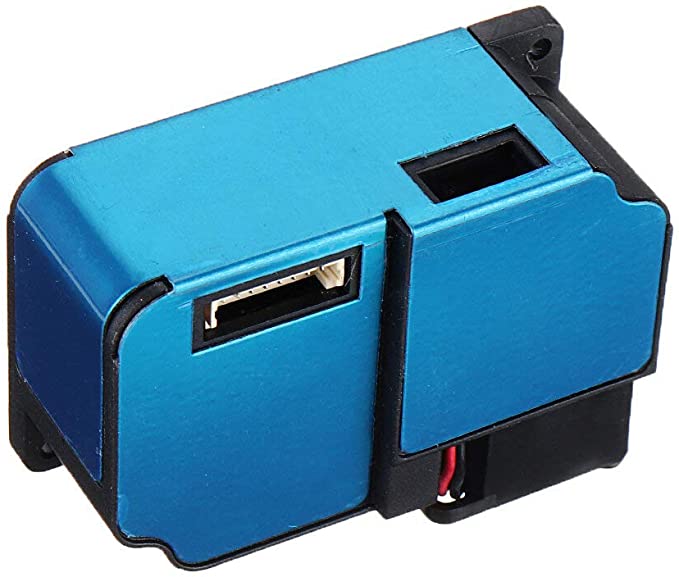

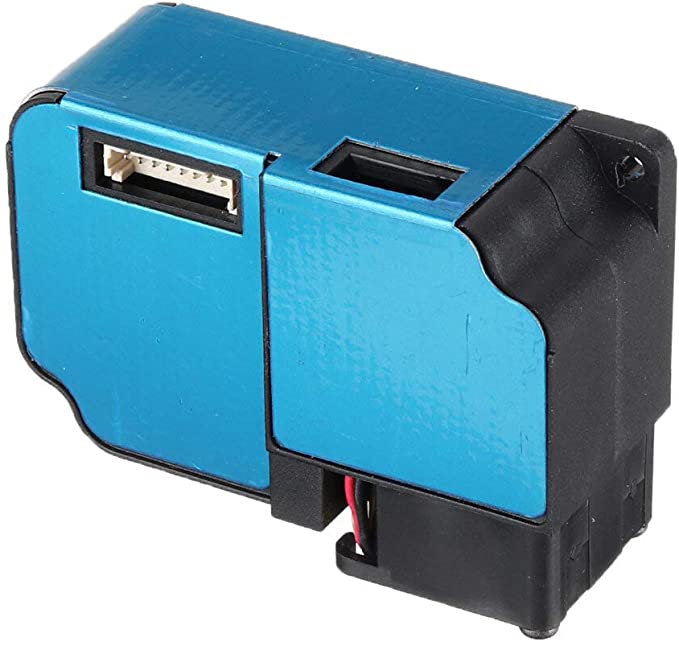

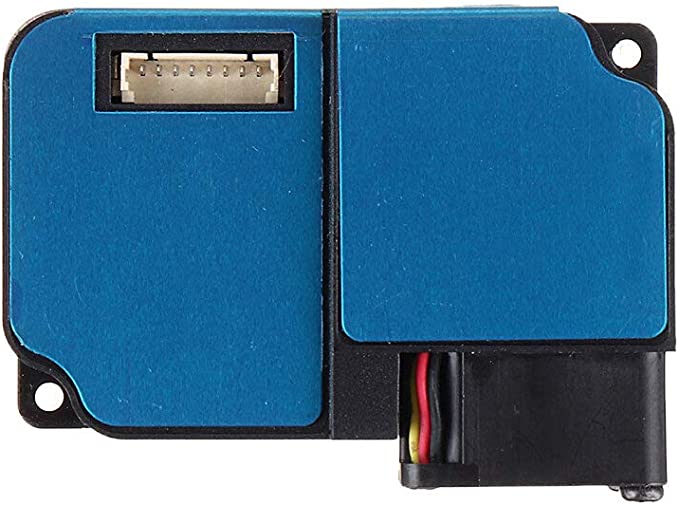

Winsen ZH03B Particles Sensor PM2.5 Dust Sensor

ZH03 Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with UART output & analog output.

Applications:

ZH03B PM2.5 Dust Sensor Particle sensor is widely used in air quality monitoring equipment, air purifiers, ventilation systems, air conditioner, and smart home equipment.

Features:

1. PM2.5 dust sensor
2. Calibrated before leaving factory
3. Output: PWM and UART, DAC

Specifications:

1. Model ZH03/ZH03A/ZH03B
2. Detection Gas PM1.0, PM2.5, PM10
3. Output UART OUTPUT (3V TTL), PWM output
4. Working Voltage 5V±0.1V
5. Working Current <120mA
6. Dormancy current <10mA
7. Response Time T90≤45s
8. Working Humidity 0~85%RH(no condensation)
9. Working Temperature -10~50℃
10. Storage Temperature -30~70℃
11. Life Span 3 years (in air)
12. Dimension 50×32.4x21mm(LxWxH)

Packages Includes:

1 x Winsen ZH03B Particles Sensor PM2.5 Dust Sensor
