XT-90 High Current Connector Male-Female Pair

SKU: RZ24338417 Category: Connectors & Cables

₹ 86.25

Out of Stock

Buy XT-90 High Current Connector Male-Female Pair online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 84.53
11 – 30	3%	₹ 83.66
31 – 50	4%	₹ 82.80
51 – 100	5%	₹ 81.94

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Connectors & Cables

Subcategory Cables (General)

SKU RZ24338417

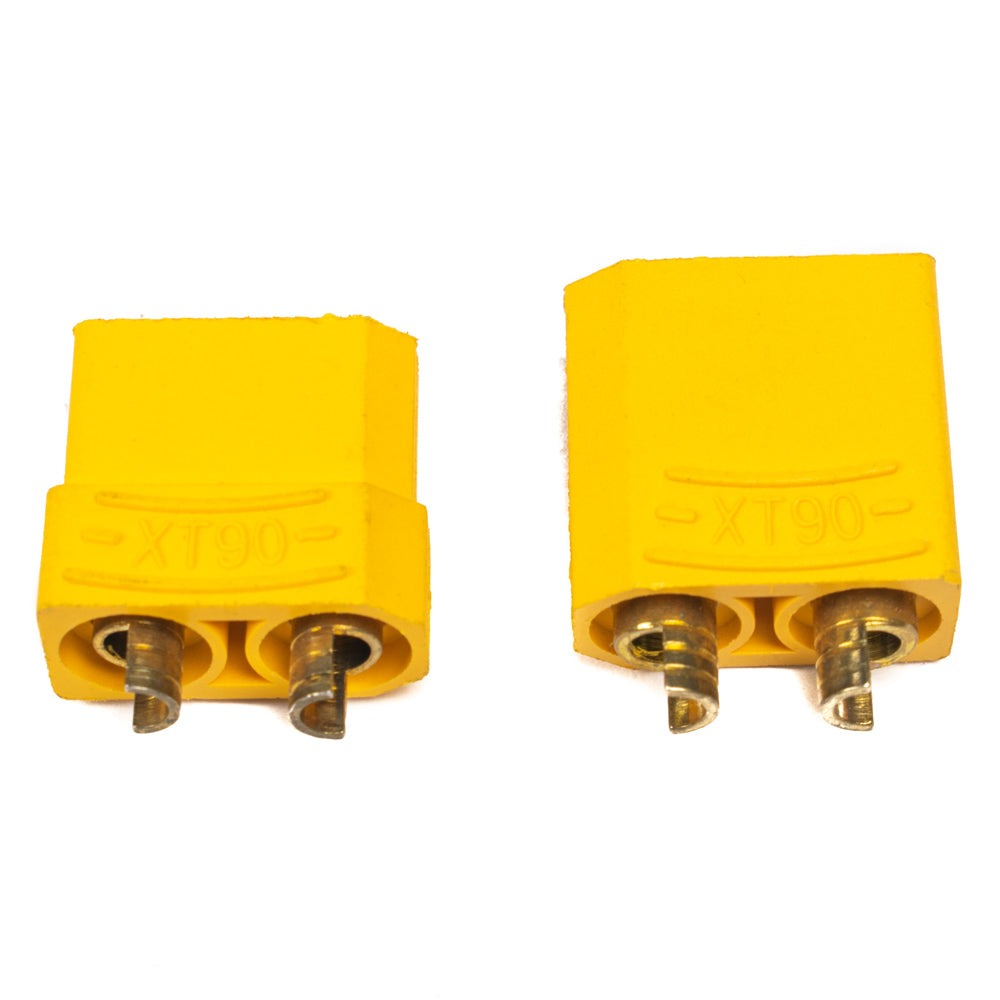

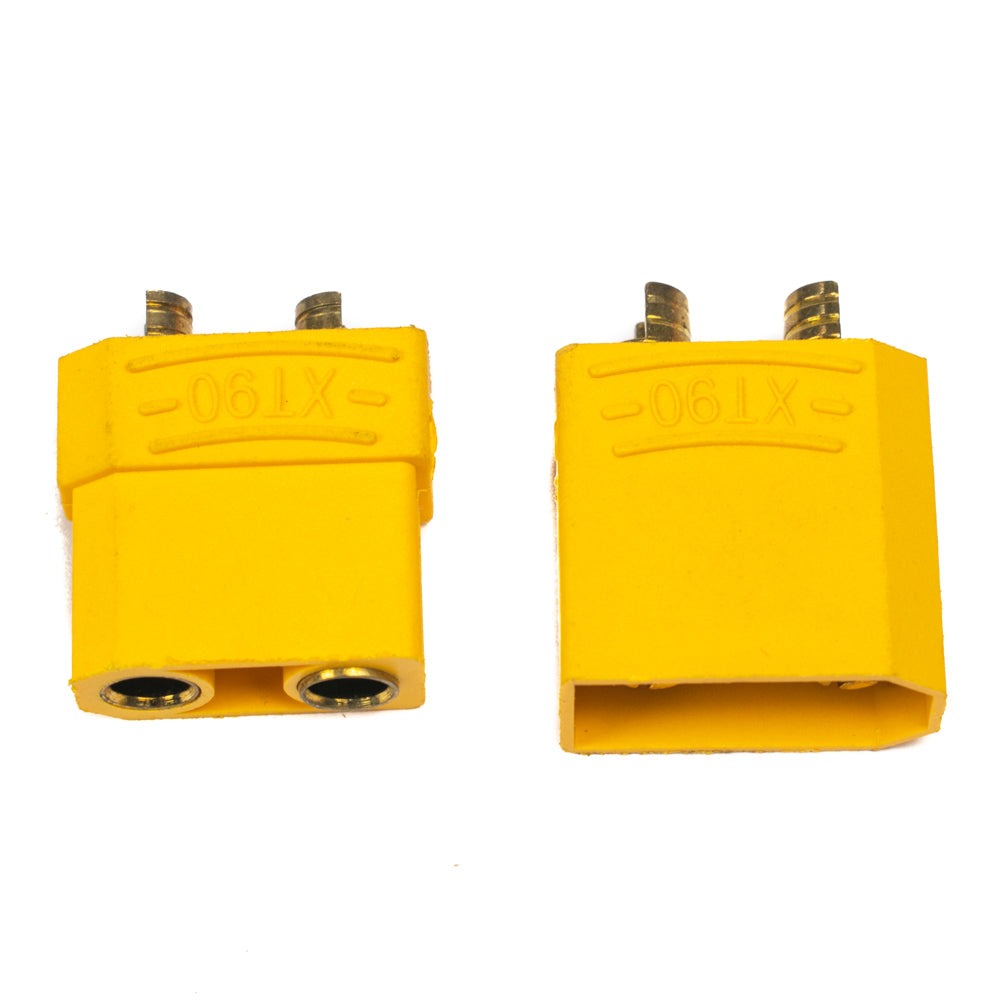

XT-90 connector has a female end for the battery and a male end for the charger. The design of the jacket's rear concave shape can allow the shrink tube to be placed more deeply, protecting junctions from water vapour and making them easier to solder. Precision mould processing, close connection with no gaps, and leakproof. Clear "+" and "-" signs, and larger contact area, 4.5mm banana plug, can handle a continuous current of 90A, 120A high current peak. The new type housing and groove slot design make the connection stronger and eliminate any mistakes. Non-slip insulator that is simple to connect. The tail's 180-degree outward shape allows wire to be soldered easily.

Features

Housing shape provides protection against shorting and reverse polarity
Can accept up to 8AWG wires
Semicircular solder terminals make it easy to install wires
Able to sustain 90A+ continuous current.

Specifications

Rated Operating Voltage	500V DC
Contact Material	Brass
Current Handling Capacity	90A
Allowed Wire Gauge	14 ~ 12 AWG
Contact Plating	Gold flash
Operating Temperature Range	-20°C to 120°C
Flammability Rating	UL94V-0
Gender	Mail-Female Pair
No. of Contact Points	2
Connector Type	XT90
Metal Connector Size	4.5mm
Color	Yellow
Dimension	38.6x21.5x11.2
Country of Origin	China
