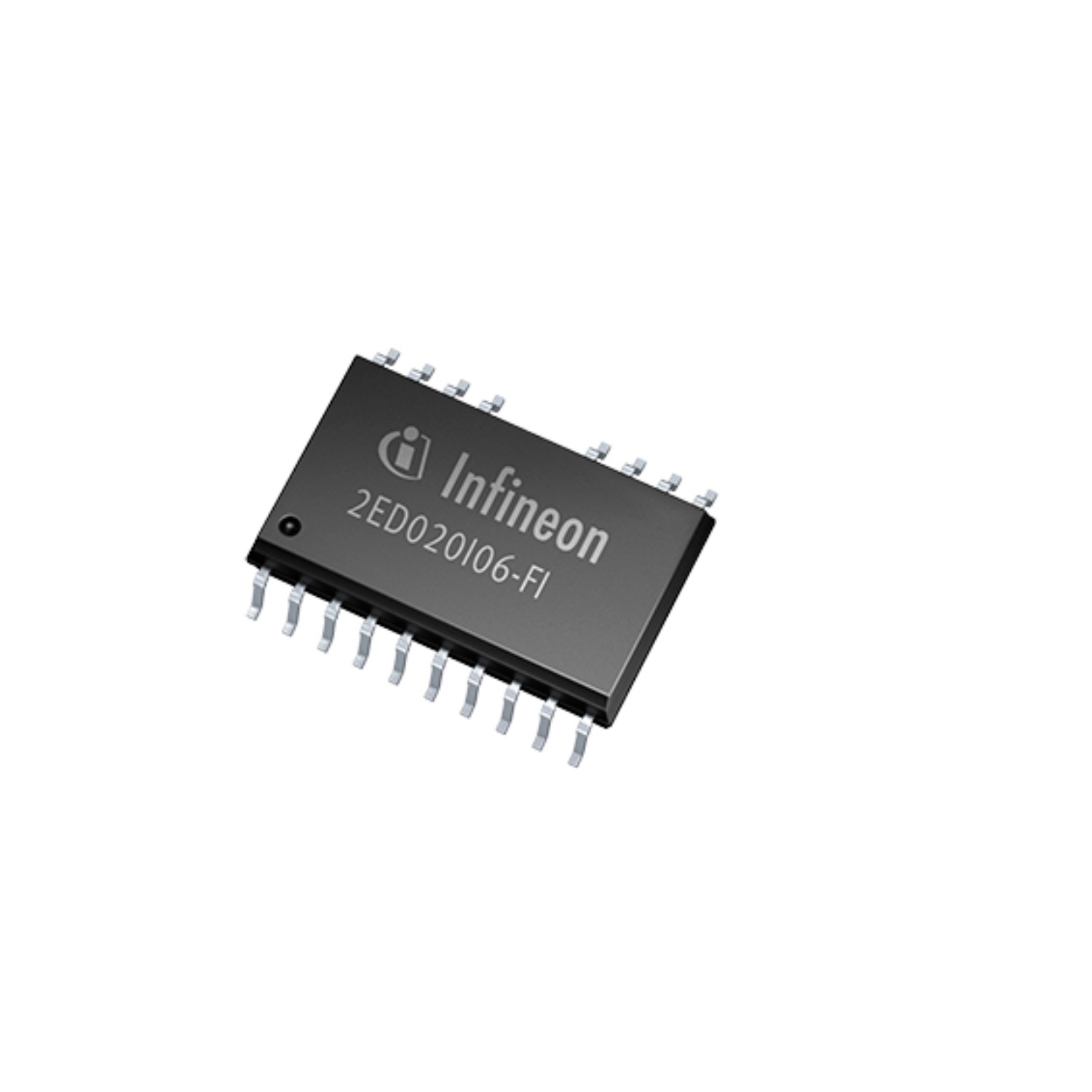

2ED020I06-FI – 650 V Dual IGBT Half-Bridge Gate Driver IC

SKU: 1072493
In Stock


  1.  Fully operational to ±650V
  2. Power supply operating range from 14 to 18 V
  3.  Gate drive currents of +1 A / –2 A
  4.  Matched propagation delay for both channels
  5.  High dV/dt immunity
  6.  Low power consumption
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free



The 2ED020I06-FI is a high voltage, high-speed power MOSFET and IGBT driver with interlocking high and low side referenced outputs. The floating high side driver may be supplied directly or by means of a bootstrap diode and capacitor. In addition to the logic input of each driver, the 2ED020I06-FI is equipped with a dedicated shutdown input. All logic inputs are compatible with 3.3 V and 5 V TTL. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high-frequency applications. Both drivers are designed to drive an N-channel power MOSFET or IGBT which operate up to 650V.


  1.  Floating high side driver
  2.  Undervoltage lockout for both channels
  3.  3.3 V and 5 V TTL compatible inputs
  4. CMOS Schmitt-triggered inputs with pull-down
  5.  Non-inverting inputs
  6.  Interlocking inputs
  7.  Dedicated shutdown input with pull-up
  8.  RoHS compliant

Package Includes:

1 x 2ED020I06-FI – 650 V Dual IGBT Half-Bridge Gate Driver IC
