Product details

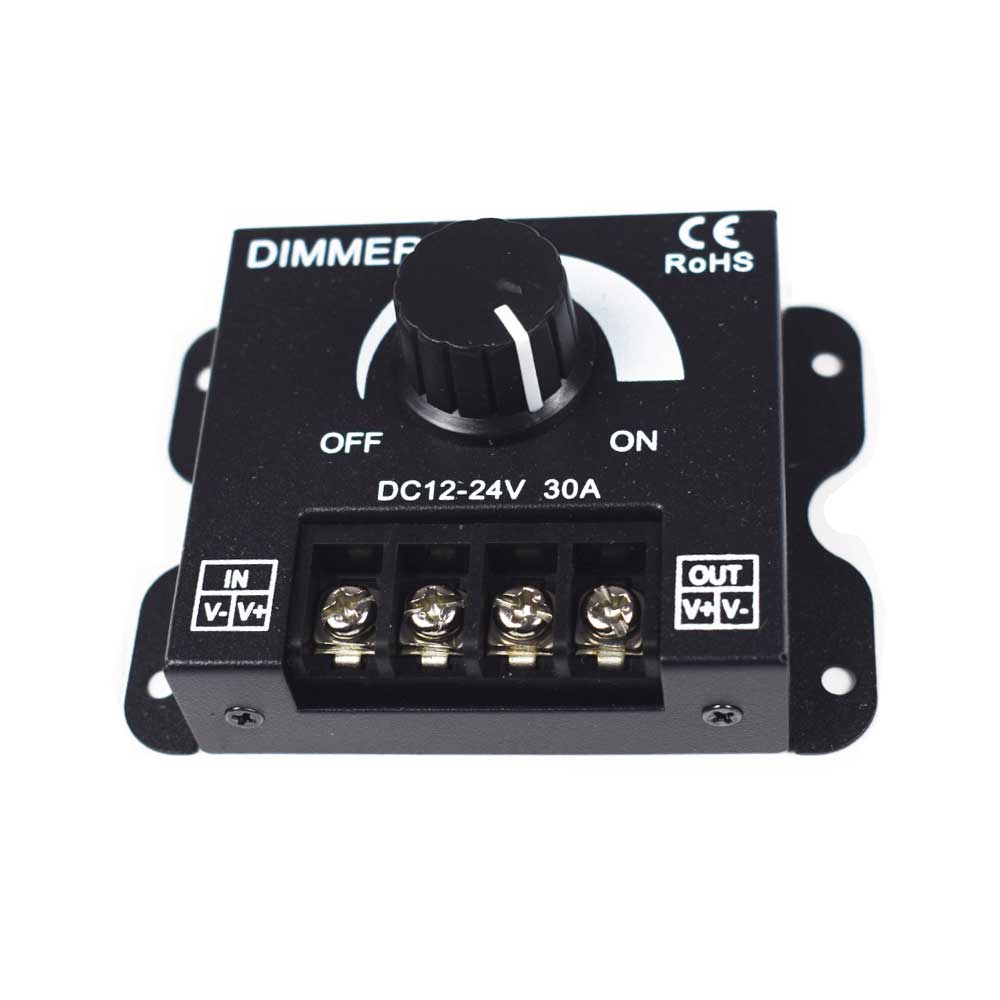

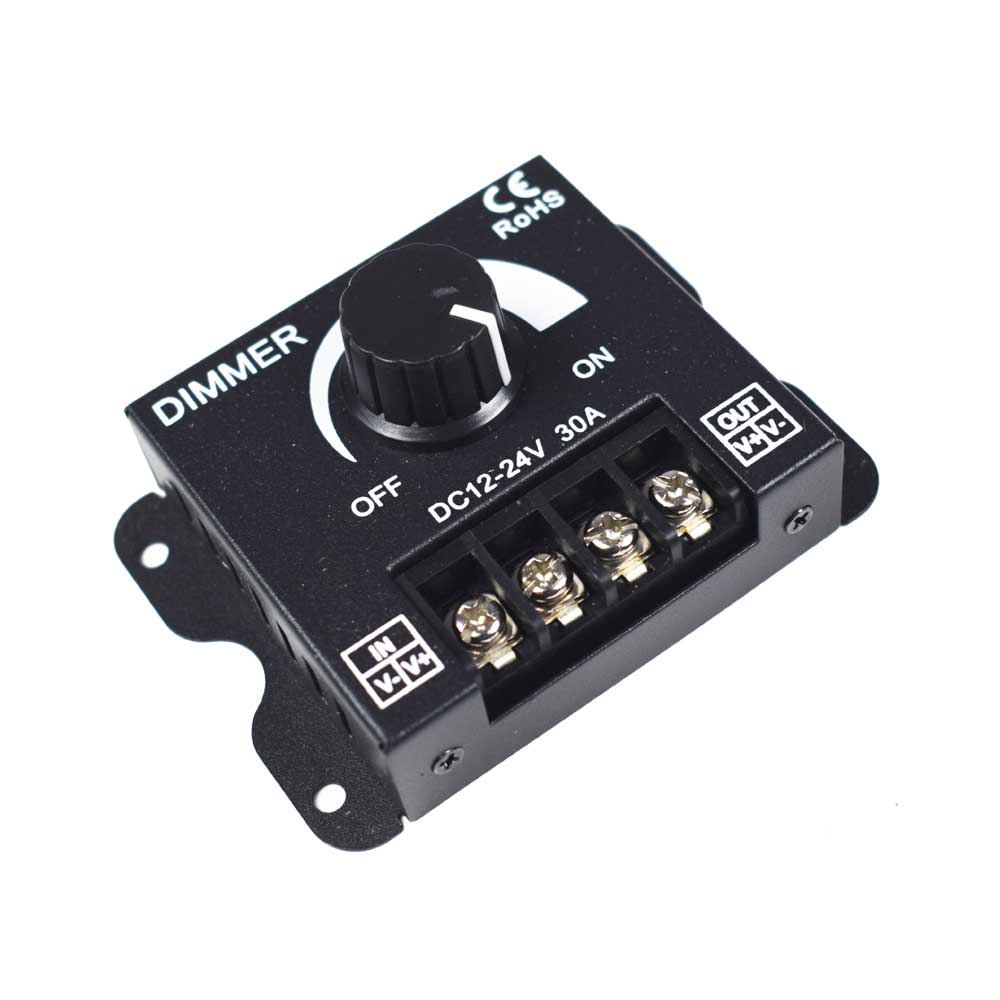

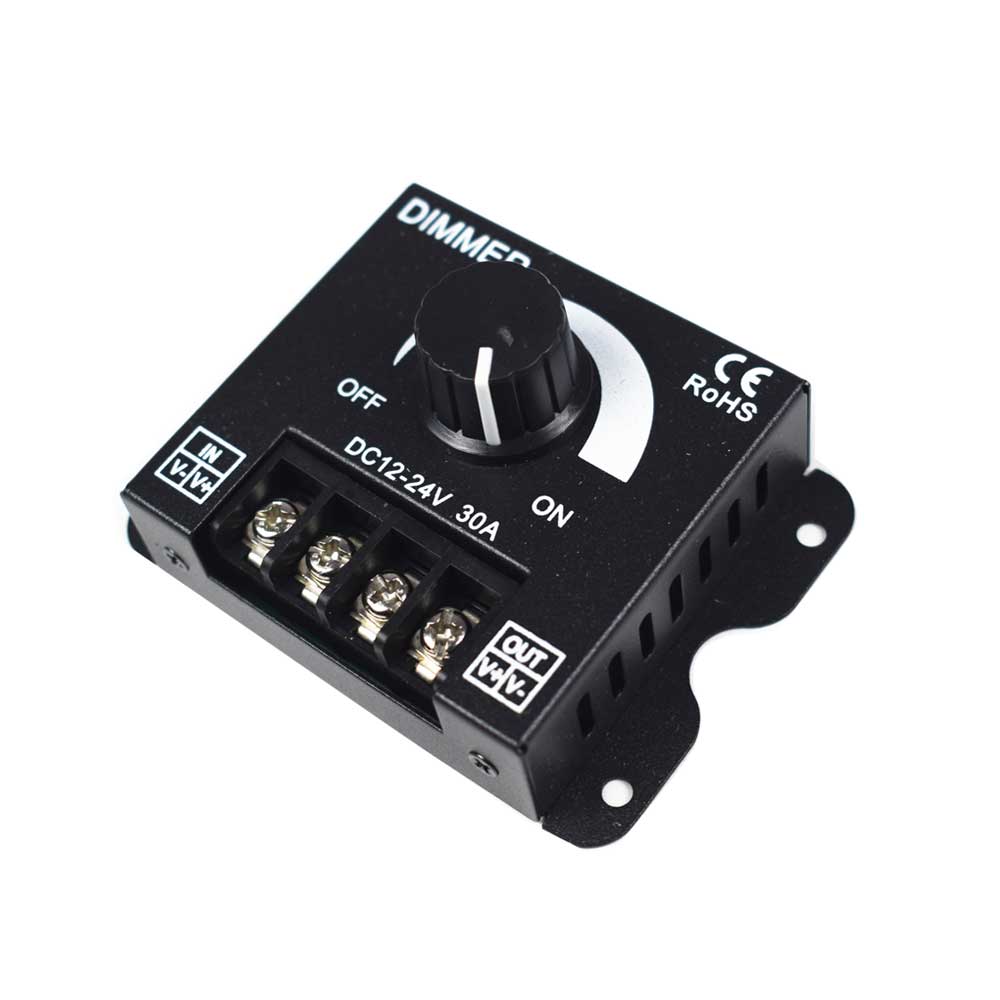

This is a DC 12-24V 30A Dimmer Controller Switch for LEDs Brightness Control. Dimmer is a controller that can adjust brightness infinitely, Its control mode is knob-operated control, you could adjust the light to the appropriate lighting brightness in accordance with your actual need.

Feature

  • 30A Dimmer switch

Safety Information:

  • The input voltage of this controller should be 12-24V DC;
  • Never connect two wires directly in case of a short circuit;
  • The lead wire should be connected correctly according to the colours that connecting diagram offers;
Specification
Product Dimmer Switch
Output Current 30A
Power Supply Voltage 12-24V
Output 1 Channel
Number of Terminals 4
Remote Distance >20m
Working Temperature -20°C  to +60°C
Output Power  12V<360W, 24V<720W
Dimension(LxBxH) 86.6mm x 62.4mm x 35mm
Knob Length 15mm
Country of Origin China
