₹3,526.85 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹3,350.51 (Including tax) |
11 - 20 | 8% | ₹3,244.70 (Including tax) |
21 - 40 | 10% | ₹3,174.17 (Including tax) |
41 - 100 | 12% | ₹3,103.63 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders
Chip on film (COF) is a new technology aggressively developed by liquid crystal display (LCD) module manufacturers. COF is a potential replacement method for tape-automated bonding (TAB) and chip-on-glass (COG) technology
This DWIN 7 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Such as a button, slider, Graph, Text Display, etc on their own.
User can Develop their own UI Using DWIN TN, Resistive touch 7 inch COF display the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB color and 16.7M color. It is also equipped with 300 nit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards like Arduino, Raspberry and many more… which can be interface with I2C communications.

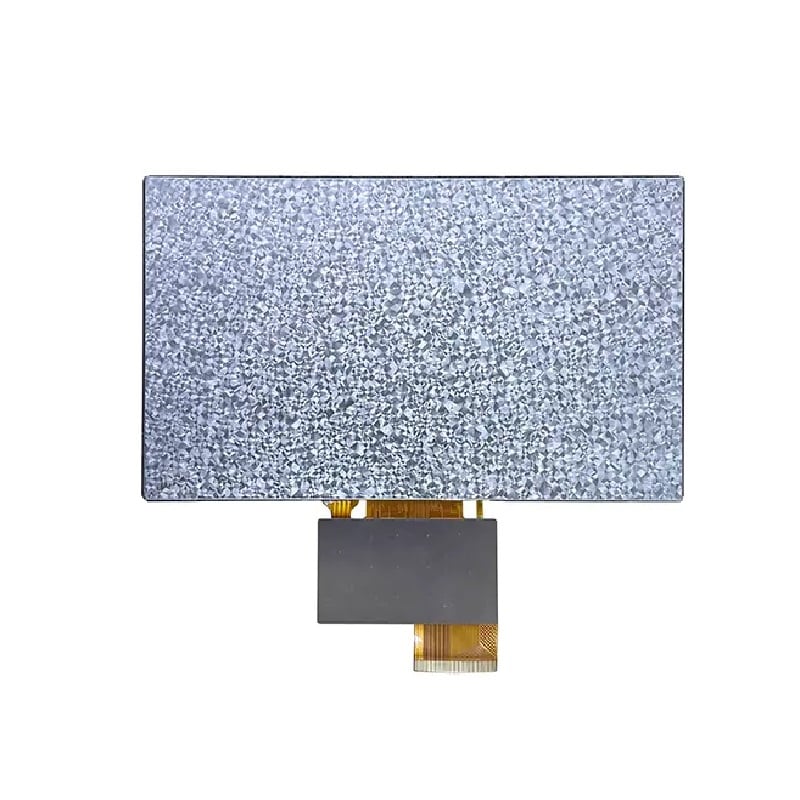

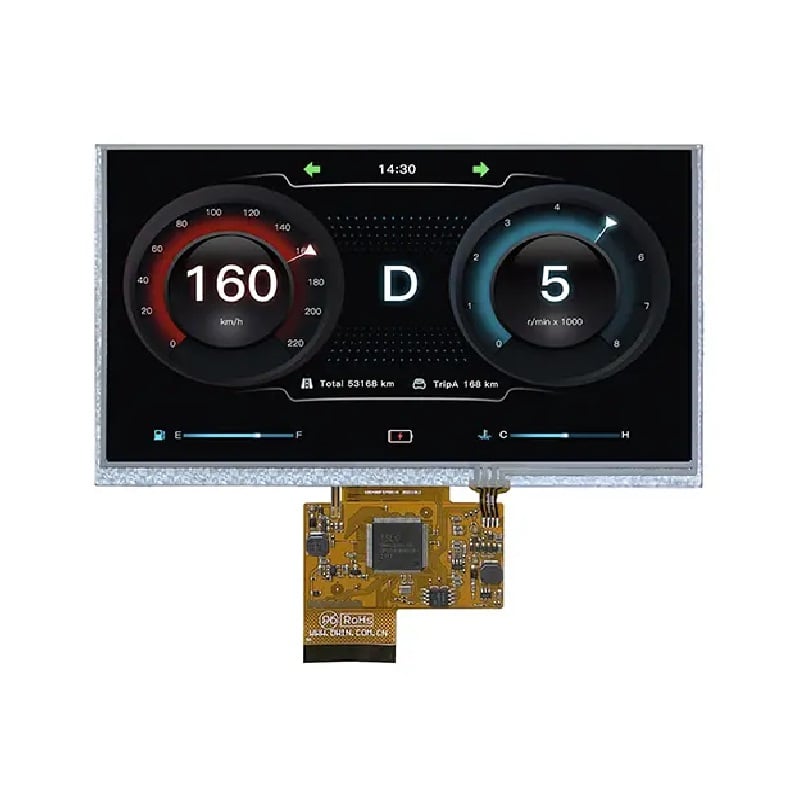

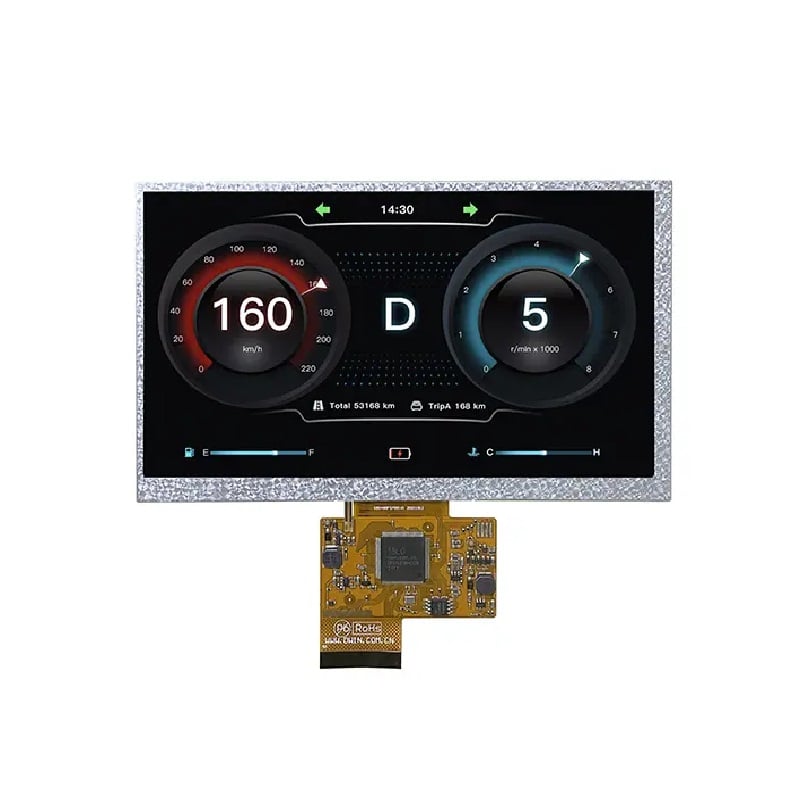

1 x DWIN TN, resistive touch 7 inch COF display
Brand |
Dwin |
---|---|
Display type |
COF display |
Operating Voltage (VDC) |
4.5 ~ 5.5V |
Interface |
I2C UART |
Flash Memory |
16MB |
RAM |
128KB |
LED Brightness (MCD) |
300 |
Touch type |
Resistive touch |
Size |
7 Inch |
