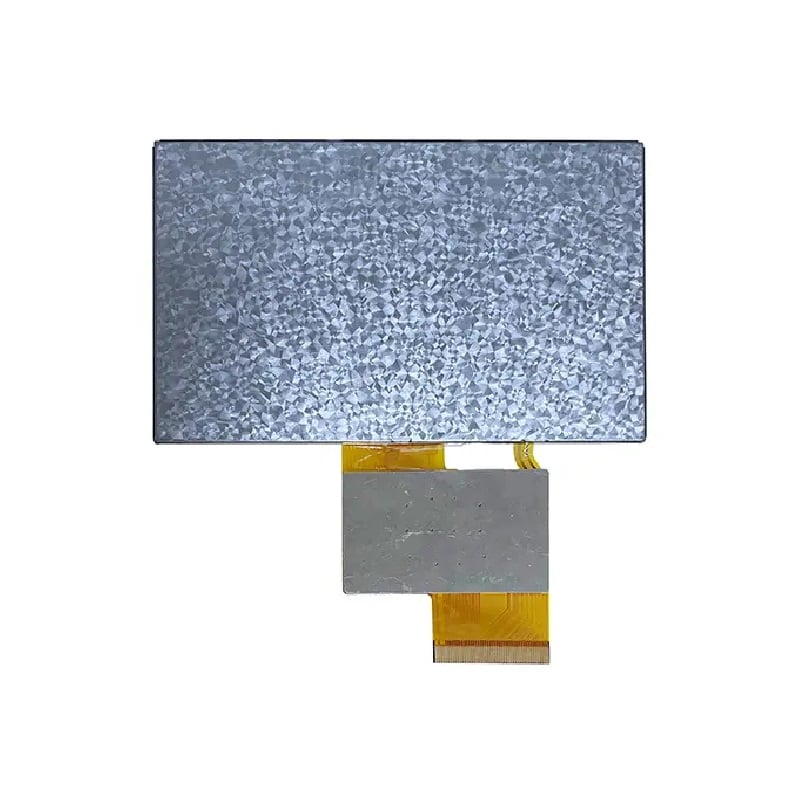

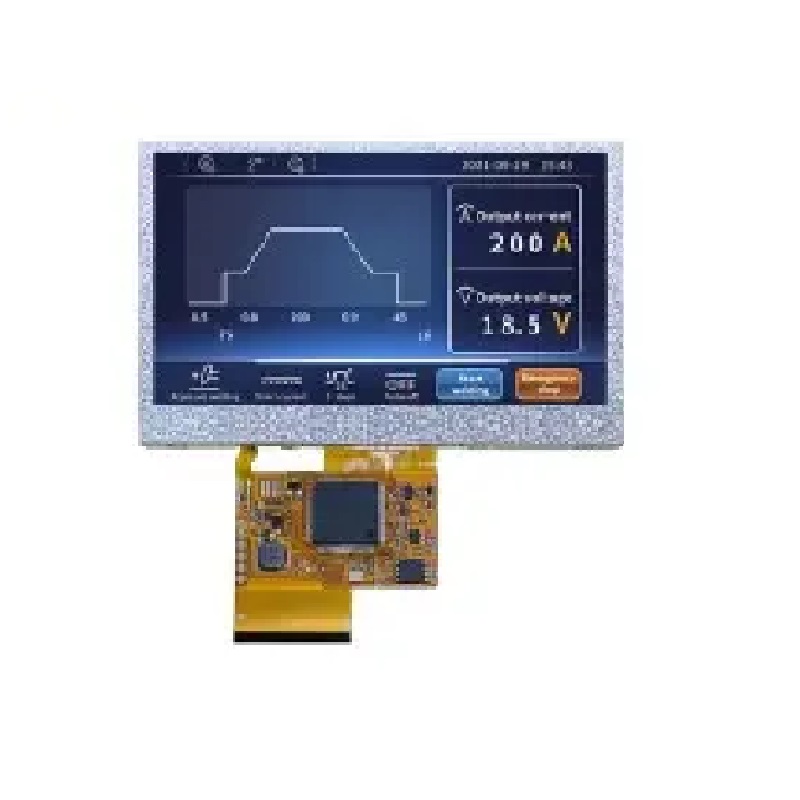

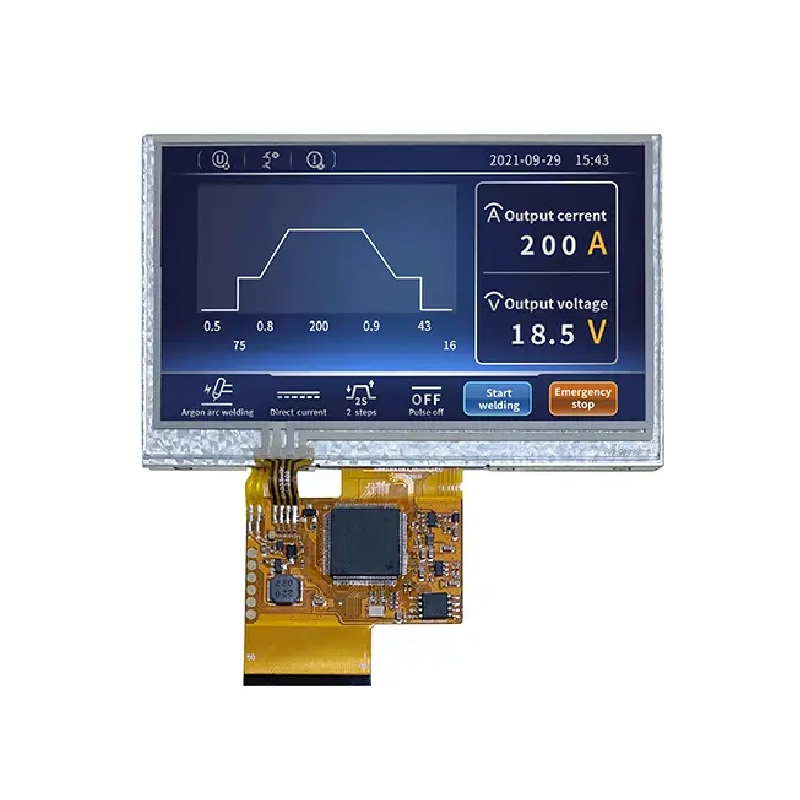

DWIN TN, resistive touch 4.3 inch COF Display

SKU: rz24313645
In Stock

1,499.00

  1. Product: COF Display
  2. Brand: DWIN
  3. Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
  4. Integrated smart screen
  5. Brightness 200nit
  6. 16.7M colors
  7. FLASH Memory 16Mbytes
  8. RAM Memory:128Kbytes
  9. UI Version: TA / DGUS II ( DGUS II pre-installed)
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

This DWIN 4.3 inch COF SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives user great and useful tools to develop their own UI with great Features. One can design UI Such as a button, slider, Graph, Text Display, etc. on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 200nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.



 Applications:

DWIN TN



DWIN TN




Features:

  1. 4.3 inch, 480×272 pixels resolution, 262K colors, TN-TFT-LCD, normal viewing angle.
  2. Smart screen without TP, product thickness of only 3mm.
  3. COF structure featured by light and thin structure, low cost and easy production.
  4. 50 pins interfaces, including IO, UART, CAN, AD, PWM from CPU core for easy secondary development.
  5.  Suitable for consumer applications with simple functions, mild working environment, and large enough consumption

Packages includes:

1 x DWIN TN, resistive touch 4.3 inch COF Display

Additional information

Product Type

COF Display

Brand

Dwin

Color

262K colors

LCD Type

TN-TFT-LCD

Viewing Angle

Normal viewing angle, typical value of 70°/70°/30°/40°(L/R/U/D)

Display Area

95.04mm (W)×53.86mm (H)

Resolution

480×272

Backlight

LED

Brightness

DMG48270F043_01WN:250nit DMG48270F043_01WTR:200nit

Power Voltage

4.5~5.5V, typical value of 5V

Operating Current

220mA, VCC=5V, max backlight, 78mA, VCC=5V, backlight off

User Interface

50Pin_0.5mm FPC

Baudrate

3150~3225600bps

Interface

UART2: TTL; UART4: TTL;( Only available after OS configuration) UART5: TTL;(Only available after OS configuration

Data Formate

UART2: N81; UART4: N81/E81/O81/N82;4 modes (OS configuration) UART5: N81/E81/O81/N82;4 modes (OS configuration)
