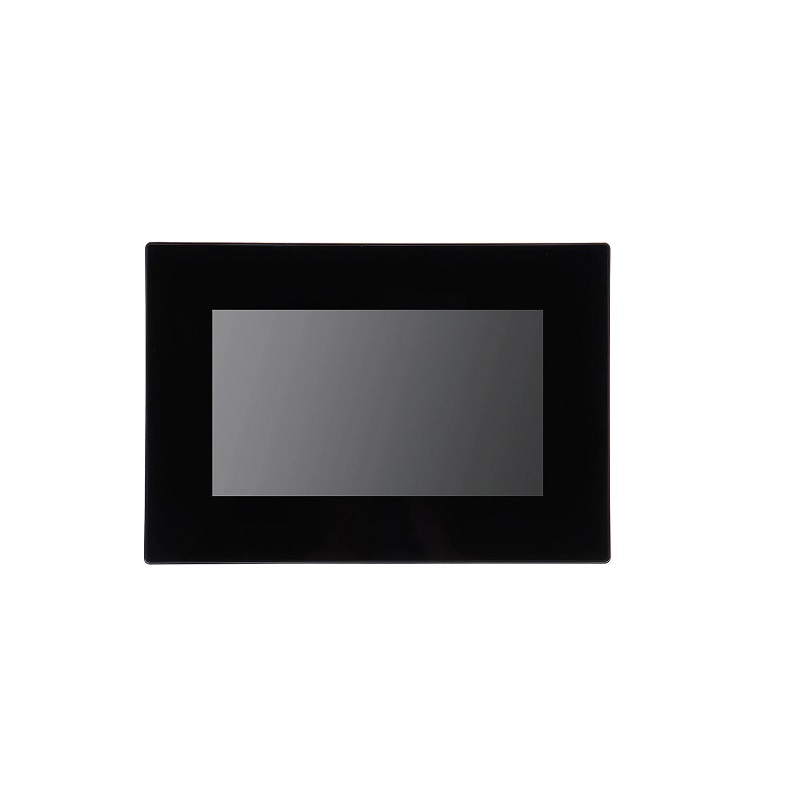

Nextion Intelligent NX4827P043_011C_Y 4.3″ HMI Capacitive Touch Display with enclosure

9,484.07 (Including tax)

  1. 4.3” LCD-TFT HMI display module
  2. 480 x 272 screen resolution
  3. RGB 65K true-to-life colors
  4.  Resistive touch panel
  5. 300 nit Brightness
  6. Onboard 200MHz MCU

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%9,009.86 (Including tax)
11 - 208%8,725.34 (Including tax)
21 - 4010%8,535.68 (Including tax)
41 - 10012%8,345.99 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

20 People watching this product now!
SKU: rz24323967 Category:
Description

Nextion Intelligent NX4827P043_011C_Y 4.3″ HMI Capacitive Touch Display with an enclosure having a Capacitive touch screen. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.

The Nextion Intelligent NX4827P043-011R 4.3″ Capacitive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

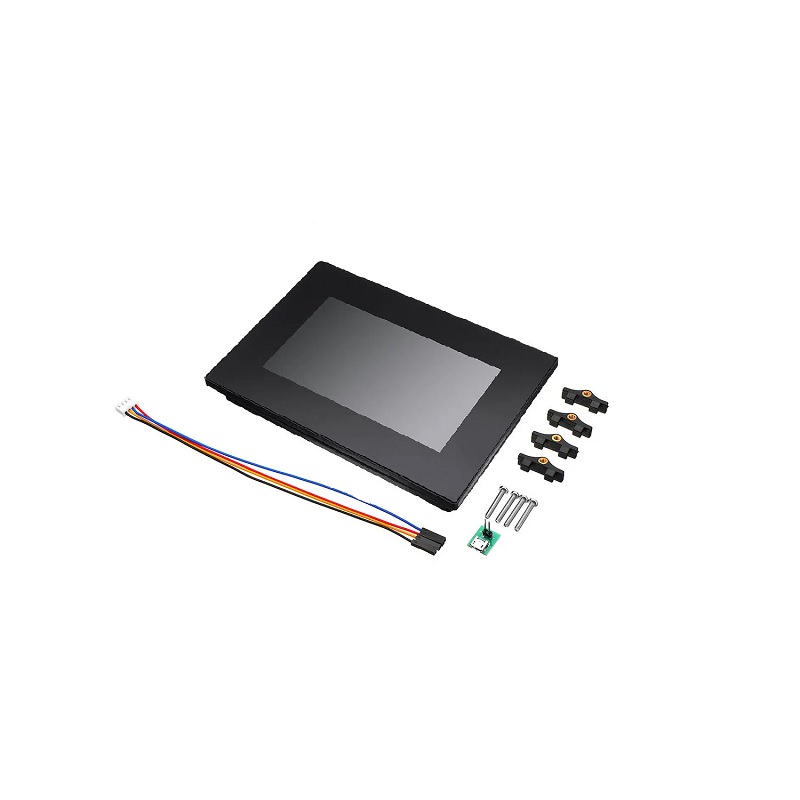

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Nextion Intelligent NX4827P043_011C_Y 4.3″ HMI Capacitive Touch Display with enclosure


Features:

  1. 4.3” LCD-TFT HMI display module
  2. 480 x 272 screen resolution
  3. RGB 65K true-to-life colors
  4.  Capacitive touch panel
  5. 300 nit Brightness
  6. Onboard 200MHz MCU
  7. 512 KB of SRAM
  8. 128 MB of Flash memory
  9. 1024 Byte EEPROM

Package Includes:

1 x Nextion Intelligent NX4827P043_011C_Y 4.3″ HMI Capacitive Touch Display with enclosure

Additional information
Model

NX4827P043-011C-Y

Operating Voltage

5 V

Operating Current

220 mA

FLASH Memory

120 MB

RAM Memory

512 KB

Serial Port Mode

3.3V/5.0V TTL

Touch type

Capacitive

Touches

> 1 million

Backlight lifetime

>30

,

000 Hours

Brightness

300nit

Operating Temperature Range (°C)

-20 to 70

Length (mm)

140

Width (mm)

100

Height (mm)

20

Weight (gm)

185
