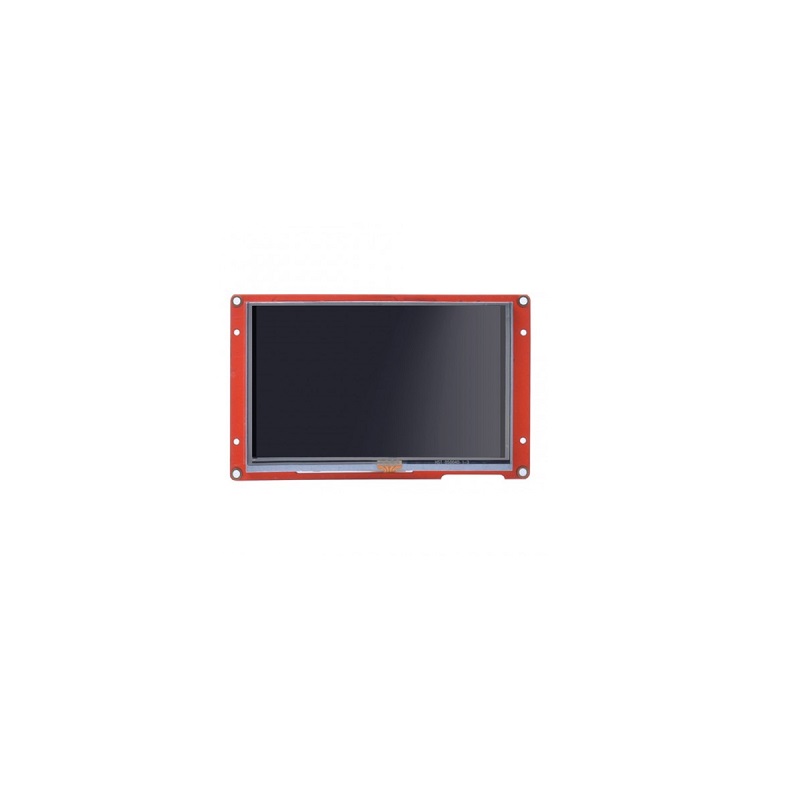

Nextion Intelligent NX8048P050_011C 5.0″ HMI Capacitive Touch Display

11,736.69 (Including tax)

  1. Model Name: NX8048P050_011C
  2. Resolution: 800×480 pixel
  3. Touch-type:Capacitive
  4. Backlight lifetime (Average): >30,000 Hours
  5. Built-in RTC support

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%11,149.85 (Including tax)
11 - 208%10,797.76 (Including tax)
21 - 4010%10,563.02 (Including tax)
41 - 10012%10,328.29 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

19 People watching this product now!
SKU: rz24323980 Category:
Description

 This is a Nextion Intelligent NX8048P050_011C 5.0″ HMI Capacitive Touch Display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to the  Microcontroller using a simple UART port. The Nextion display can be easily interfaced with any Microcontroller using just 2 wires. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background.

The Nextion Intelligent NX8048P050-011C 5.0″ Capacitive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and even work with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Nextion Intelligent NX8048P050_011C 5.0″ HMI Capacitive Touch Display


Features:

  1. 5” LCD-TFT HMI display module
  2. 840 x 480 screen resolution
  3. RGB 65K true-to-life colors
  4. Capacitive touch panel
  5. 300 nit Brightness
  6. Onboard 200MHz MCU

Package Includes:

1 x Nextion Intelligent NX8048P050_011C 5.0″ HMI Capacitive Touch Display

Additional information
Model

NX8048P050-011C

Operating Voltage(V)

5 V

Operating Current(mA)

220 mA

FLASH Memory

120 MB

Serial Port Mode

3.3V/5.0V TTL

Brightness

300 nit

Backlight lifetime

>30

,

000 Hours

Touch type

Capacitive

Color

16 bit 565

,

5R-6G-5B

Resolution

800×480 pixel

Length (mm)

140

Width (mm)

85

Height (mm)

6.4

Weight (gm)

140
