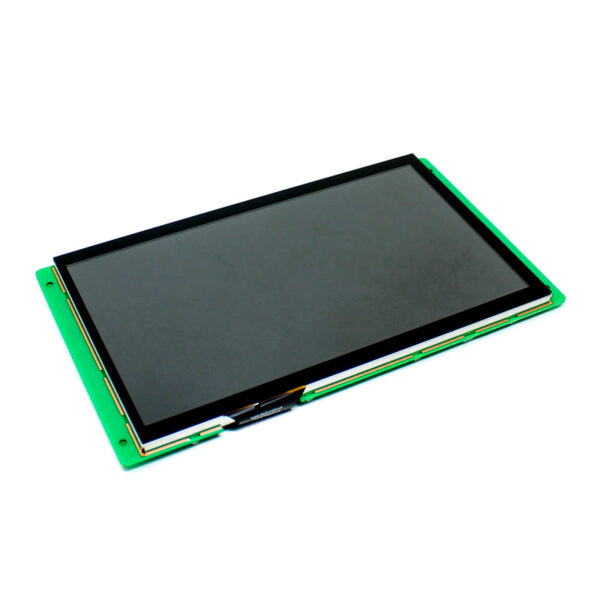

DWIN HMI 10.1 Inch IPS LCD Capacitive Touch Display

0 Reviews
Available on backorder

12,648.85 (Excluding tax)

  1. Operating Voltages: 12V typical.(MIN:6V,MAX:15V)
  2. Integrated smart screen
  3. Brightness 250nit
  4. 16.7M colours
  5. FLASH Memory 16Mbytes
  6. RAM Memory:128Kbytes

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%12,016.41 (Excluding tax)
11 - 208%11,636.94 (Excluding tax)
21 - 4010%11,383.97 (Excluding tax)
41 - 10012%11,130.99 (Excluding tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24318935

Product details

This DWIN 10.1 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI such as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 250nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

For more information about the Development tool, Click here


Features:

  1. UI Version: TA / DGUS II ( DGUS II pre-installed)
  2. Powerful data management
  3. Dimensions:257.8(W) ×148.1(H) × 15.2(T) mm
  4. Capacitance touch panel, Buzzer, WIFI module interface
  5. Powerful data management
  6. Built-in DGUS II intelligent software

Display:

  1. Size – 10.1″
  2. Display Format – 1024 × 600 Pixel Matrix
  3. Brightness – 250nit
  4. Active Area – 222.7 mm (W) × 125.3 mm (H)
  5. Colour – 24-bit colour 8R8G8B
  6. Backlight – LED

Interface:

  • Mode is determined by Jumper: ON = 8N1, 3.3V & 5V TTL/CMOS; OFF = 8N1, RS232

Package Includes :

1 x 10.1″ SMART SCREEN

Additional information

Operating Voltage (VDC)

MIN:6V, MAX:15V

RAM

128KB

Flash Memory

16MB

Touch Type

Capacitive

Interface

I2C, UART

LED Brightness (MCD)

250
