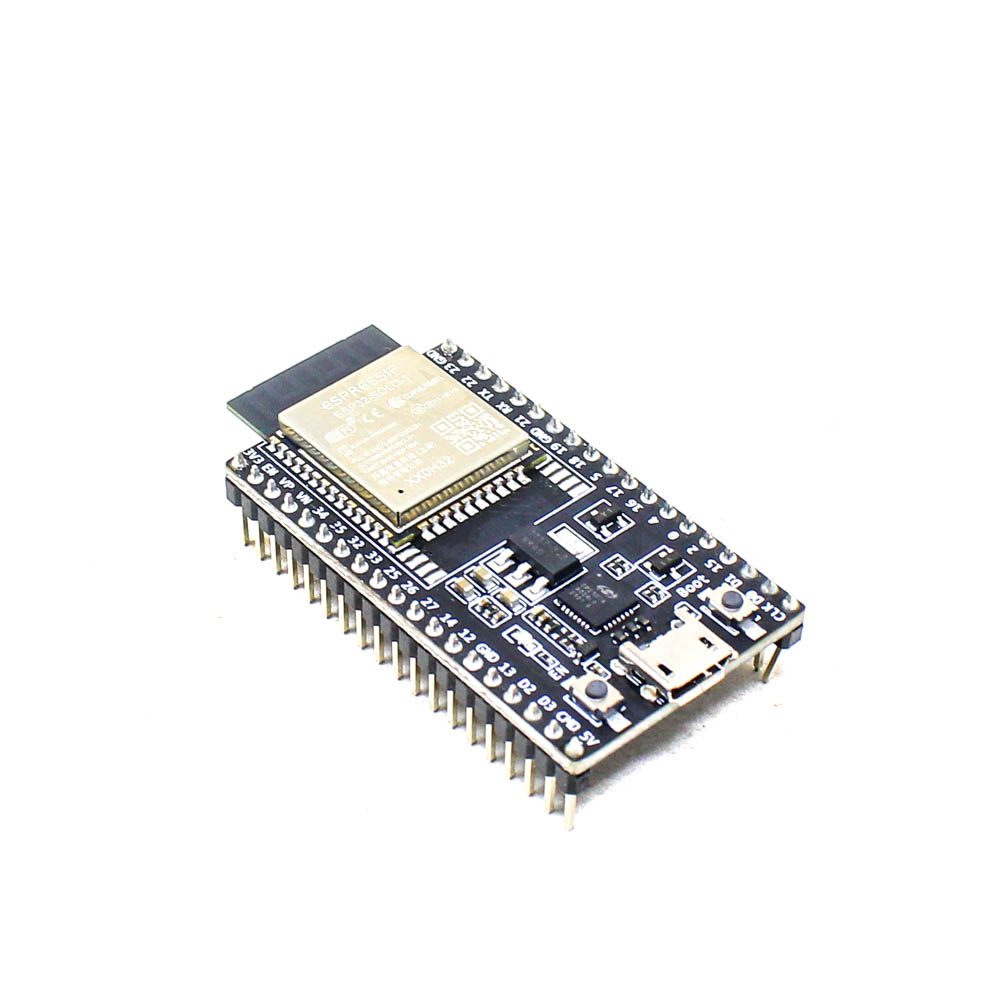

ESP32-SOLO-1 IoT Development Board Module for Arduino

SKU: rz24312776
Out of stock


Add to Wishlist
Add to Wishlist
  1. Model: ESP32-SOLO-1
  2. Product: IoT Development board
  3. Frequency: 2.4 GHz to 2.5 GHz
  4. Operating Supply Voltage: 5 V
  5. Bluetooth: Sensitivity 30.8% PER –97dBm
  6. Operating Temperature: –40 °C ~ +105 °C
Out of stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free


ESP32 is a series of the low-cost, low-power system on a chip microcontroller with integrated Wi-Fi and dual-mode Bluetooth

ESP32-SOLO-1 is a powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

ESP32 can perform as a complete standalone system or as a slave device to a host MCU, reducing communication stack overhead on the main application processor. ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its SPI / SDIO or I2C / UART interfaces

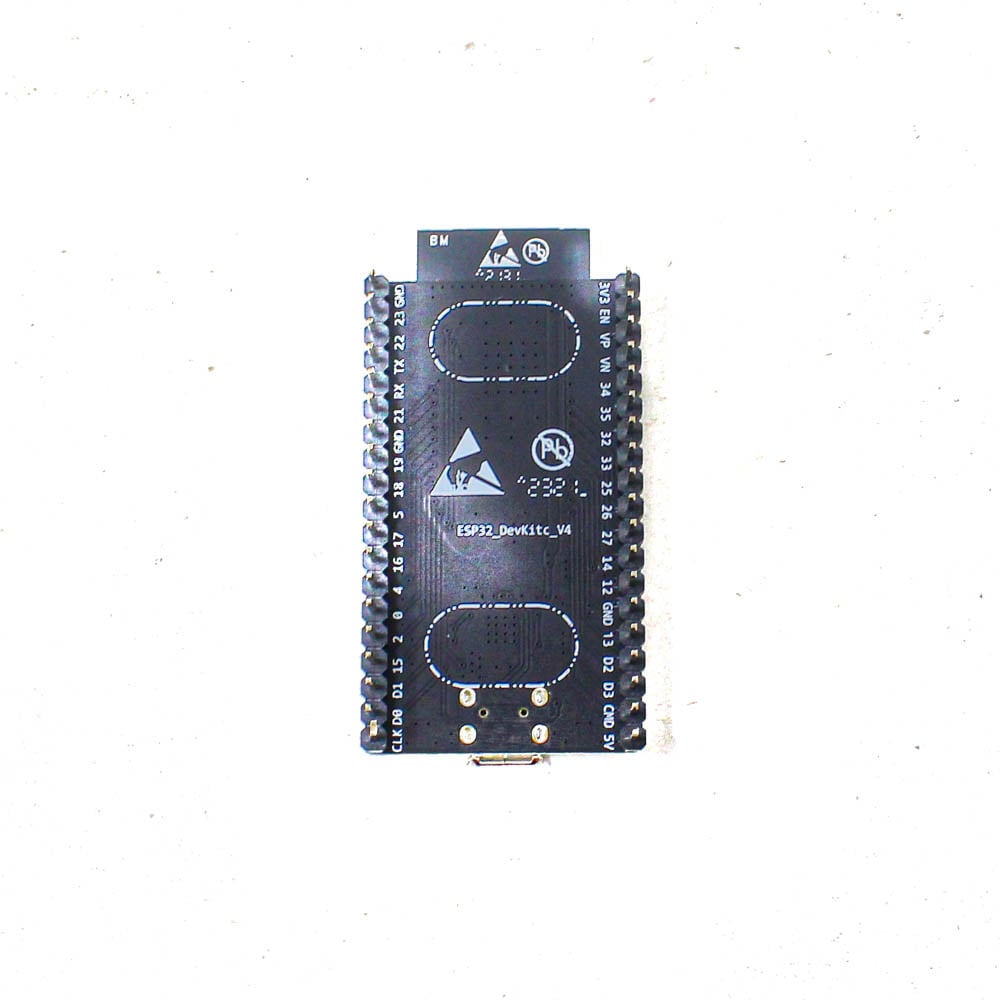

ESP32-DevKitC is a low-footprint and entry-leveldevelopment board that is part of the ESP32 series. This board has a rich peripheral set. The built-in. ESP32 pinout is optimized for hassle-free


  1. ESP32-SOLO-1 can be programmed in different programming environments
  2. On board Wi-Fi + Bluetooth + Bluetooth LE MCU connectivity
  3. Use in IoT Projects
  4. Small and compact Dev module
  5. You can connect with a router or your devices
  6. Easy to learn & use
  7. Rapid Prototyping
  8. Flexible and Feature-Rich
  9. Breadboard-Friendly


  1. Antenna: On board Antenna
  2. Product: IoT Development Board
  3. Model: ESP32-SOLO-1
  4. The CPU clock frequency: 80 MHz to 240 MHz
  5. Microprocessor: Tensilica Xtensa LX6 dual core
  6. Voltage: 3.6V
  7. Current: 500mA
  8. ROM: 448 KB ROM
  9. SRAM: 520 KB SRAM
  10. Integrated crystal 40 MHz crystal
  11. QSPI flash/SRAM: 4 × 16 MB
  12. On board: Wi-Fi + Bluetooth + Bluetooth LE MCU
  13. Operating Temperature:–40 °C ~ +85 °C

Packages Includes:

1 x ESP32-SOLO-1 Development Board Module
