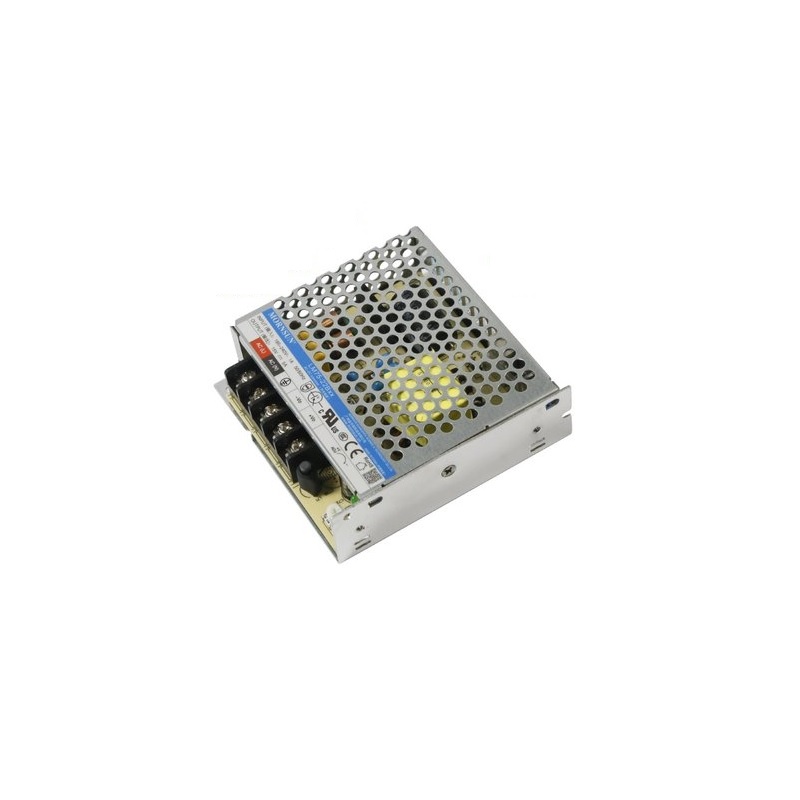

LM100-22B15 Mornsun SMPS – 15V 7A – 105W AC/DC Enclosed Switching Single Output Power Supply

0 Reviews
Available on backorder

1,447.85

  1. Output Power:105 W
  2. Output Voltage:15V
  3. Output Current:7.0 A
  4.  Operating ambient temperature range: -30℃ to +70℃
  5.  Low standby power consumption, high efficiency
  6.  High I/O isolation test voltage up to 4000VAC
  7. Low ripple & noise
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24323634

Product details

This is an LM100-22B15 Mornsun SMPS. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards, and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.


Features:

  1.  Accepts AC or DC input (dual-use of the same terminal)
  2.  Operating ambient temperature range: -30℃ to +70℃
  3.  Low standby power consumption, high efficiency
  4. High I/O isolation test voltage up to 4000VAC
  5.  Low ripple & noise
  6. Output short circuit, over-current, over-voltage protection

Package Includes:

1 x LM100-22B15 Mornsun SMPS

Additional information

Model

LM100-22B15

Input Voltage Range

165- 264 VAC, 200-370 VDC

Output Voltage (VDC)

13.5-18

Output Power(Watt)

105

Length (mm)

130

Width (mm)

95

Height (mm)

30

Weight (gm)

295
