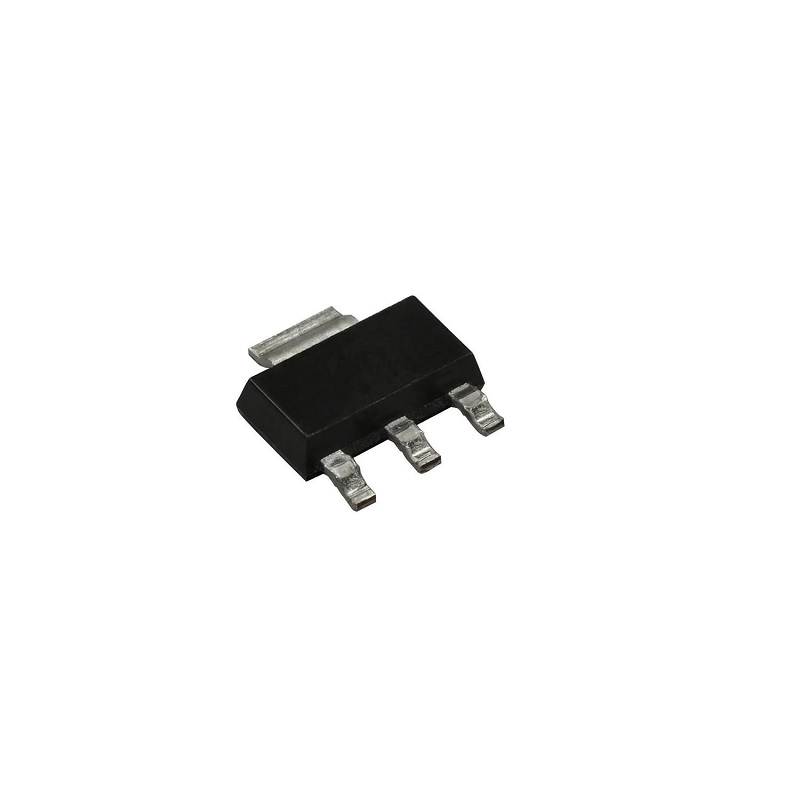

NCP1117ST33T3G – 3.3V 1A Fixed/Adjustable Positive LDO Regulator 4-Pin SOT-223 (ON semiconductor)

0 Reviews
Available on backorder

63.25

  1. Mounting Style: SMD/SMT
  2. Package/Case: SOT-223-3
  3. Output Voltage: 3.3 V
  4. Output Current: 1 A
  5. Number of Outputs: 1 Output
  6. Polarity: Positive
  7. Quiescent Current: 10 mA
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24321466

Product details

The NCP1117 series are low dropout positive voltage regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. This series contains nine fixed output voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 18.8 V with two external resistors. On-chip trimming adjusts the reference/output voltage to within ±1.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The NCP1117 series can operate with up to 20 V input. Devices are available in SOT−223 and DPAK packages.

Application:
  1. Consumer and Industrial Equipment Point of Regulation
  2. Active SCSI Termination for 2.85 V Version
  3.  Switching Power Supply Post Regulation
  4. Hard Drive Controllers
  5.  Battery Chargers

Features:

  1.  Adjustable Output Voltage Option
  2.  No Minimum Load Requirement for Fixed Voltage Output Devices
  3.  Reference/Output Voltage Trimmed to ±1.0%
  4.  Current Limit, Safe Operating, and Thermal Shutdown Protection
  5.  The operation to 20 V Input
  6.  These are Pb-Free Devices

Specifications:

  1. Mounting Style: SMD/SMT
  2. Package/Case: SOT-223-3
  3. Output Voltage: 3.3 V
  4. Output Current: 1 A
  5. Number of Outputs: 1 Output
  6. Polarity: Positive
  7. Quiescent Current: 10 mA
  8. Input Voltage MAX: 20 V
  9. Input Voltage MIN: 4.75 V
  10. Output Type: Fixed
  11. Minimum Operating Temperature: 0 C
  12. Maximum Operating Temperature: + 125 C
  13. Dropout Voltage: 950 mV

Package Includes:

1 x NCP1117ST33T3G – 3.3V 1A Fixed/Adjustable Positive LDO Regulator 4-Pin SOT-223 (ON semiconductor)
