A planetary gear motor mimics a planetary rotation system, the input shaft drives the central gear, also known as the sun gear, which then turns the surrounding gears, also known as planet gears When you couple a dc motor with a planetary gearbox a speed reduction occurs resulting in increased rotational torque at the gearbox output shaft. A planetary gearboxes consist of an internal sun gear that drives multiple outer ring gears known as planet gears, hence its name.
The efficiency loss in a planetary gear train is typically about 3% per stage. This type of efficiency ensures that a high proportion (about 97%) of the energy being input is transmitted through the gearbox, rather than being wasted on mechanical losses inside the gearbox.
The planetary gear is the most powerful gear system then other gear system it is compact and versatile High efficiency due to low rolling power it is use in more of application in world just like car to get more best driving preformation and many more Compared with traditional fixed-shaft gearing systems, a planetary gearbox has compact structure and light weight, while its load-carrying capacity, transmission precision, and efficiency are much higher.
This product is combination of DC Motor & planetary Gear System Â
Applications:
Note: How the planetary Gear works, video is uploaded in video section Â

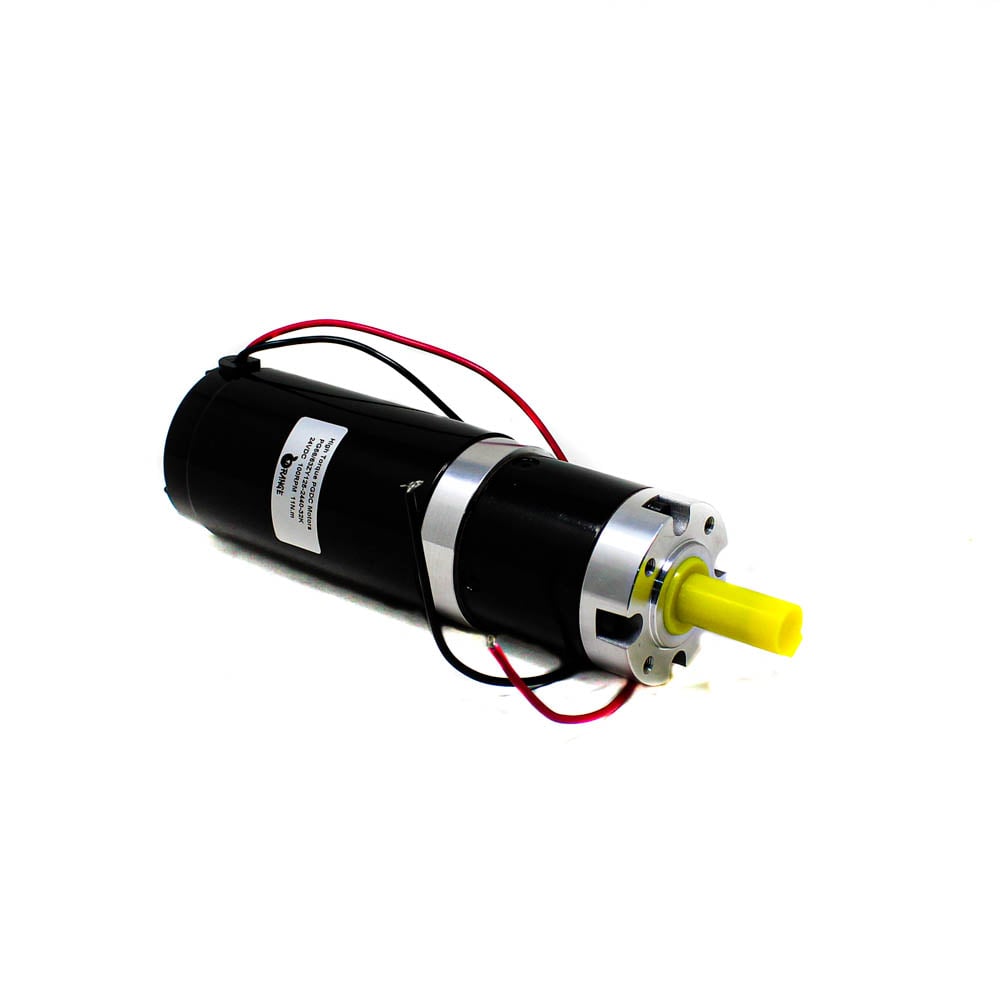

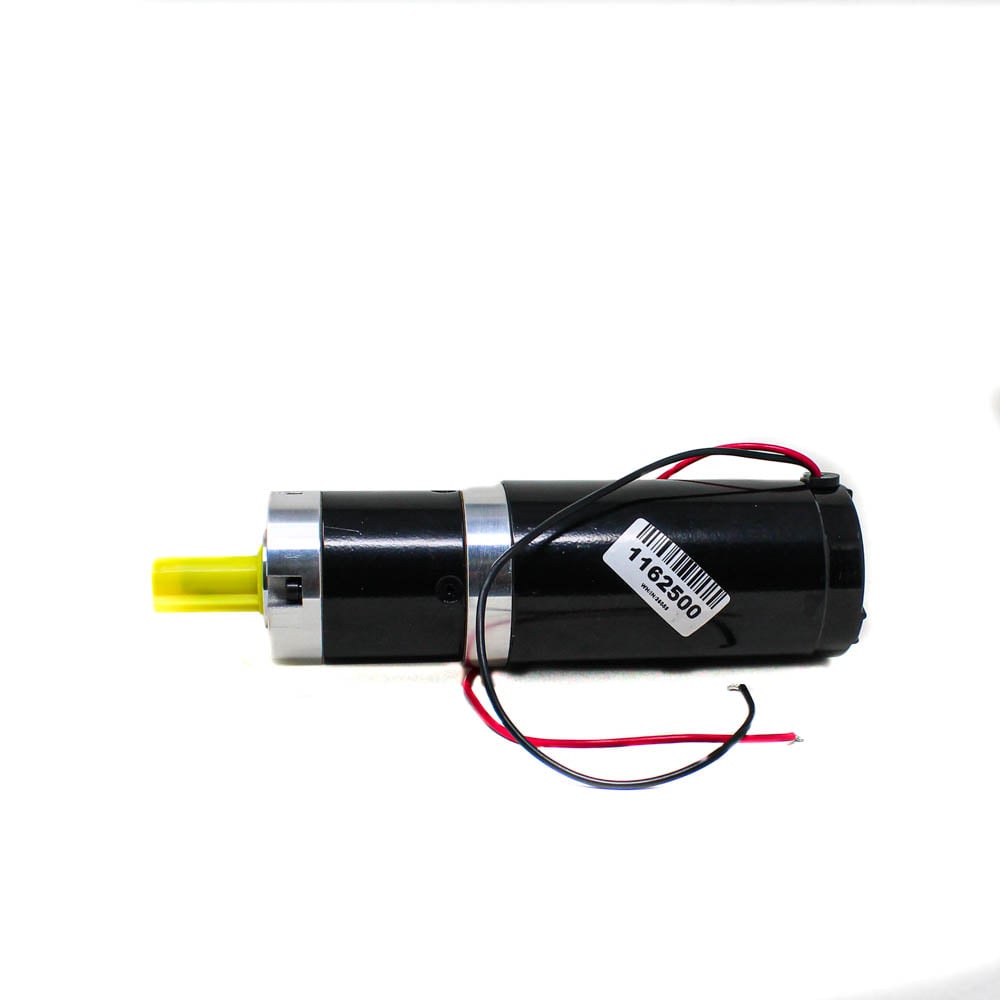

1 x DC Planetary Gear Motor 63ZY125-2440-32K
Model No |
63ZY125-2440-32k |
---|---|
Motor type |
permanent magnet DC motor |
Rated voltage |
24V |
No-load speed (r/min) |
4000 |
No-load current(A) |
1.20A |
Rated speed (r/min) |
3200 |
Rated torque (mN.m) |
450 |
Gear Ratio |
32:1 |
Output RPM |
100 RPM |
Output power (w) |
150W |
Rated current (A) |
9.0A |
Stall torque (mN.m) |
1200 |
Stall current (A) |
22.6A |
Length (mm) |
23 |
Width (mm) |
7 |
Height (mm) |
7 |
Weight (Kg) |
2.061kg |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Model No |
:PG56/63ZY125-2440-115k |
---|---|
Motor type |
permanent magnet DC motor |
RPM |
27 RPM |
Gearbox |
planetary gearbox |
Voltage |
24V |
No-load speed ( r/min) |
4000 |
No-load current (A) |
1.20A |
Rated speed (r/min) |
3200 |
Rated torque (mN.m) |
450 |
Output power (W) |
150W |
Rated current (A) |
9A |
Stall torque (mN.m) |
1200 |
Stall current (A) |
22.6A |
Length (mm) |
25 |
Width (mm) |
7 |
Hight (mm) |
7 |
Weight (Kg) |
2.237 |
Out of stock
Model No |
PG56/63ZY125-2440-168k |
---|---|
Motor type |
permanent magnet DC motor |
RPM |
19 RPM |
Gearbox |
planetary gearbox |
Voltage |
24V |
No-load speed ( r/min) |
4000 |
No-load current (A) |
1.20A |
Rated speed (r/min) |
3200 |
Rated torque (mN.m) |
450 |
Output power (W) |
150W |
Rated current (A) |
9A |
Stall torque (mN.m) |
380KG.CM |
Stall current (A) |
22.6A |
Length (mm) |
25 |
Width (mm) |
7 |
Hight (mm) |
7 |
Weight (Kg) |
2.406kg |
Out of stock
Model No |
PG56/63ZY125-2440-47k |
---|---|
Motor type |
permanent magnet DC motor |
RPM |
68 RPM |
Gearbox |
planetary gearbox |
Voltage |
24V |
No-load speed ( r/min) |
4000 |
No-load current (A) |
1.20A |
Rated speed (r/min) |
3200 |
Rated torque (mN.m) |
450 |
Output power (W) |
150W |
Rated current (A) |
9A |
Stall torque (mN.m) |
1200 |
Stall current (A) |
22.6A |
Length (mm) |
25 |
Width (mm) |
7 |
Hight (mm) |
7 |
Weight (Kg) |
2.222 |
Out of stock
Model No |
PG56/63ZY125-2440-55k |
---|---|
Motor type |
permanent magnet DC motor |
RPM |
58 RPM |
Gearbox |
planetary gearbox |
Voltage |
24V |
No-load speed ( r/min) |
4000 |
No-load current (A) |
1.20A |
Rated speed (r/min) |
3200 |
Rated torque (mN.m) |
18N.m |
Output power (W) |
150W |
Rated current (A) |
9A |
Stall torque (mN.m) |
1200 |
Weight torque |
183KG.CM |
Stall current (A) |
22.6A |
Length (mm) |
25 |
Width (mm) |
7 |
Hight (mm) |
7 |
Weight (Kg) |
2.224 |
Out of stock
Model No |
PG56/63ZY125-2440-65k |
---|---|
Motor type |
permanent magnet DC motor |
Gearbox |
planetary gearbox |
RPM |
49 RPM |
Voltage |
24VDC |
No-load speed ( r/min) |
4000 |
No-load current (A) |
1.20A |
Rated speed (r/min) |
3200 |
Rated torque (mN.m) |
450 |
Output power (W) |
150W |
Rated current (A) |
9A |
Stall torque (mN.m) |
214KG.CM |
Stall current (A) |
22.6A |
Length (mm) |
25 |
Width (mm) |
7 |
Hight (mm) |
7 |
Weight (Kg) |
2.240kg |
Out of stock
Model No |
PG56/63ZY125-2440-76k |
---|---|
Motor type |
permanent magnet DC motor |
Gearbox |
planetary gearbox |
Voltage |
24VDC |
No-load speed ( r/min) |
4000 |
No-load current (A) |
1.20A |
Rated speed (r/min) |
3200 |
RPM |
42 RPM |
Rated torque (mN.m) |
450 |
Output power (W) |
150W |
Rated current (A) |
9A |
Stall torque (mN.m) |
255KG.CM |
Stall current (A) |
22.6A |
Length (mm) |
25 |
Width (mm) |
7 |
Hight (mm) |
7 |
Weight (Kg) |
2.234 |
