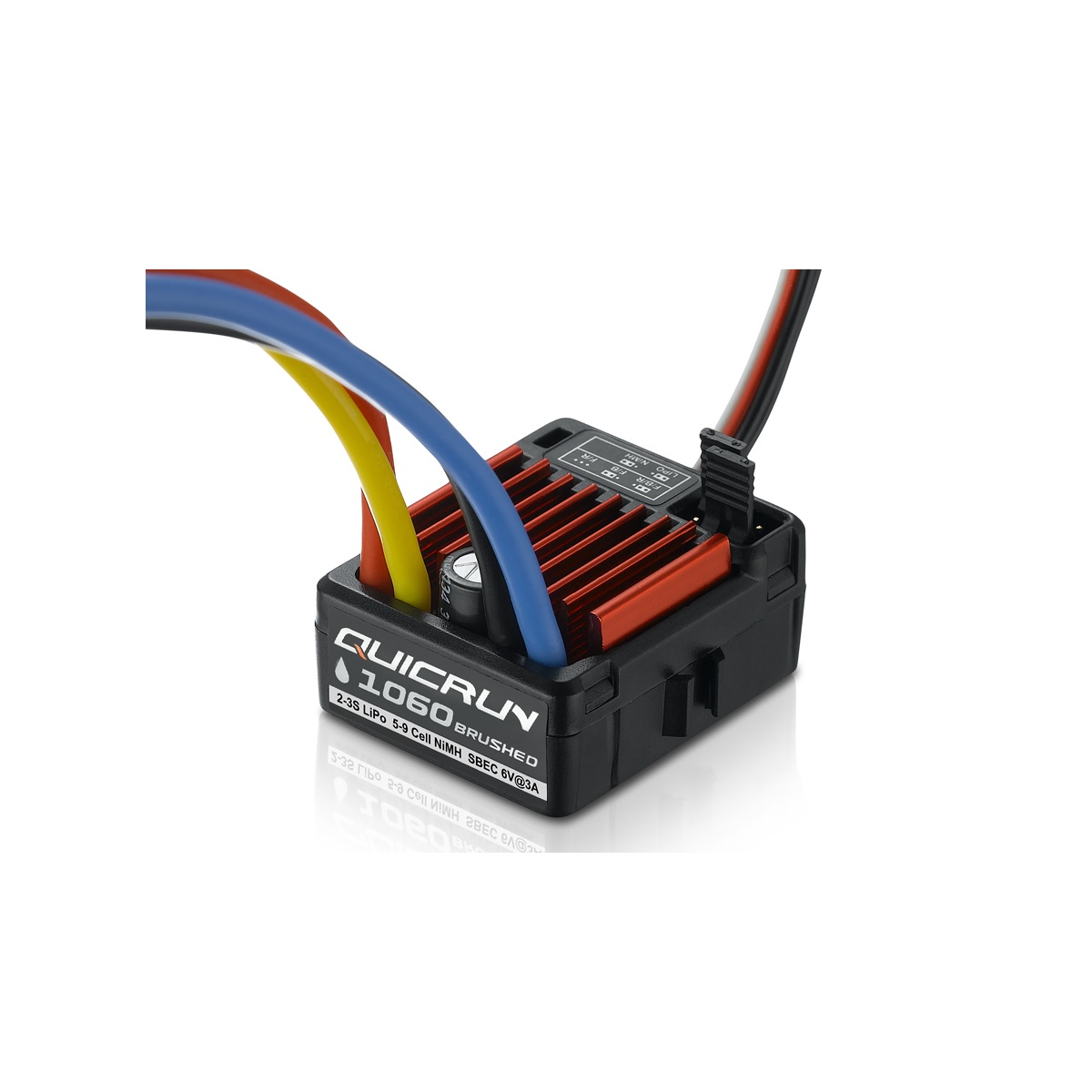

Original HobbyWing QuicRun 1060 60A Brushed Electronic Speed Controller
₹2,135.00
- Model: Wp-1060-BRUSHED
- Voltage Range: 2-3S Lipo or 5-9 NiMH
- Resistance: Fwd 0.001Ω, Rev 0.002Ω
- BEC Output: 3A/5V (Linear Mode)
- PWM Frequency: 1KHz
In Stock
Product will restock shortly. Receive in-stock notifications for this product.
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist
+91-7231900002 Connect on Whatsapp
Description
HobbyWing QuicRun 1/10 Waterproof Brushed 60A Electronic Speed Controller ESC 1060
Features:
- For: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
- Water-proof and dust-proof, suitable for all-weather condition races.
- Small size with built-in capacitor module.
- Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.

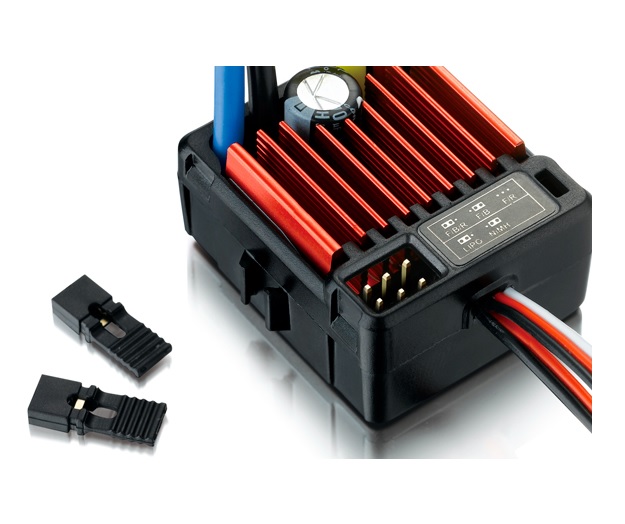

- Easy to set the ESC parameters with jumpers.
- Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
Specification:
- Fwd. Cont. / Peak Current: 60A /360A
- Rev. Cont. / Peak Current: 30A /180A
- Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
- Motor Limit: *WP-860-DUAL-BRUSHED has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turns of the motors need to be increased.
- 2S Lipo or 6 NiMH
- 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
- 3S Lipo or 9 NiMH
- 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
- 4S Lipo or 12 NiMH
- Not Available
- Cooling Fan: Without cooling fan
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Package Includes :
1 x Original HobbyWing QuicRun 1625 Brushed Electronic Speed Controller
Additional information
Model | Wp-1625-BRUSHED |
---|---|
Input Voltage Range | 2-3S Lipo or 5-9 NiMH |
Resistance (Ω) | Fwd 0.001Ω, Rev 0.002Ω |
BEC | 3A/5V (Linear Mode) |
PWM Frequency | 1KHz |
Forward Cont | Peak Current: 60A /360A |
Reverse Cont | Peak Current: 30A /180A |
