T Motor Thunder 200A 24S ESC

132,823.16 (Including tax)

  1. Support LIPO (S): 18-24S
  2. Continuous output current (A):  150A
  3. Instantaneous output current (Less than 10s): 200A







Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%126,182.00 (Including tax)
11 - 208%122,197.30 (Including tax)
21 - 4010%119,540.84 (Including tax)
41 - 10012%116,884.38 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

12 People watching this product now!
SKU: rz2436202 Category:
Description

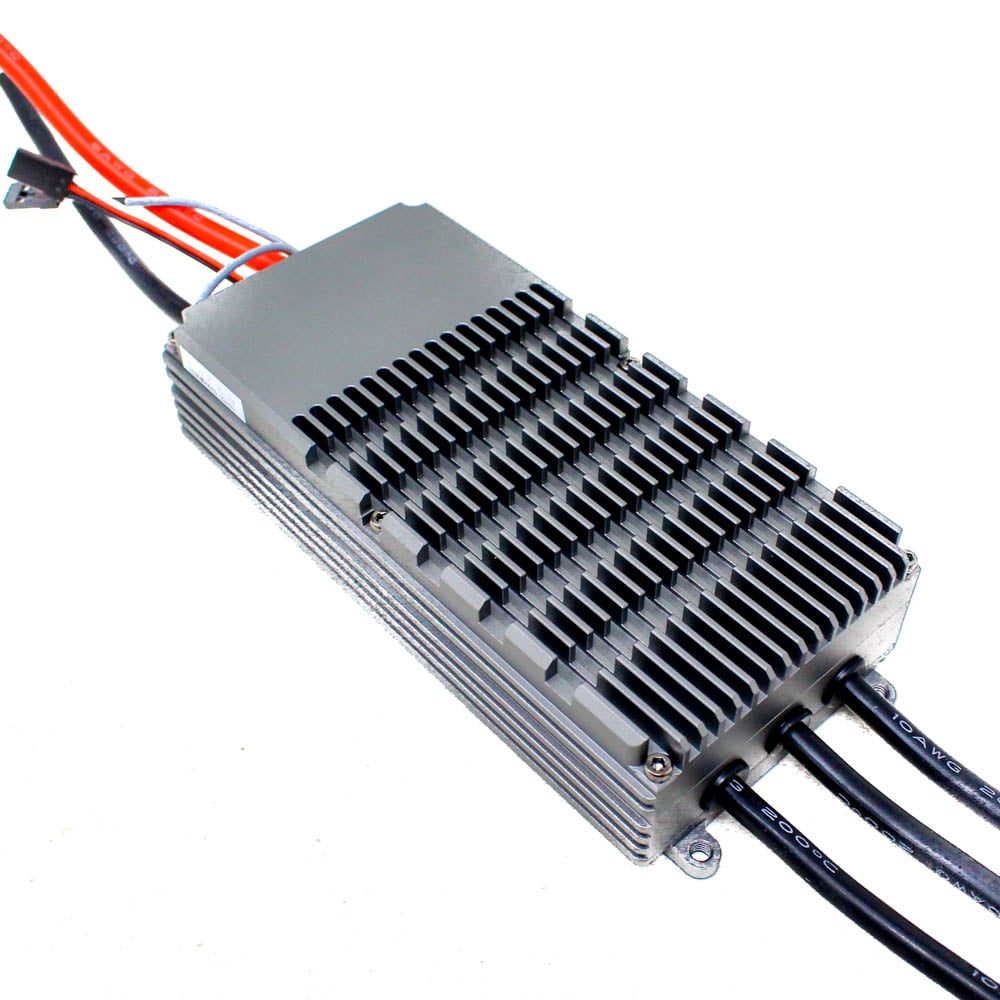

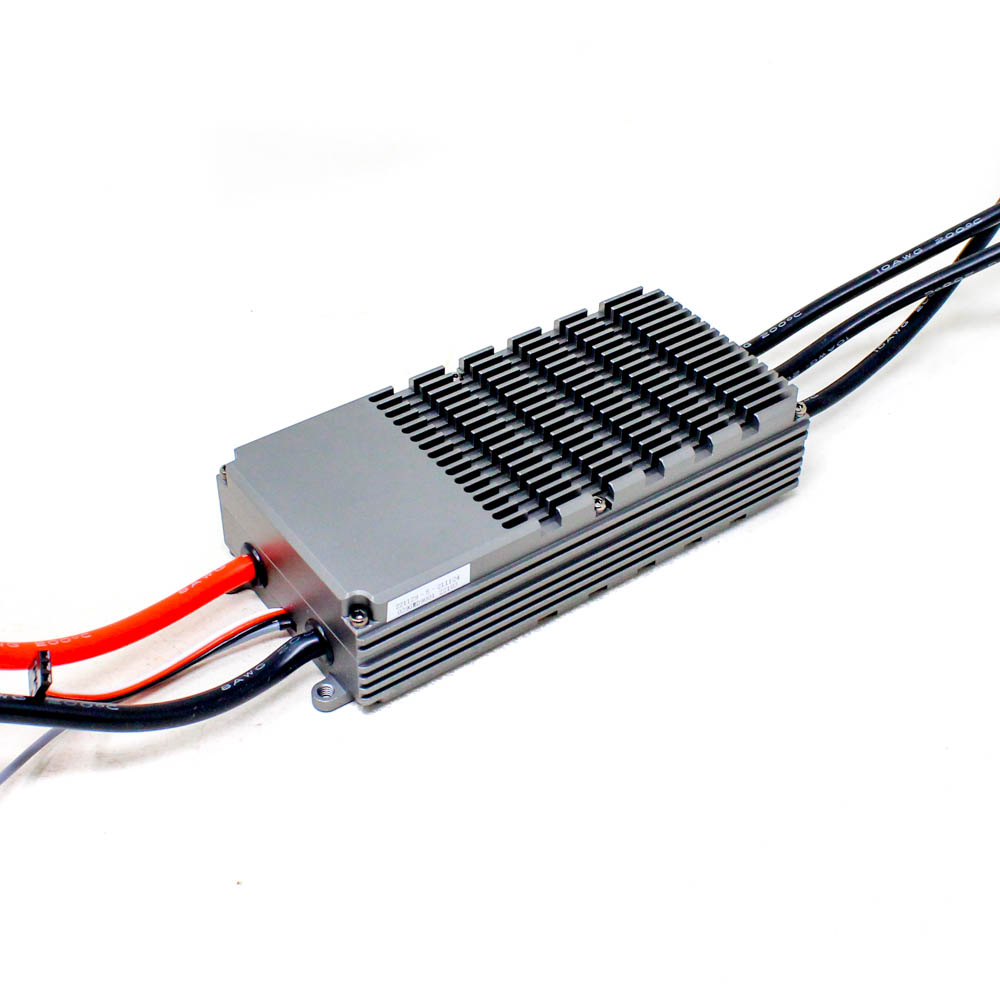

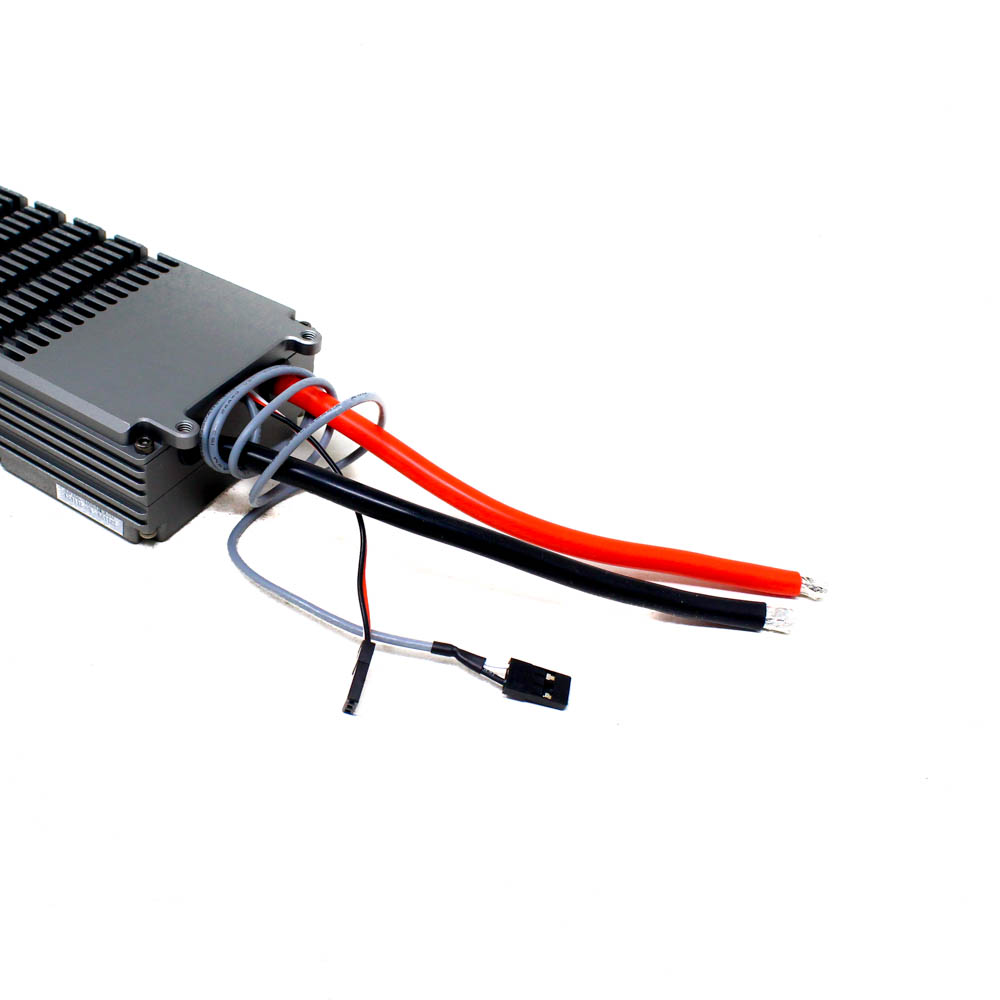

The Thunder 200A 24S Powerful ESC can be used for heavy-duty application motors. The ESC has full Metal body


Features:

  1. Easy to use, stable and reliable, strong anti-interference ability, good speed regulation performance.
  2. Muti-safety protection: low-voltage protection, high-voltage protection, overcurrent protection, over-temperature protection, startup failure protection, stall protection, and lost signal protection.
  3. Photoelectric isolation PWM control interface.
  4. Isolated serial port data post back: post back supply voltage, RPM, current, ESC temperature, and debug data.
  5. Extraposition temperature sensor, temperature measurement precision.

Package Includes:

1 x T Motor Thunder 200A 24S ESC



Additional information
Model

Thunder 200A 24S

Support LIPO (S)

18-24S

Continuous output current (A)

150A

Instantaneous output current

200A (Less than 10s)

BEC function

No

Operating ambient temperature(℃)

-20~+65

Operating Humidity(ï¼…)

15~85 RH

Waterproof Level

Moisture resistant grade

Maximum support speed

100

,

000 RPM (electrical speed)

Throttle refresh frequency

50-400HZ

Input signal level

3.3V-5V

Length (mm)

155

Width (mm)

65

Height (mm)

45

Weight (gm)

630
