₹1,898.45 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹1,803.53 (Including tax) |
11 - 20 | 8% | ₹1,746.56 (Including tax) |
21 - 40 | 10% | ₹1,708.61 (Including tax) |
41 - 100 | 12% | ₹1,670.63 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

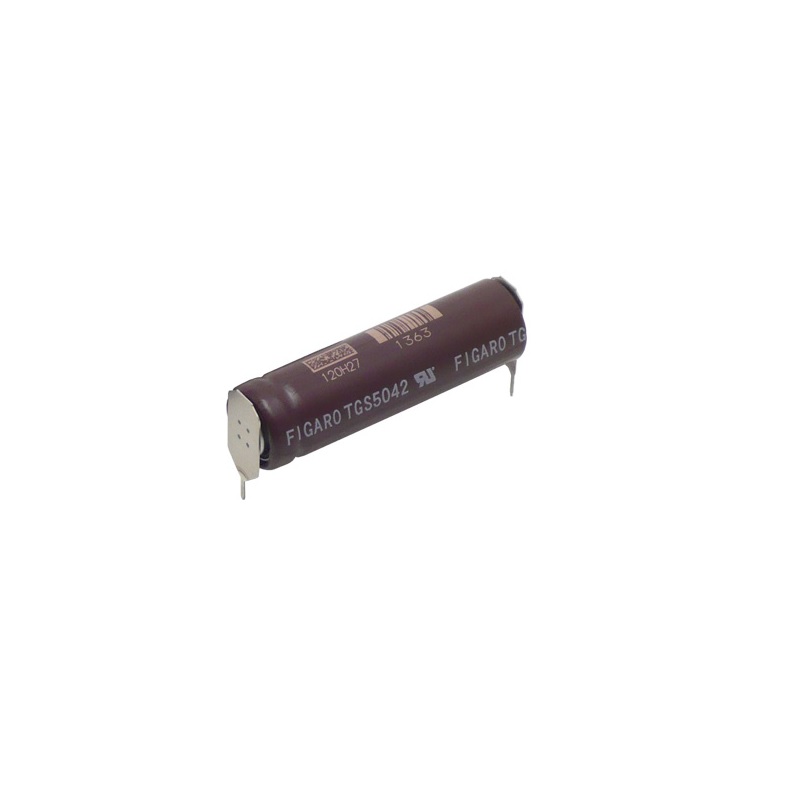

Figaro’s TGS5042 is a battery-operable electrochemical sensor which offers several advantages over traditional electrochemical sensors. Its electrolyte is environmentally friendly, it poses no risk of electrolyte leakage, can detect concentrations as high as 1% CO, operates in a range from -5˚ and +55˚C, and it has lower sensitivity to interferant gases. With long life, good long-term stability, and high accuracy, this
sensor is the ideal choice for CO detectors with digital displays. OEM customers will find individual sensor data printed on each sensor in barcode from, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking. TGS5042 utilizes a standard AA battery-sized package.
Note: for more technical details go through Datasheet in the attachment section
1 x Figaro TGS5042-A00 Carbon Monoxide Sensor Industrial safety
Model No. |
TGS5042-A00 |
---|---|
Target Gases |
Carbon monoxide |
Typical detection range |
0 ~ 10 ,000ppm |
Output current in CO |
1.2~2.4nA/ppm |
Baseline offset(*1) |
<±10ppm equivalent |
Operating & storage temperature (*2,*3) |
-5ËšC ~ +55ËšC |
Operating humidity |
5 ~ 99%RH (no condensation) |
Response time (T90) |
within 60 seconds |
Standard test conditions |
20±2˚C ,40±10%RH |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
Out of stock
Heater voltage |
5.0±0.2V DC |
---|---|
Circuit Voltage |
5.0±0.2V DC |
Heater Current |
56±5mA |
Minimum impedance between Pin#2,3 and GND |
2.5MΩ |
Operating conditions |
0Ëš~40ËšC ,30~95%RH |
Temperature differential between inside and outside detector casing |
≤10˚C max. (see NOTE 1) |
Test gas conditions |
1250±100ppm iso-butane in air at 20˚±2˚C ,65±5%RH |
Circuit conditions |
VH=5.0±0.05V DC VC=5.0±0.05V DC |
Out of stock
Product Name |
Figaro TGS 2600 Air Quality Sensor |
---|---|
Input Voltage (V) |
5.0±0.2V AC/DC |
Load Resistance |
variable 0.45kΩ min. |
Heater Resistance (Ω) |
approx 83Ω at room temp. (typical) |
Heater current (mA) |
42±4mA |
Heater power consumption (mW) |
210 |
Sensor Resistance (kΩ) |
10kΩ ~ 90kΩ in air |
Sensitivity (change ratio of Rs) |
0.3~0.6 Rs (10ppm of H2)/ Rs air |
Out of stock
Model No. |
TGS3870-F00 |
---|---|
Circuit Voltage |
5.0±0.2V DC pulse |
Load Resistance |
variable (>0.75kΩ) |
Sensing Principle |
MOS type |
Sensor Resistance |
0.3kΩ~5.0kΩ in 3000ppm methane 2kΩ~40kΩ in 200ppm CO |
Standard Package |
Plastic base and metal can |
Target Gases |
Methane and Carbon Monoxide |
Test Gas Conditions |
Target gas in air at 20±2˚C ,65±5%RH |
Out of stock
Model number |
TGS5141-P00 |
---|---|
Output current in CO |
1.2~3.2nA/ppm |
Target Gases |
Carbon monoxide |
Typical detection range |
0 ~ 5 ,000ppm |
Baseline offset(*1) |
<±10ppm equivalent |
Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
Operating humidity |
10 ~ 95%RH (no condensation) |
Response time (T90) |
within 60 seconds |
Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
Standard test conditions |
20±2˚C ,40±10%RH |
Weight |
approx. 2.5g |
Out of stock
