₹11,533.15 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹10,956.48 (Including tax) |
11 - 20 | 8% | ₹10,610.48 (Including tax) |
21 - 40 | 10% | ₹10,379.83 (Including tax) |
41 - 100 | 12% | ₹10,149.17 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

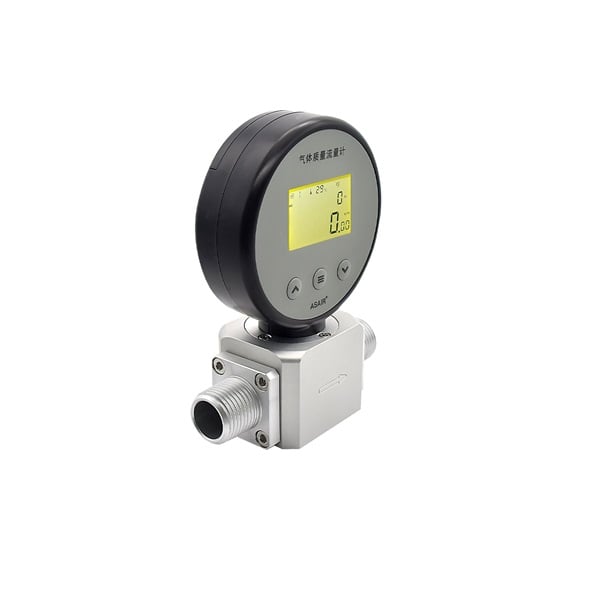

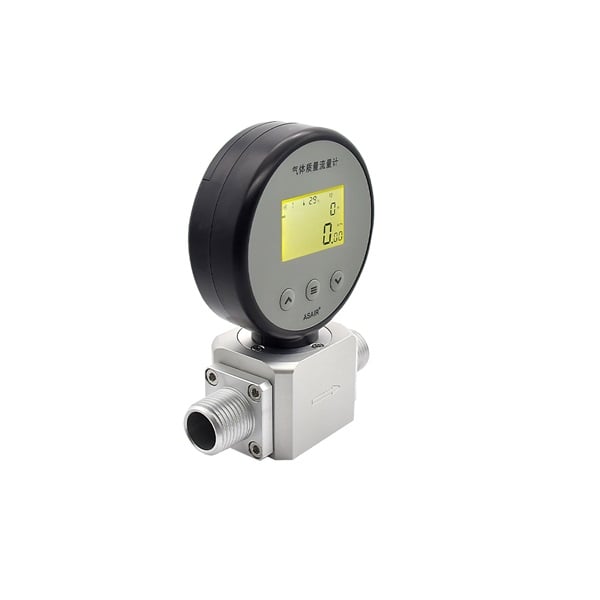

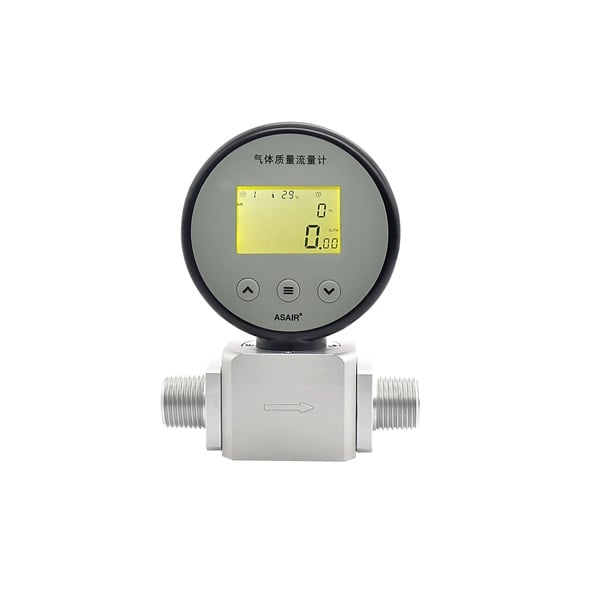

AMS2106 digital display gas mass flowmeter series is based on the thermal principle and calculates the mass flow rate of the measured gas by measuring the resistance change. The sensor adopts the self-developed MEMS mass flow chip, which has excellent performance, stability and reliability, and has the characteristics of high accuracy, good stability, high and low temperature resistance, good linearity, and quick response.
1 x AMS2106 Digital Display Gas Mass Flow Meter -200L/min
Measure Range |
0~200L/min(standard)Customizable with different ranges |
---|---|
Accuracy |
±3%FS |
Response Time ( μS) |
≤2000 |
Operating Power |
Battery or external 9~24V DC |
Output |
RS485 |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Particle Measurement Range |
0.3~1.0μm; 1.0~2.5μm; 2.5~10μm |
---|---|
Particle Counting Efficiency |
50%@0.3μm ,98%@>=0.5μm |
Resolution of Particle Mass Concentration |
1μg/mᶟ |
Temperature Measurement Range |
0~99℃ |
Temperature Measurement Resolution |
0.1℃ |
Humidity Measurement Range |
0~99% |
Humidity Measurement Resolution |
0.1% |
Humidity Measurement Accuracy |
±2% |
Single Response Time |
<1s |
Comprehensive Response Time |
≤10s |
DC Supply Voltage |
Typ: 5V Min: 4.5V Max: 5.5V |
Working Current |
≤100mA |
Standby Current |
≤200mA |
Data Interface Level |
L<0.8V ,H>2.7V ,maximum level voltage 3.3V |
Working Temperature Range |
10~50℃ |
Working Humidity Range |
0~99% |
Storage Temperature Range |
40~80℃ |
Out of stock
Detection Gas |
Oxygen concentration |
---|---|
Detection range |
0~100% |
Working Pressure Range |
0.5~2.0Bar |
Working Voltage |
3.3~5.5V DC |
Output Signal |
I2C ,UART (0~3V) ,analog voltage |
Lifespan |
>2 years (in air) |
Working Humidity Range |
0-99% RH (non-condensing) |
Working Temperature Range (°C) |
-20°C ~ +50°C |
Product Dimensions |
32mm x 27mm/1.26 x 1.06 inch |
Response Time ( μS) |
<5S |
Mounting Holes Diameter (mm) |
inner diameter 3.1mm(0.12 inch)/outer diameter 6mm(0.24 inch) |
Out of stock
Detection Gas |
Hydrogen (H2) |
---|---|
Detection range |
0~1000ppm |
Working Voltage |
3.3~5.5V DC |
Working Current |
<5mA |
Output Signal |
I2C ,UART (0~3V) ,analog voltage |
Working Temperature |
-20~50℃ |
Working Humidity |
15~90%RH (non-condensing) |
Storage Temperature |
-20~50℃ |
Communication Protocol |
I2C ,UART and analog |
Compatibility |
Arduino ,ESP32 ,Raspberry pi |
Storage Humidity |
15~90%RH (non-condensing) |
Lifespan |
>2 years (in the air) |
Adapter Plate Size |
37 x 32mm |
Out of stock
Out of stock
Gas Detection |
Carbon Dioxide (CO2) |
---|---|
Operating Voltage |
4.5 ~ 5.5V DC |
Average Current |
<85mA |
Output |
UART |
Measuring Range |
0 ~ 50000ppm |
Accuracy |
± (50ppm + 5% reading) |
Preheating Time |
3min |
Response Time |
T90 < 30s |
Operating Temperature |
0 ~ 50 ℃ |
Operating Humidity |
0 ~ 95% RH (no condensation) |
Service Life |
>5 years |
Out of stock
Out of stock
Model No. |
TGS2610-C00 |
---|---|
Heater Current |
56±5mA |
Heater Resistance |
approx 59Ω at room temp. |
Heater Voltage |
5.0±0.2V DC |
Load Resistance |
variable 0.45kΩ min |
Sensing Principle |
MOS type |
Circuit Voltage |
5.0±0.2V DC |
Sensor Resistance |
1.0~10.0kΩ in 1800ppm iso-butane |
Standard Package |
TO-5 metal can |
Target Gases |
Butane ,LP gas |
Test Gas Conditions |
iso-butane in air at 20±2˚C ,65±5%RH |
Heater power consumption |
280mW VH = 5.0V DC |
Out of stock
Model No. |
TGS2611-C00 |
---|---|
Sensing Principle |
MOS type |
Standard Package |
TO-5 metal can |
Target Gases |
Methane ,Natural Gas |
Heater Voltage |
5.0±0.2V DC |
Circuit Voltage |
5.0±0.2V DC |
Load Resistance |
variable 0.45kΩ min. |
Heater Resistance |
approx 59Ω at room temp. |
Heater Current |
56±5mA |
Heater power consumption |
280mW±25mW |
Sensor Resistance |
0.68~6.8kΩ in 5000ppm methane |
Test Gas Conditions |
Methane in air at 20±2˚C ,65±5%RH |
