Description

This T-motor 70A 4-6S Flame Type ESC featured efficient and reasonable dissipation, layered structure. Compatible with U12 Motors and specially designed for multi-rotors. Tiger Flame ESC can give a continuous current of 70A, and a peak current of up to 80A (10S).

Purchase DATA LINK V2 for ALPHA ESC programming.

Features:

1. Better compatibility with MN5208 MN5212 U8
2. Layered structure
3. Refresh rate500Hz, supporting 4-6s lipo
4. PCB with Nano Technology
5. CNC aluminum alloy enclosure
6. Efficient Heat Dissipation
7. Low Power Consumption
8. Widely used in the special domain as UAV for Agriculture, Searching etc.

Specifications:

1. Rated Continuous Current: 70A
2. Peak Current: up to 80A (10S).
3. Supply Power: 4-6S
4. Refresh Rate: 500Hz
5. BEC: No

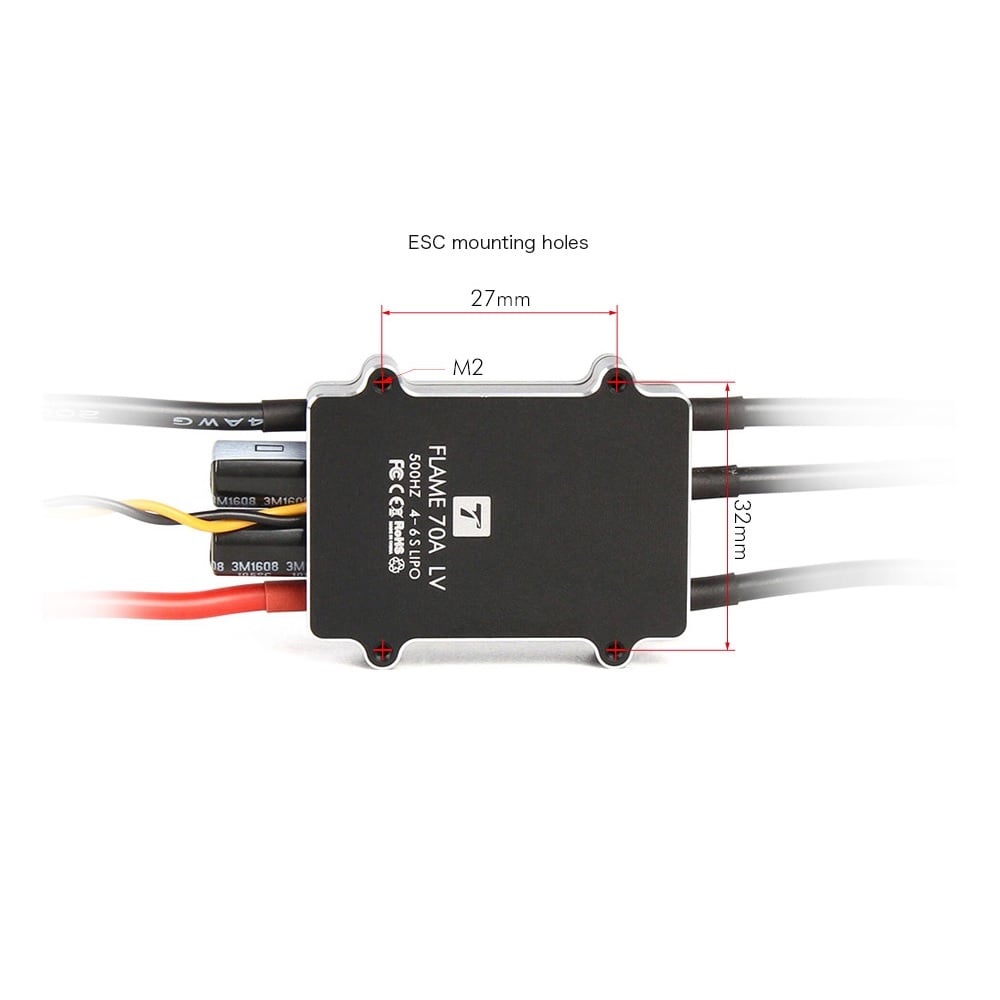

6. ESC adjusted mounting hole：27  x 32mm
7. External Dimension of electrical adjustment：56.6 x  36.4  x 16.1 mm
8. Weight (including line): 55g
9. Support Voltage（14S: MN5208 MN5212 U8 100KV/135KV/170KV

Package Includes:

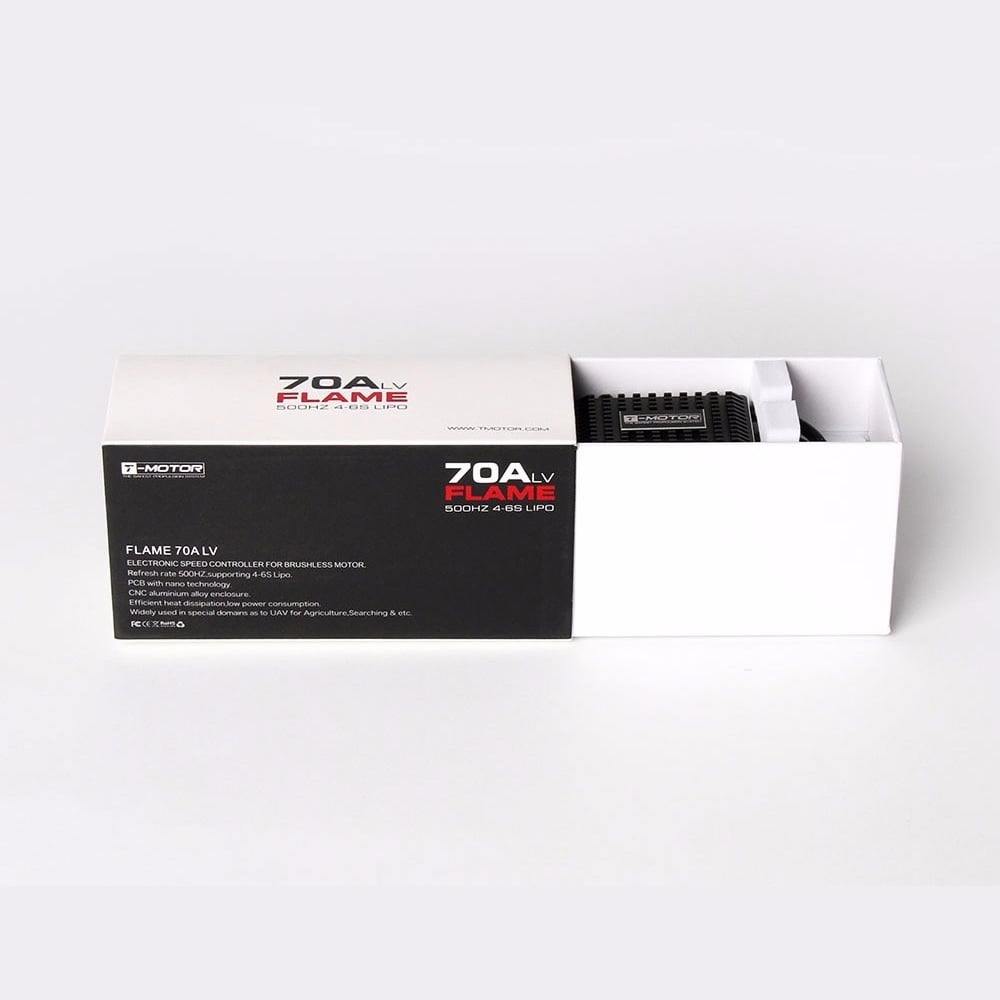

1 x T Motor FLAME 70A 6S ESC
