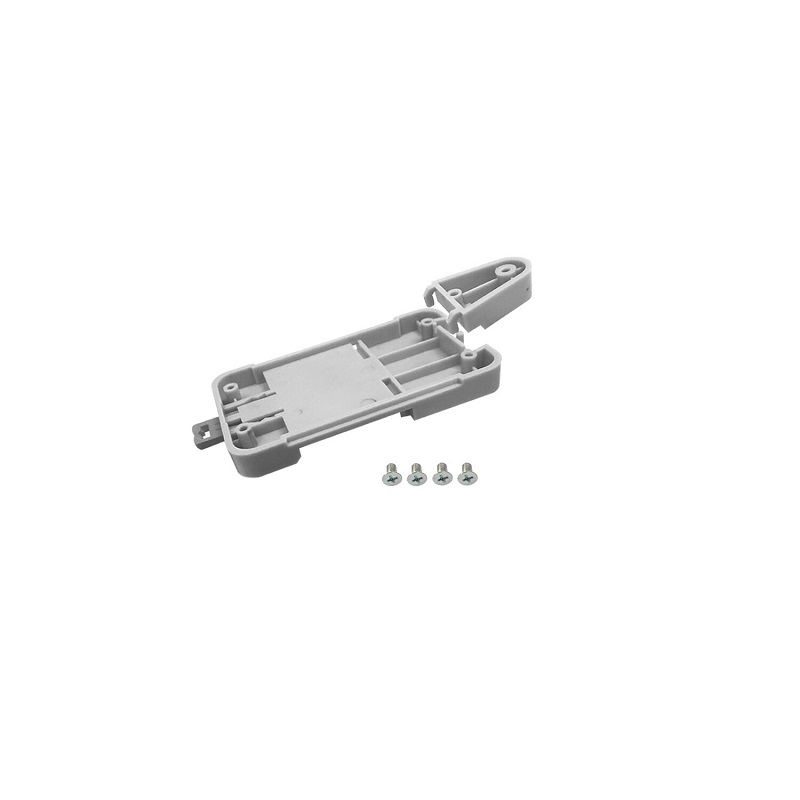

Sonoff DR DIN Rail Tray with 4 Screws for Basic / RF / TH10 / TH16 / POW Switch is a switchboard solution for Sonoff products. It allows installing the Sonoff products to the DIN rail-mounted switch. Most of the Sonoff products are not DIN rail mounted, which makes it difficult to put the Sonoff products into the switchboard. Sonoff DR can work with most of our Sonoff products, including Sonoff Basic, Sonoff RF, Sonoff Pow, Sonoff TH10/16, Sonoff Dual, Sonoff G1. The installation is very simple. The Sonoff DR has a blue part, which allows pushing to fix the switch to DIN rail or pull to take it down. No external tools are required.

Features:

1. The installation is very simple.
2. The material is fire-retardant ABS.
3. The Sonoff DR comes with 4*M3 screws, which perfectly fit Sonoff’s original holes.

Package includes:

1 x Sonoff DR DIN Rail Tray with 4 Screws for Basic / RF / TH10 / TH16 / POW Switch.

Do you want to convert your old AC home switch to a smart one that works on the wifi network and functions on alexa/google voice commands? this all-new SONOFF MINI R3 16A Wifi Bluetooth Smart Switch will serve the purpose. this tiny smart module will hide inside your switchboard keeping your outer look and switch functioning as the same as it was before and will make your switch smart.

The maximum load current of MINI R3 can be up to 16A that making it a powerful solution to smarten your appliances. you can Connect and control the MINI R3 with your existing home automation system like Home Assistant via LAN.

Moreover, you can use the MINI R3 is a smart switch with the gateway function of “eWeLink-Remote”. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or scene switch R5(coming soon).
If your switch box does not have a neutral wire, a collocation of MINI R3 and S-MATE can be installed and used.

Advantages:

1. Supports 2.4G WiFi network.
2. Support Upto 16 A Load.
3. Supports status tracking: device status is timely provided to the EWeLink.
4. Supports remotely turning on or off connected appliance/light.
5. Works with Alexa device Echo, Echo Dot.
6. Works with Google Home/Nest.

Features:

1. Control your home appliances with the app.
2. Ask devices to turn on/off just by voice command.
3. Support old rocker switch light switch to control devices as before
4. Create smart scenes to trigger groups of SONOFF devices on/off via tapping on your phone.
5. Check the device status change on your phone in real time.
6. Run the device on your phone albeit with no normal Wi-Fi connection.
7. Keep the device in status before power failure when the electricity system is restored.

Package Includes:

1 x Sonoff mini R3 16A Wifi Bluetooth Smart Switch Work with Alexa/Google home

This is a Sonoff RFR3 Intelligent Switch with the DIY capability that makes it possible to control connected devices via the eWeLink directly from your phone or ask it to turn on/off devices with Alexa and for Google Assistant. The LAN control is designed for situations in which no available WiFi connection, or an unsteady WiFi network environment. Amazingly, the module with unique DIY function, assembly part of it with ordinary appliances to develop the module more compact and intelligent.

Features:

1. Manage devices from your phone, anywhere, and anytime.
2. Support for Alexa & Google Assistant to turn on/off devices.
3. Make one device trigger on/off another one or groups of devices.
4. Control devices with a remote controller with 433MHz

Package Includes:

1 x Sonoff RFR3 Intelligent Switch Supports Alexa Voice Control

This is a Sonoff DW1 433mhz Door Magnetic Sensor for Sonoff RF Bridge which triggers the transmitter by separating the magnet from the transmitter, then the transmitter will send an alarm message and pushes it to APP.it is used to trigger alert messages when the door /window is opened and closed. With this intelligent wireless magnetic door detector of separation by triggering, mainly opening of door and window and any other devices can be opened and closed and Make reports for devices out of close and low battery.

Features:

1. The alarm can work with mobile networks.
2. The door alarm can work with this module.
3. multi-person sharing control

Package Includes:

1 x Sonoff DW1 433mhz Door Magnetic Sensor for Sonoff RF Bridge(Without Battery)

SONOFF Stackable Power Meter realizes smart management with overload protection, metadata monitoring, and electricity statistics. The SPM-Main communicates with the cloud through Ethernet or WiFi and communicates with the SPM-4Relays through RS-485, which allows for multi-terminal and stable long-distance data transmission.

Want to know the power consumption changes of each stall? Want to realize the unified management of the whole shopping mall? By checking eWeLink App on your mobile phone, you can monitor electricity usage without leaving home. Through the eWeLink App, you can obtain power consumption through a touch.

Once the overload protection is enabled, you do not need to worry about electrical appliances being burned out, which helps remove potential safety hazards. In addition, you can also set the overload delay activated to avoid spurious triggering. One SPM-Main can be connected to 32SPM-4Relays. Each SPM-4Relay has 4 isolated channels to help the tenant to solve the problem in electric charge sharing. Each channel can support a maximum current of 20A, with no fear of high power load.

Get Over 180 days of Energy Usage Data Available SD card local storage. You can insert the SD card into SPM-Main to download and check over 180 days of your energy usage history at any time of the day through HTTP API. No need to worry about missing important information.

Features:

1. Connect up to 32 SPM-4Relays – One SPM-Main can be connected to 32 SPM-4Relays. Each SPM-4Relay has 4 isolated channels to help you manage devices more conveniently.
2. Power metering – You can monitor the power consumption by checking eWeLink App on your mobile phone. Obtaining current, voltage, and power easily.
3. Max. 20A/Gang – Each channel can support a maximum current of 20A, with no fear of a high power load.
4. Communication through RS-485 – The SPM-Main communicates with the SPM-4Relays through RS-485, which allows for multi-terminal and stable long-distance data transmission.
5. Overload Protection – Once the overload protection is enabled, it can protect your devices from burning out.

For more technical details, go through the datasheet in the attachments

Package Includes:

1 x Sonoff Smart stackable power meter- SPM Main Unit Only

1 x User Manual

Wireless switch for temperature and humidity monitoring which can remotely monitor and set the temperature and humidity range for switch on or off the connected appliances via the iOS or Android eWeLink APP.

Just as its name indicates, the temperature and humidity monitoring device Sonoff TH 320D supports two 20A  maximum current power supply specifications.

Create Smart Scenes

• The WiFi switch supports presetting the temperature or humidity range.
• When the temperature or humidity of the home environment is within the range,
• will automatically turn the connected devices on or off.

LCD screen

• Real-time monitoring of temperature and humidity data, the screen refreshes every 5 seconds.
• Sonoff TH Elite supports either 16 Ampere or 20 Ampere loads and presents, on the front, an unprecedented display that allows
• consult live the reading of the temperature detected (as well as of the relative humidity, if the sensor foresees it).

Reliable control of temperature and humidity

• TH supports LAN control, disconnected Wi-Fi will not affect the operation of your device.
• The sensor connector is upgraded to RJ11 , supporting hot plug making the connection more stable and reliable .
• You can set 8 automatic control programs to save electricity bills and create a comfortable environment.

Historical data of temperature and humidity up to 6 months

• Support to review historical temperature and humidity data by hour, day and month.
• History data from the last 6 months can be exported in .xlsx format and with an accuracy of one hour.

Timely notifications

• TH continues to monitor temperature and humidity in real-time once the preset threshold or is reached the power on/off status of the device, you will receive a Push notification on your phone.

Automation of scenes

• Use other smart devices to achieve the automation you want.
• In the smart scene, temperature, humidity, power on, power off support setting as a trigger,
• switching on, switching off, inversion during the execution of actions. Support adding SONOFF devices
• a Home Assistant for control and automation via the eWeLink add-on.

It supports IFTTT

• Support to be added to IFTTT to achieve automation with devices from other brands.
• Add it to the home assistant
• Add SONOFF devices to Home Assistant for control and automation via the eWeLink add-on.
• Voice control
• Working with Amazon Alexa, and Google Assistant, you can query the temperature and humidity values with your voice.

Features:

1. Support to connect 20A Max high load, dry contact output.
2. Real-time monitoring of temperature and humidity data, the screen is refreshed every 5S.
3. Support to review “Temperature/Humidity” history data by hour, day, and month. Historical data for the last 6 month’s scan be exported in .xlsx format and accurate to the hour.
4. Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create a comfortable environment.
5. SONOFF TH Elite WiFi Switch is compatible with Alexa, and Google Assistant, you can query the temperature and humidity values ​​by your voice. Note: THS01 and DS18B20 (RJ9 4P4C) are the sensors of the RJ9 4P4C socket, just plug them into TH Elite to use them. MS01 comes with a free RJ9 4P4C adapter to fit TH Elite.

Specifications:

1. Model: Sonoff THR320D
2. Input Output: THR320D 100-240V ~ 50 / 60Hz 20A max
3. MCU: ESP32
4. Wifi IEEE: 802.11 b / g / n 2.4 GHz
5. Clean Contact: 5-30V, 1A max
6. Working humidity: 5% -95% RH, non-condensing
7. Working temperature -10 ° C ~ 40 ° C (14 ℉ ~ 104 ℉)
8. Supported sensors: THS01, DS18B20, MS01
9. Work with: Amazon Alexa, Google Assistant
10. Material: PC V0
11. Dimensions: 98x54x31 mm

Package Included:

1 x Sonoff THR320D Elite Smart Temperature and Humidity Monitoring Switch
