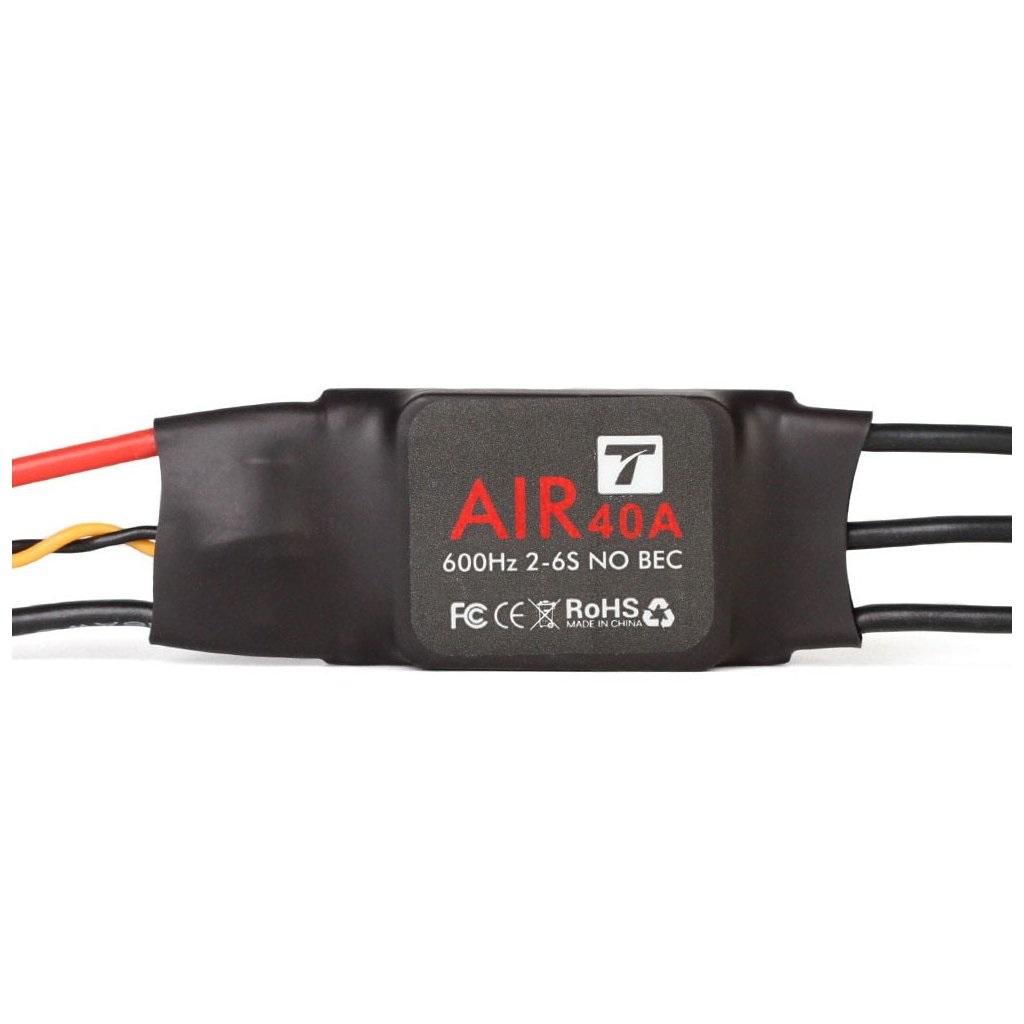

T MOTOR AIR 40A ESC

0 Reviews
Available on backorder

3,323.50

  1. Output: Continuous 40A, Burst 60A up to 10 Secs.
  2. Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
  3. BEC: 3A / 5V (Switch mode).
  4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: Brushless Motor)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24320856

Product details

The T-Motor 40A AIR Multirotor ESC is compatible with various flight-control systems and supports a signal frequency of up to 621 Hz. It has a special core program for multi-rotor controllers that greatly improves throttle response and specially optimized software for excellent compatibility with disc-type motors. The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable. All settings except the timing are preset, making usage simple, highly intelligent and adaptive.


Feature:

    1. Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
    2. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters.
    3. Throttle range can be configured and is fully compatible with all transmitters currently available on market.
    4. Smooth, linear and precise throttle response.
    5. Our pocket-sized Program Card can be purchased separately for extremely easily programming the ESC at the field.
    6. With a program card, you can activate the music playing function of the ESC, and totally there are 15 songs that can be selected

Package includes :

1 x TIGER MOTOR FLAME 60A HV ESC

Additional information

Model

T MOTOR AIR 40A ESC

Maximum RPM

210000

Max. Output Current (Amp)

5

Voltage Regulator

3.3V
