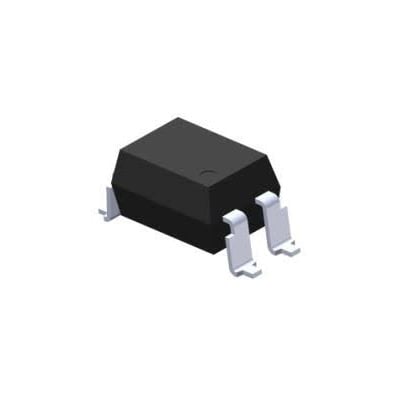

TPC817S1B RAG – 200mW 5000Vrms 1-Ch Optocoupler IC SMD-4 Package

0 Reviews
Available on backorder

56.35

  1. IC Name: TPC817S1B
  2. Package/Case: SMD-4
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24322801

Product details

TPC817S1B RAG – 200mW 5000Vrms 1-Ch Optocoupler 4Pin SMD VCEO=80V, IF=50m, CTR:130~260% DC Input Phototransistor


Specifications and Features:

    1. Current transfer ratio (CTR: MIN.80% at IF=5mA, VCE=5V)
    2. High isolation voltage between input and output (Viso=5000V rms)
    3. Creepage distance 7.62mm
    4. UL Recognized File # E478892
    5. Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC
    6. Halogen-free according to IEC 61249-2-21

Package Includes:

1 x TPC817S1B RAG – 200mW 5000Vrms 1-Ch Optocoupler 4Pin SMD


Note:

  1. Product Images are shown for illustrative purposes only and may differ from the actual product.
  2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.
