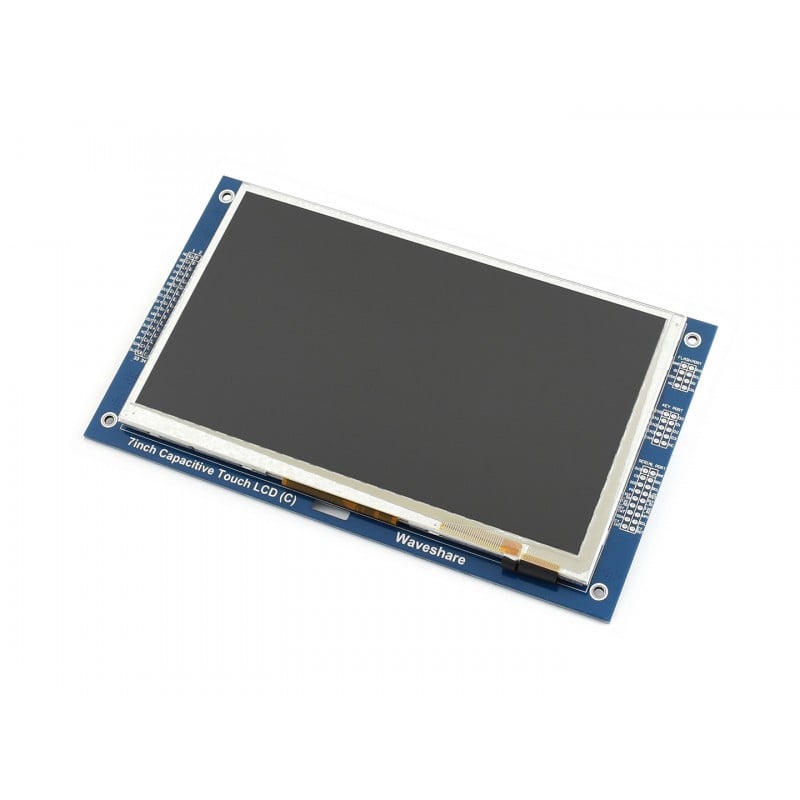

7 inch 800*480 Multicolor Graphic LCD, with capacitive touch screen

Version:

1. Because stop production of GT811, we update this LCD to new version that use GT911. GT911 has higher interference than GT811

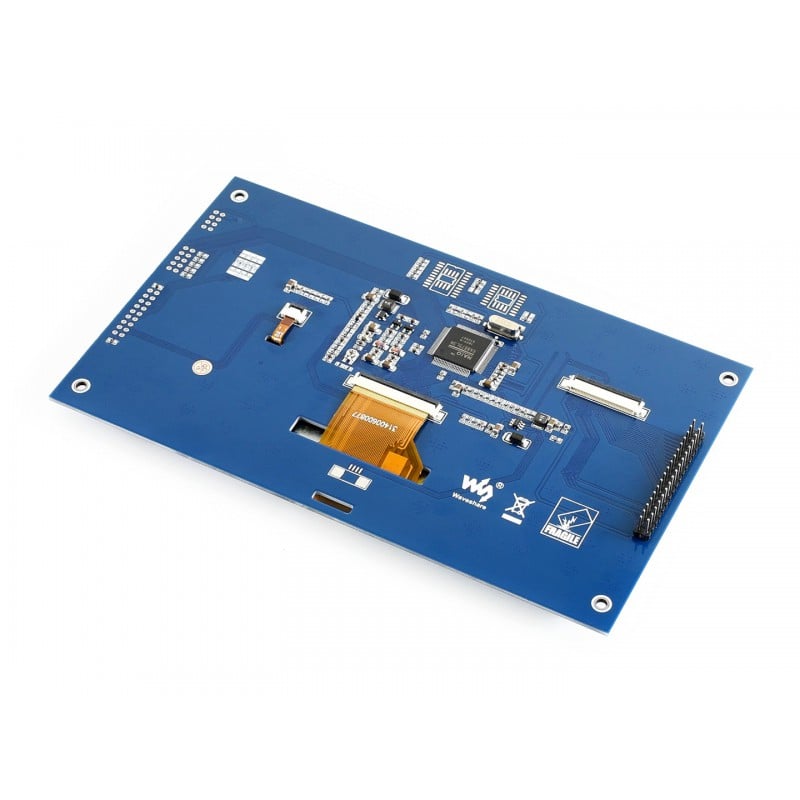

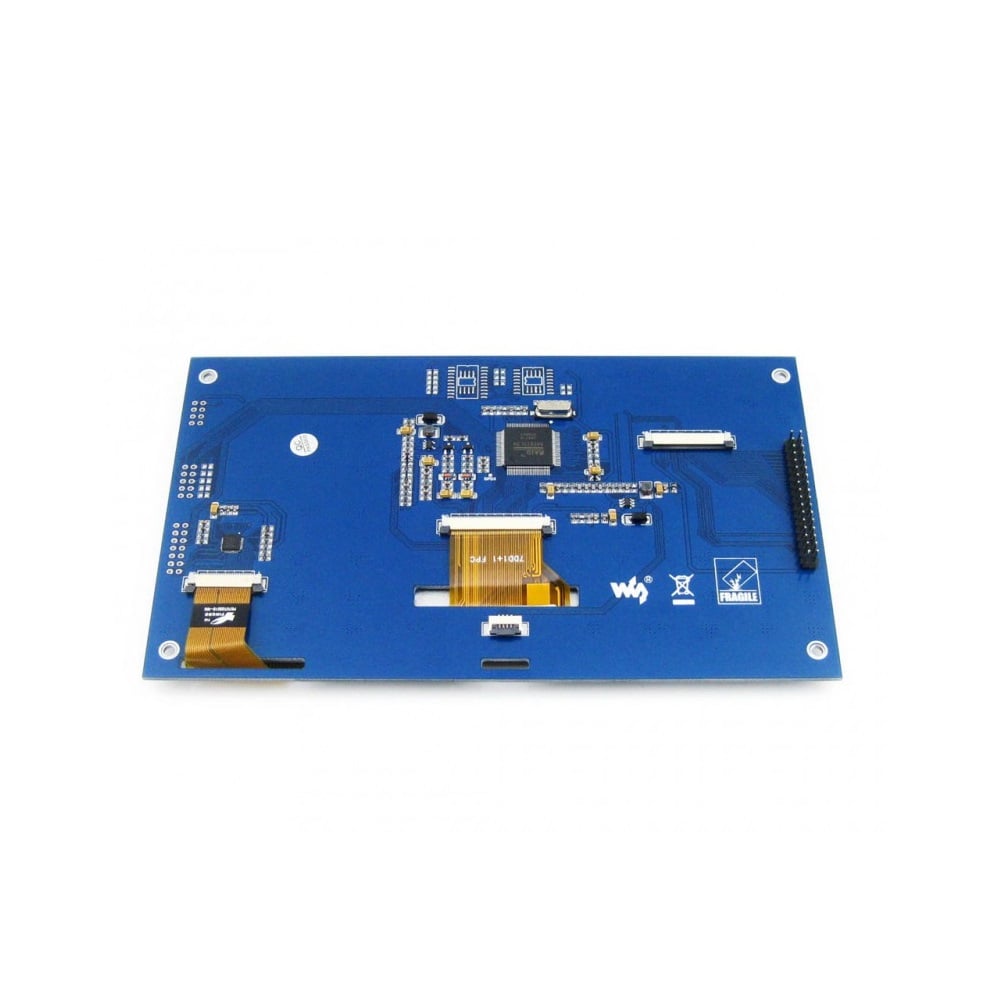

2. You can judge the version according to the image below:

Features:

1. Embedded 10KB Character ROM with Font Size 8×16 Dots and Supporting Character Sets of ISO/IEC 8859-1/2/3/4
2. Block Transfer Engine (BTE) Supports with 2D Function, Compatible with 2D BitBLT Function
3. Embedded Geometric Speed-up Engine
4. Programmable Font Write Cursor
5. 32×32 pixels Graphic Cursor Function
6. Powerful Block Scrolling Function for Vertical or Horizontal Direction
7. Font Enlargement Function X1, X2, X3, X4 for Horizontal/Vertical Direction
8. Font Vertical Rotation Mode Function
9. 256 User-defined Characters with 8×16 dots

Package Includes:

1 x 7inch Capacitive Touch LCD (C)

1 x 40-pin FFC

Grove – 16 x 2 LCD is a perfect I2C LCD display for Arduino and Raspberry Pi with high contrast and easy deployment. 16×2 means two lines and each line has 16 columns, 32 characters in total. With the help of Grove I2C connector, only 2 signal pins and 2 power pins are needed. You don’t even need to care about how to connect these pins. Just plug it into the I2C interface on Seeeduino or Arduino/Raspberry Pi+baseshield via the Grove cable. There won’t be complicated wiring, soldering, worrying about burning the LCD caused by the wrong current limiting resistor.

Features:

1. Display construction: 16 Characters * 2 Lines
2. Display mode: STN
3. On board MCU
4. I2C-bus interface
5. Support English and Japanese fonts

Specifications:

1. Model: 16 x 2 LCD
2. Voltage: 3.3V/5V
3. Interface: I2C
4. Backlight color: Red
5. Font color: Black
6. Dimensions: 8 x 4 x 1mm
7. Weight: 33g

Packages Includes:

1 x Seeed Studio Grove – 16 x 2 LCD (Black on Red)

The gen4 4.3” Diablo16 Integrated Display Modules are part of the latest gen4 series of modules Designed and Manufactured by 4D Systems.

The gen4 series was designed specifically for ease of integration and use, with careful consideration for space requirements and functionality.

These specific gen4 modules feature a 4.3” colour TFT LCD display, and come with options for Cover Lens Bezel (CLB), Resistive Touch and Capacitive Touch. They is powered by the well-known 4D Systems Diablo16 Graphics Processor, which offers an array of functionality and options for any Designer / Integrator / User.

The 4.3” Diablo16 Integrated Display Module features a TFT LCD Display, is capable of Touch Detection, microSD memory Storage, GPIO and Communications, along with multiple millisecond resolution timers, and Audio Generation.

The gen4 Series is 100% compatible with the Workshop4 IDE and its 4 different development environments, providing the user with a wealth of options for programming and controlling their system.

The gen4 series of Integrated Display Modules feature a 30 pin ZIF socket, designed for a 30 pin FFC cable, for easy and simple connection to an application or mother board, or for connecting to accessory boards for a range of functionality advancements.

The gen4 series of modules have been designed to minimise the impact of display related circuitry, and provide a platform suitable for integration into a product. Application boards can sit flush on the back of the gen4 display module if required, as the display related electronics sit inside the plastic mounting base, leaving the application board surface clear for User circuitry.

Features:

1. Powerful 4.3” Intelligent LCD-TFT display module powered by DIABLO16.
2. 480 x 272 Resolution, RGB 65K true to life colours, TFT Screen with integrated 4-wire Resistive Touch Panel (on DT model only), integrated Capacitive Touch (on DCT model only), or non-touch.
3. 6 banks of 32750 bytes of Flash memory for User Application Code and Data.
4. 32Kb of SRAM purely for the User.
5. 16 General Purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs
6. On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes.
7. DOS compatible file access (FAT16 format) as well as low level access to card memory.
8. Dedicated PWM Audio pin driven by WAV files from micro-SD card, and for sound generation, for an external amplifier.
9. Display full colour images, animations, icons and video clips.
10. Supports all available Windows fonts.
11. 4.0V to 5.5V range operation (single supply).

Packages Includes:

1 x 4D System 4.3″ slim Intelligent Display Module and Resistive Touch panel

The TFT Display Shield Board (CY8CKIT-028-TFT) has been designed such that a TFT display, audio devices, and sensors can interface with Cypress’ PSoC 6 MCUs. It comes with the features below to enable everyday objects to connect to the Internet of Things (IoT).

Note: For more technical details go through Datasheet In the attachment Section

Features:

1. Newhaven 2.4″ 240 x 320 TFT display with a Sitronix ST7789 display controller
2. Motion sensor
3. Ambient light sensor
4. PDM microphone

Package Includes:

1 x CYPRESS – INFINEON TECHNOLOGIES Development Board, Display Shield for PSoC6 Development Kits, 2.4″ TFT

13.3inch IPS screen, 1920 x 1080 high resolution.Toughened glass cover. Supports Raspberry Pi and can also be used as a computer monitor.This LCD get power from two interfaces. One is the POWER port, you should connect an 12V/1A power adapter to this interface, the operating current of this interface is about 12V/0.6A. And the other one is the TOUCH interface.

You need to connect this interface to the USB interface of master, its operating current is about 5V/80mAThis product supports Windows 11/10/8.1/8/7 OS Connect 12/1A power adapter to the DC interface of LCD, after connecting the backlight will light.Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems on Raspberry Pi.

Features:

1. 13.3inch IPS screen,1920 x 1080 high resolution.
2. Toughened glass capacitive touch panel, 6H hardness.
3. When works with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems.
4. When working as a computer monitor, supports Windows 11/10/8.1/8/7, ten-points touch.
5. Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
6. 3.5mm audio jack, supports HDMI audio output.
7. Embedded ferrite Hi-Fi speaker(no need for external speakers).
8. Also supports VGA input (specific cable is required and should be purchased separately).
9. 100 x 100mm spacing mounting holes (M4 screw hole) for mounting on the wall.
10. Comes with 60° tilt angle stand.

package include:

1 X Waveshare 13.3inch Capacitive Touch Screen LCD with Case

Capacitive touch screen technology USES the human body’s current induction to work. The capacitive touch screen is a four-layer composite glass screen. The inner surface of the glass screen and the interlayer are coated with one layer of ITO respectively, This conductive material responds when contacted by another electrical conductor, like your bare finger. When you touch your screen, an electric circuit is completed at the point where your finger makes contact, changing the electrical charge at this location.

Most mobile phones have both types of screens. A capacitive touchscreen is a type of touchscreen that is as transparent as glass and does not display any content or glow, it is used to sense the user’s touch actions. The TFT screen is the real screen. This is a10.1 Inch Capacitive Touch Screen LCD from waveshare, with a resolution of 1024×600 and a capacitive touch panel, which supports Raspberry Pi, Jetson Nano, Windows, and Game consoles and can also be used as a computer monitor. This product supports Windows 10 / 8.1 / 8 / 7, Raspbian / Ubuntu / Kali / Retropie, and WIN10 IoT systems single-point touch.

Applications:

1. Industrial Control
2. Charging Pile
3. Smart Home
4. Medical
5. Internet of Things
6. Robot,
7. Vehicle-mounted instruments,
8. Vending instruments
9. Intelligent CNC, cosmetic instruments

Features:

1. 1024×600 high resolution.
2. Capacitive touch control.
3. When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free.
4. When working as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free.
5. Supports BB Black, and comes with an Angstrom image.
6. Multi-language OSD menu, for power management, brightness/contrast adjustment, etc.
7. Supports 100-level backlight adjustment.
8. Firmware is up-gradable to support more new features (continually updated).

Specifications:

1. LCD Type: IPS
2. Interface: RGB
3. Touch Controller: GT7385
4. Touch Panel Type: Capacitive (10-point touch)
5. Backlight: LED
6. Display Size: (mm) 223.00 × 125.28
7. Dot Pitch (mm): 0.2175 × 0.2088
8. Aspect Ratio: 16:9
9. Resolution: 1024 × 600 (Pixel)
10. Power Consumption: TBD
11. Backlight Current: TBD
12. Operating Temperatur:e 0 ~ 70℃

 Packages Includes:

1 x Waveshare 10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel
