Product details

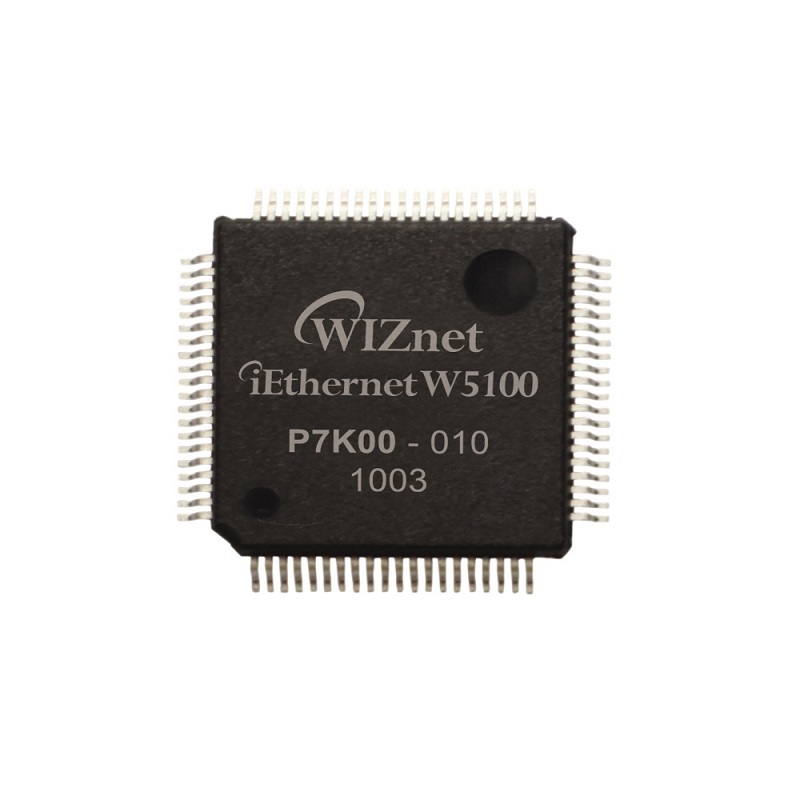

The W5100 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier Internet connection for embedded systems.

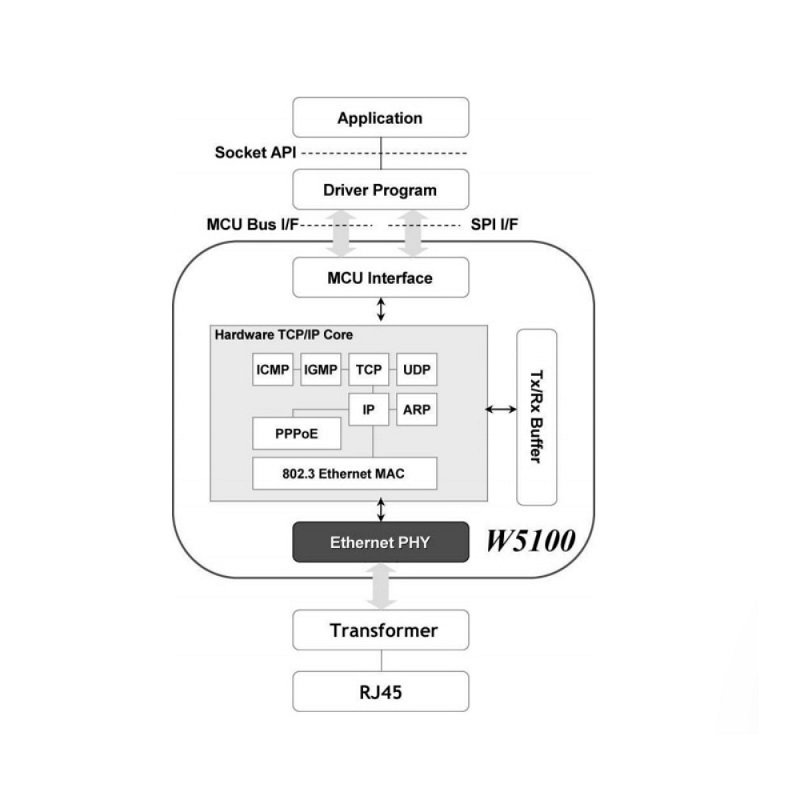

W5100 suits users in need of stable Internet connectivity best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC and PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, …, which has been proven through various applications over many years. W5100 uses a 16ytes internal buffer as its data communication memory.
Note: for more technical details go through Datasheet in the attachment section
Features & Specifications
- Hardwired TCP/IP protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection
- Host Interface : Direct/Indirect Bus & Serial Peripheral Interface (SPI MODE 0, 3)
- 4 Independent hardware socket
- Internal 16Kbytes memory for TCP/IP packet processing
- 10BaseT / 100Base TX Ethernet PHY Embedded
- Support Auto-Negotiation (Full & Half Duplex, 10 & 100 Based)
- Support Auto-MDIX
- 3.3V Operation with 5V I/O signal tolerance
- LED outputs (TX, RX, full/half duplex, Collision, link, speed
Package Includes:
1 x WIZnet W5100
