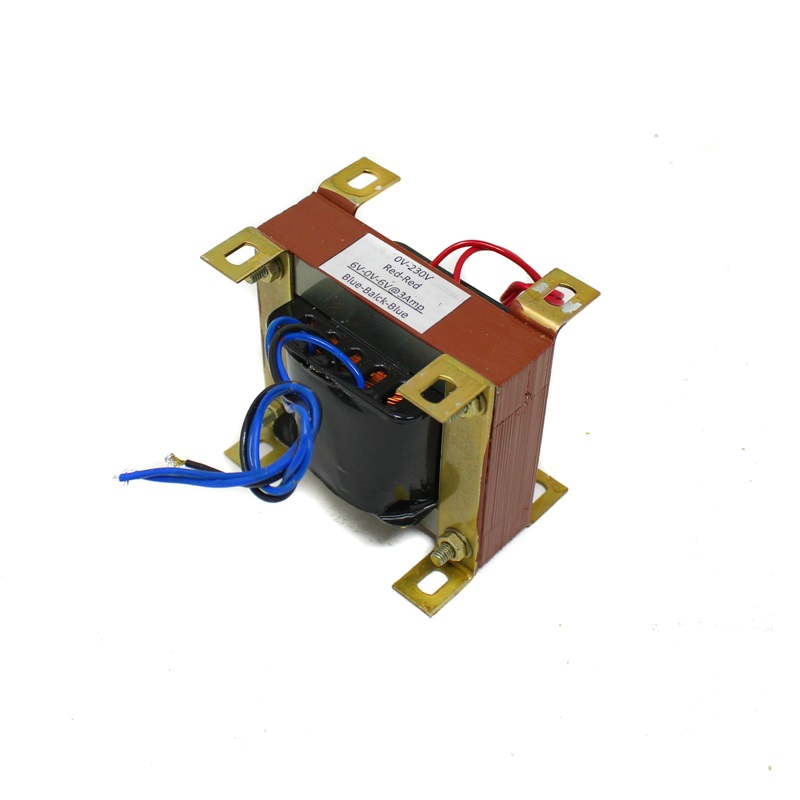

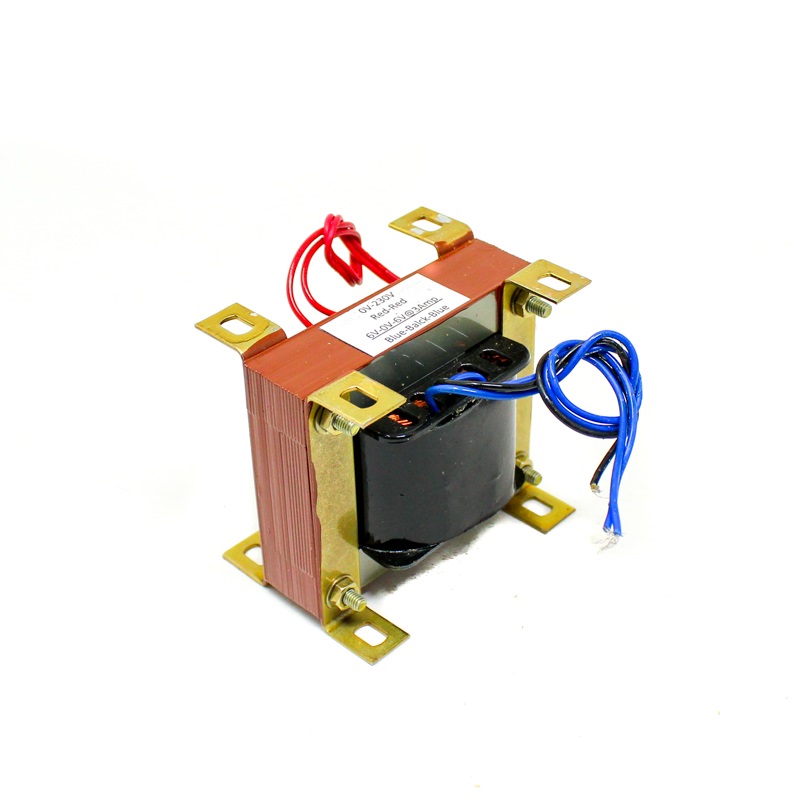

6-0-6 Stepdown Transformer 3A

6-0-6 3Amp Step-Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-centre tapped secondary winding. The transformer has flying coloured insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step-down transformer reducing AC – 230V to AC – 6V.

The Transformer gives outputs of 6V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding.

Features:

1. Soft Iron Core.
2. 3 Amp Current Drain.
3. 100% Copper Winding
4. DIY projects Requiring In-Application High current drain.
5. On chassis AC/AC converter.
6. Designing a Battery Charger.

Package Includes:

1 x 6-0-6 Stepdown Transformer 3A
