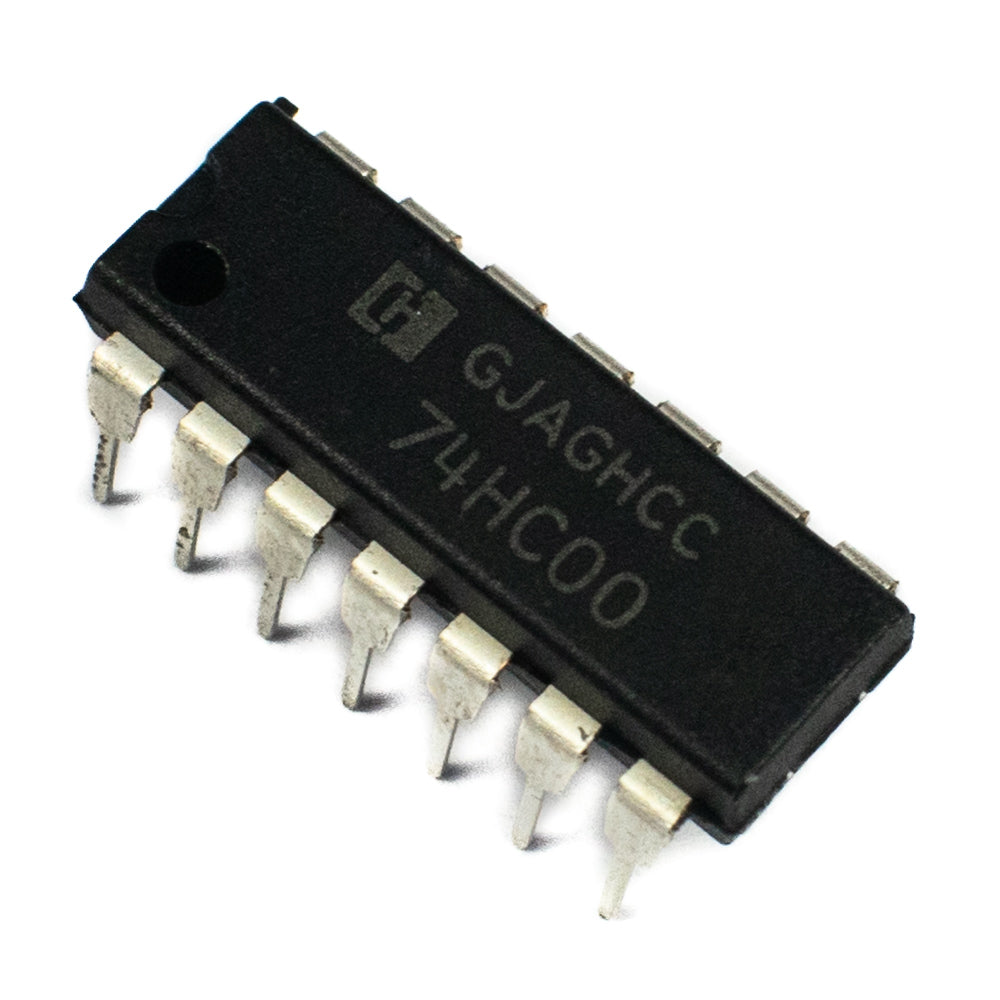

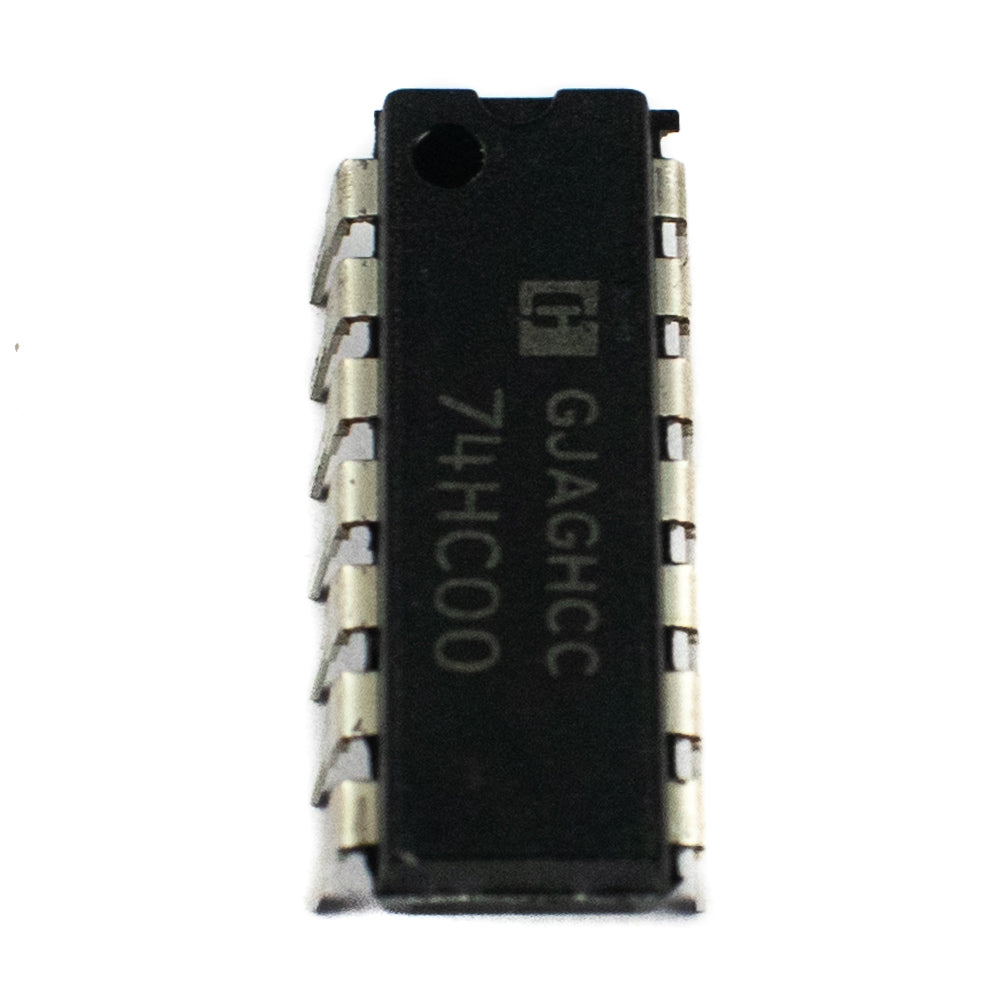

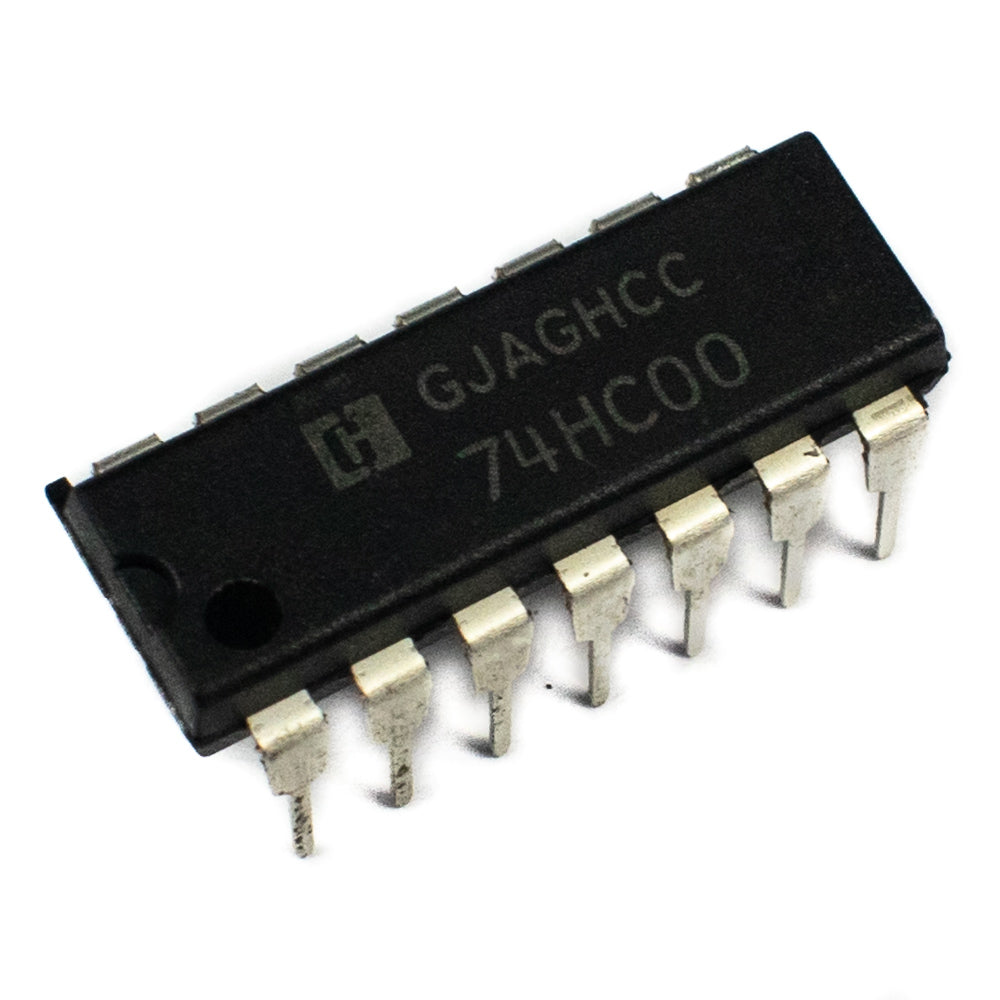

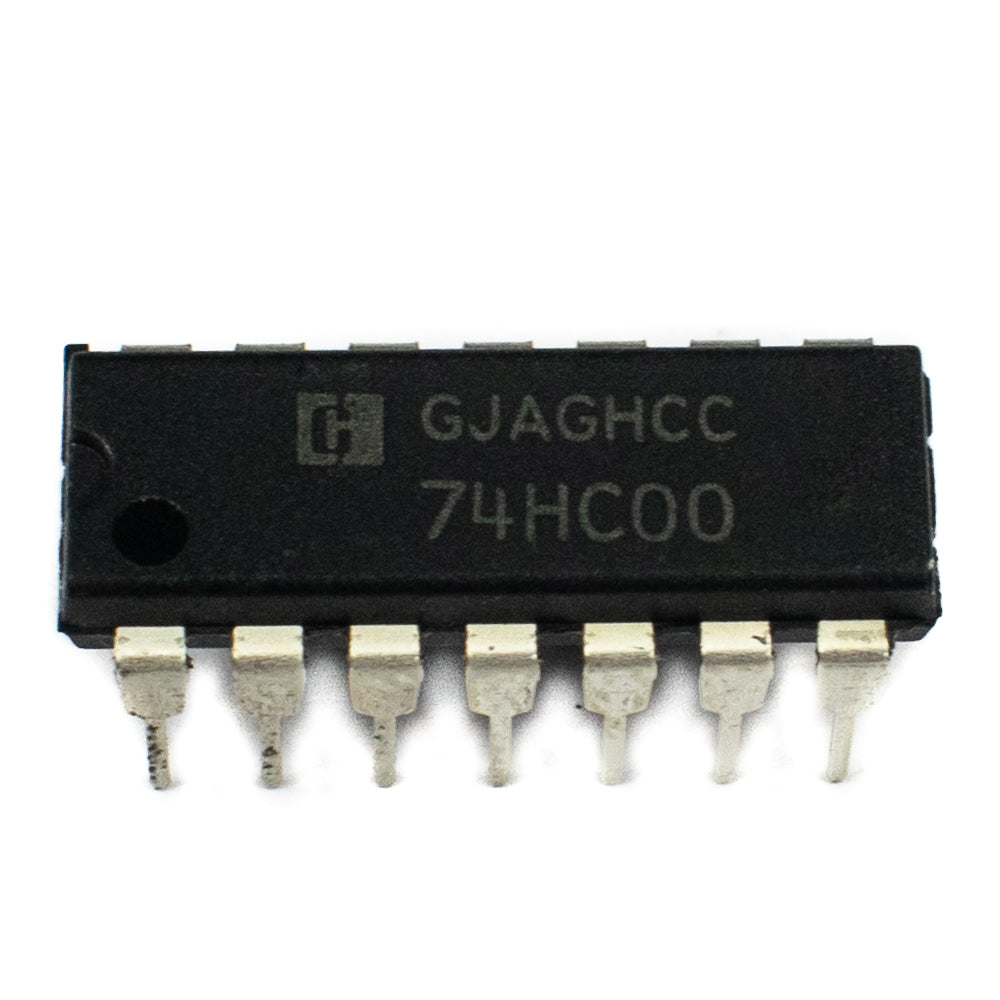

74HC00 Quad 2 Input NAND Gate IC (7400 IC) DIP-14 Package

SKU: RZ24344745 Category: General

₹ 11.50

Out of Stock

Buy 74HC00 Quad 2 Input NAND Gate IC (7400 IC) DIP-14 Package online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 11.27
11 – 30	3%	₹ 11.16
31 – 50	4%	₹ 11.04
51 – 100	5%	₹ 10.93

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24344745

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC00 is one of them. 74HC00 ICs contain 4 independent, 2 input NAND gate. The boolean expression can be written as Y = ( A.B )’ for each NAND gate. Internal Structure of 74HC00 device,

The 74HC00 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 8-9 ns. They can drive 10 LS-TTL loads at a time. This means that the single output pin of the NAND gate can drive 10 TTL-based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.

Specification:

Operating Voltage Range	2.0 to 6.0 V
Package	DIP−14
Input Current	1 uA
Powering Current	20 uA
Output Current at VCC	4 mA
Fan-Out	10 LS-TTL Load
Propagation Delay	8 ns
Temperature Range	-65 °C to +150 °C
