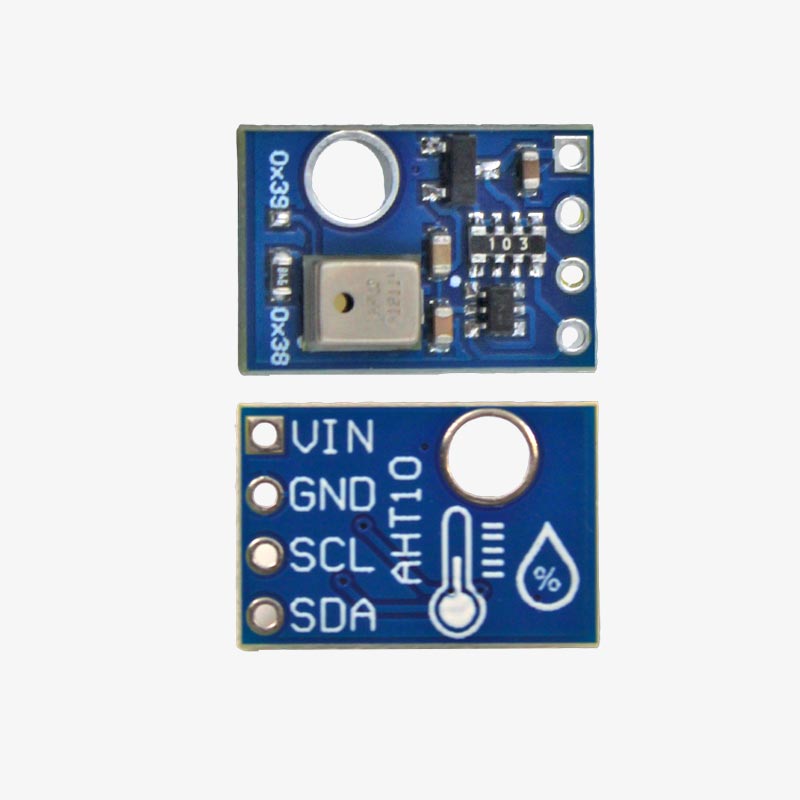

AHT10 High Precision Digital Temperature And Humidity Measurement Module

The AHT10 High Precision Digital Temperature And Humidity Measurement Module is a new generation of temperature and humidity sensors, sets a new standard in size and intelligence: it is embedded in a dual-row flat leadless SMD package for reflow soldering with a 4 x 5mm bottom and a height of 1.6mm. The sensor outputs a calibrated digital signal in standard I 2C format.

The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved beyond the reliability level of previous generation sensors. The first generation of temperature and humidity sensors have been improved to make them more stable in harsh environments.

This sensor gives a calibrated digital signal outputs in standard I2C format. The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved beyond the reliability level of previous generation sensors

Features:

• Output Format: Provides calibrated digital output in standard I2C format
• Sensor Components: Features a specialized ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element, and an on-chip temperature sensing element.
• Enhanced Performance: This module exhibits significantly heightened reliability and stability, making it ideally suited for deployment in rigorous environmental conditions.
• Wide Compatibility: Its versatile compatibility facilitates seamless integration into a diverse array of projects and systems.
• Precision in Every Reading: Exemplifying precision, this module delivers highly accurate temperature and humidity measurements.
• SMD Package for Manufacturing: Designed for reflow soldering, making it an excellent choice for electronics manufacturing.

Specifications:

• Interface Type: I2C
• Working Voltage: 1.8V – 6.0V
• Interface Size: 4*2.54mm pitch
• Humidity Accuracy: Typical ± 2%
• Humidity Resolution: 0.024%
• Temperature Accuracy: Typical ± 0.3°C
• Temperature Resolution: Typical 0.01°C
• Working Temperature: -40°C to 85°C
• Package Type: Dual-row flat leadless SMD package

Package Includes:

1 x  AHT10 High Precision Digital Temperature And Humidity Measurement Module
