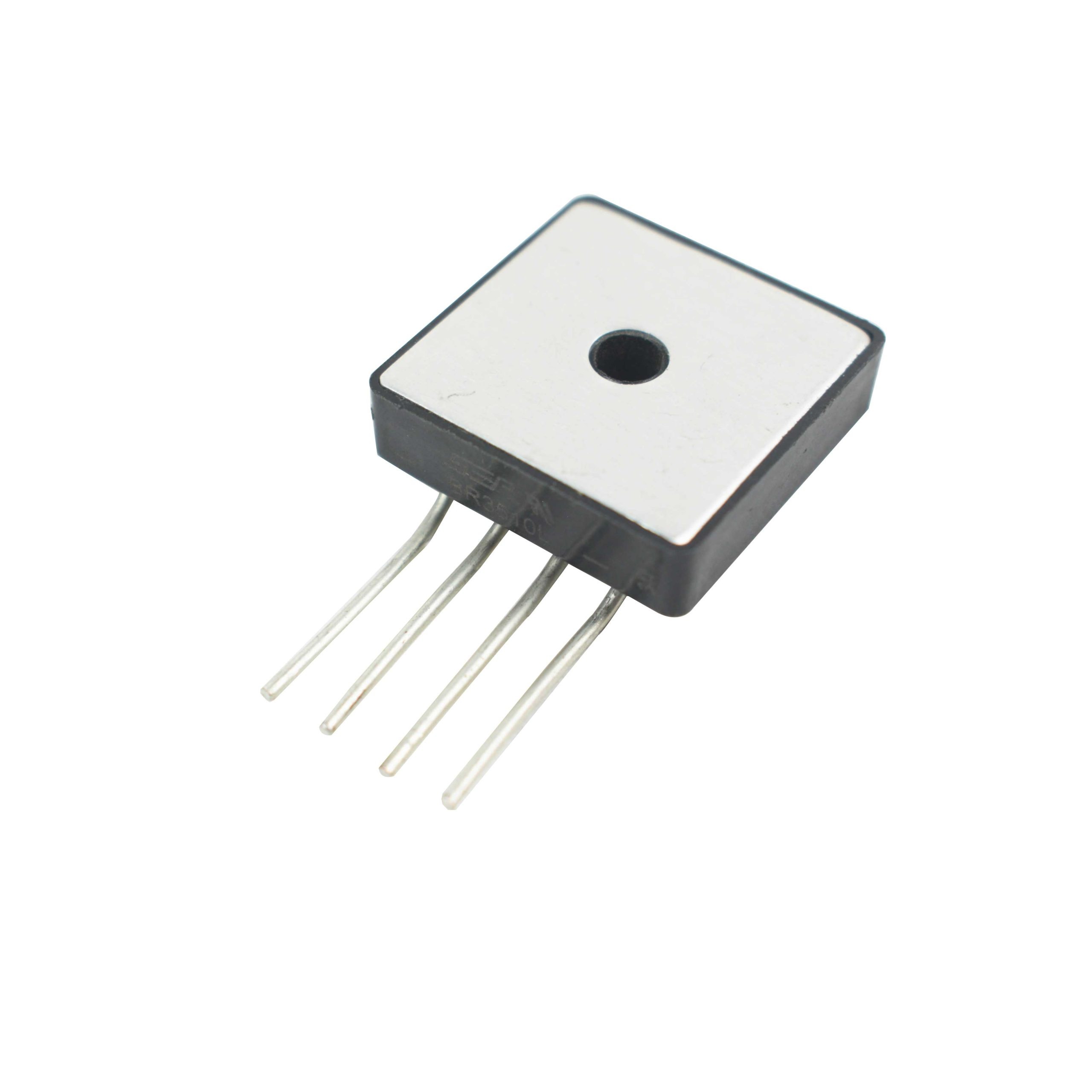

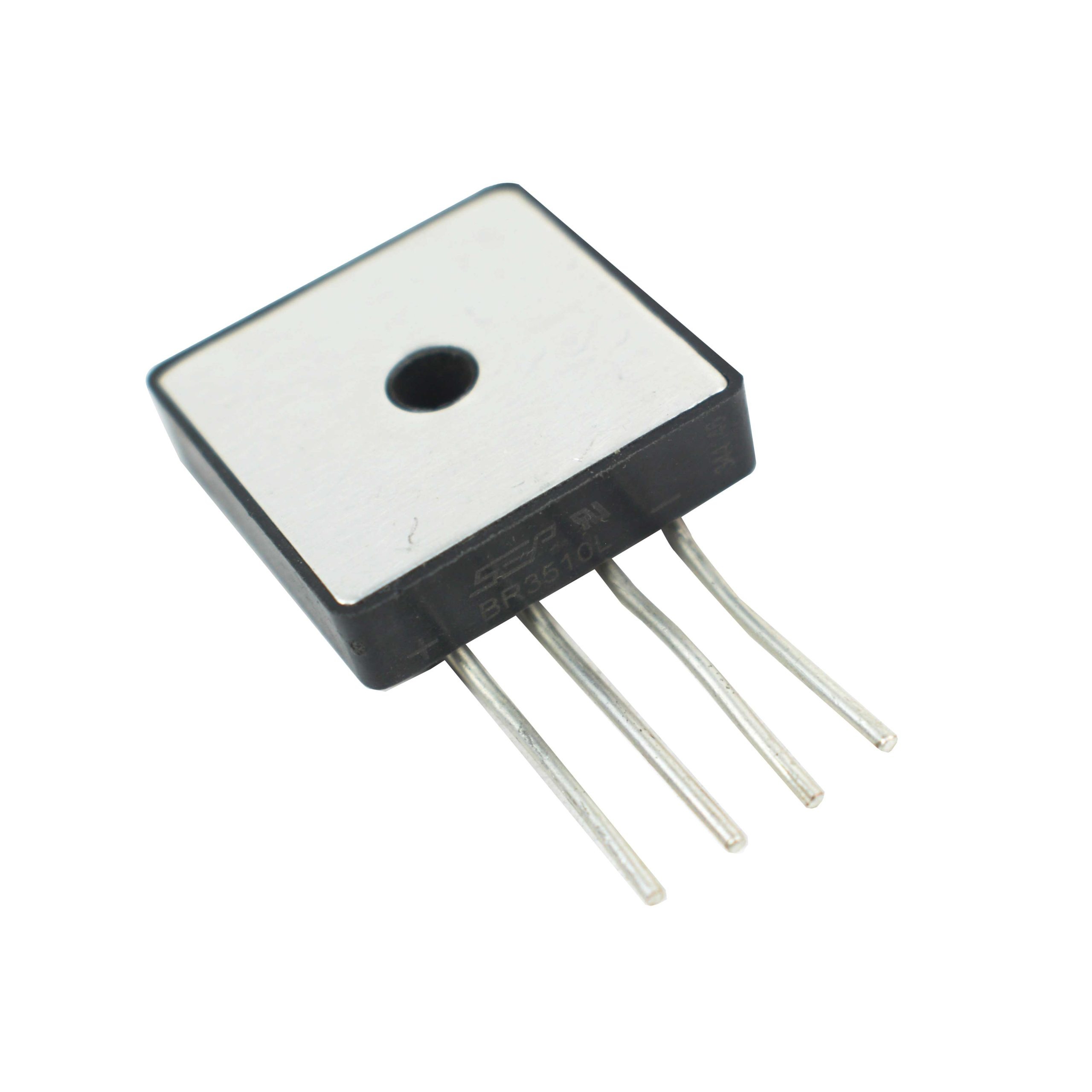

BR3510L 1000V, 35A Single-Phase Silicon Bridge Rectifier

SKU: RZ24340211 Category: General

₹ 220.80

Out of Stock

Buy BR3510L 1000V, 35A Single-Phase Silicon Bridge Rectifier online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 216.38
11 – 30	3%	₹ 214.18
31 – 50	4%	₹ 211.97
51 – 100	5%	₹ 209.76

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24340211

The BR3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum AC voltage that this IC can withstand is around 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice.

Features

Superior thermal design
400A surge rating
¼ “ universal faston terminals
Hole thru for #8 screw

Specification

Model	BR3510
Type	Bridge rectifier diode
Working Peak Reverse Voltage	1000 V
RMS Reverse Voltage V(RMS)	700 V
Average Forward Rectified Output Current	35 A
Peak Reverse Current at 25°C	10µA
Operating and Storage Temperature Range	-55°C to 150°C
Country of Origin	China
