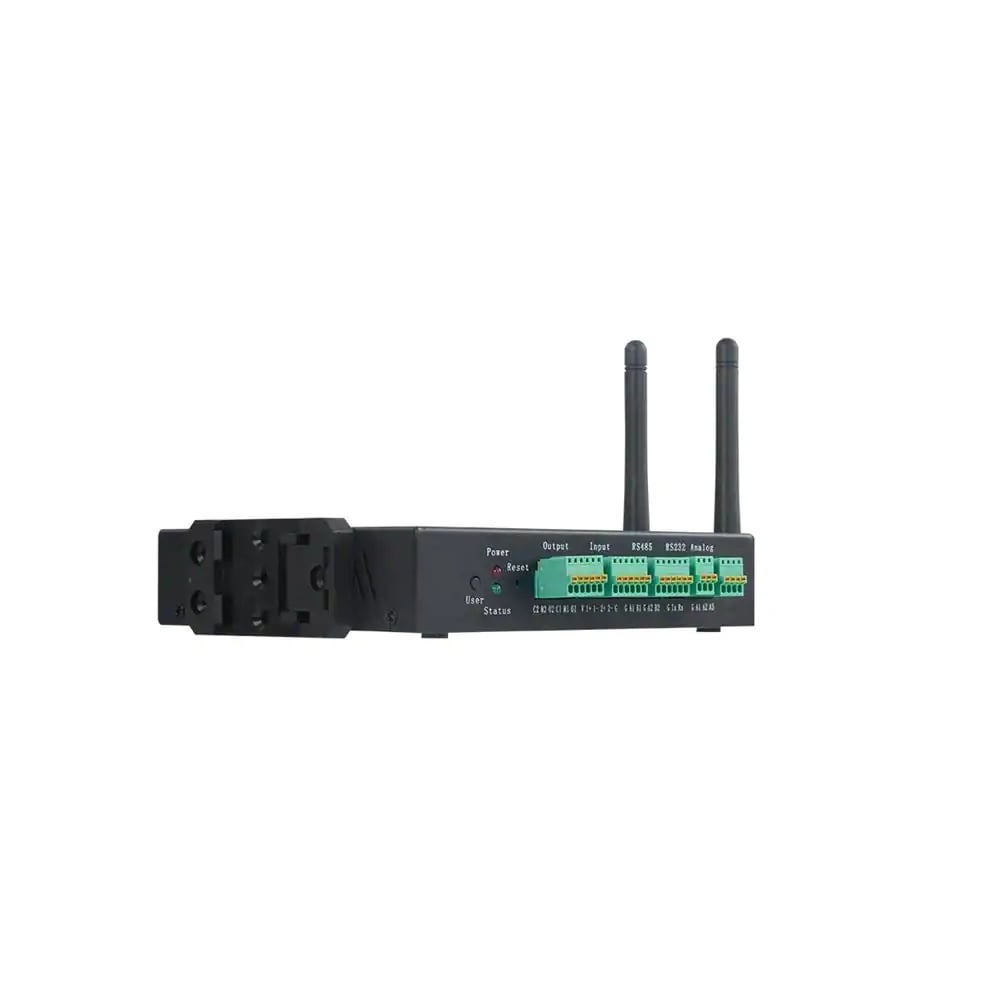

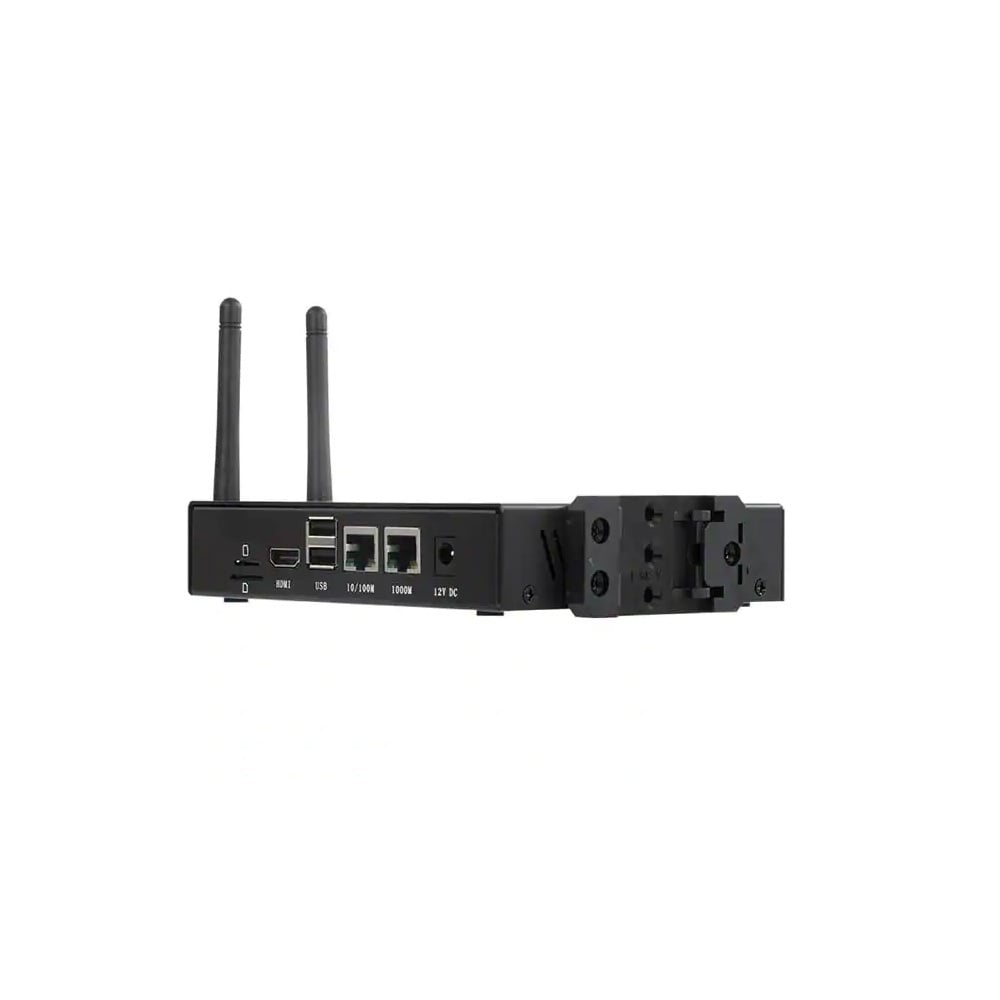

EDATEC ED-CM4IND10-1232-4C baseboard with WIFI Antenna 4G Module Metal Case 2GB RAM and 32GB EMMC

CM4 Industrial is an industrial-embedded computer based on Raspberry Pi Compute Module 4. The system can be configured by 1GB/2GB/4GB/8GB RAM and 8GB/16GB/32GB EMMC according to different applications, supporting SD card startup. It provides a variety of industrial communication interfaces and functions, such as RS232, RS485,
high-precision ADC, isolated IO input, relay control, the real-time clock of battery backup, and alarm buzzer.

Besides, 1x Ethernet interface with POE function, 1x 10/100M port, 4G/LTE module, external antenna support, certified 2.4/5.8G dual-band WIFI, and Bluetooth is also provided. Moreover, CM4 Industrial support certified 2.4/5.8G dual-band WIFI, and Bluetooth is also provided. Moreover, CM4 Industrial supports an official 1x 8-megapixel camera, 1x DSI display port, and 1x HDMI cable port.

Other features of CM4 Industrial are also worth mentioning, for example, onboard 32Mb serial Flash is used to store system data, the power supply is available in a wide range of 12~18V, and ESD protection is
provided for all important interfaces. The users can add more functions on the board through PCI-e 1x Gen2 interface, the standard 40 pins interface, the standard 40 pins connector, the 2x 4-pin USB interface for internal expansion, 1x TTL electric
level RS232 interface, etc. to fully utilize its powerful communication capability to satisfy all kinds of requirement in CM4 Industrial.

Features:

• Processor: The ED-CM4IND10-1232-4C baseboard is powered by a quad-core ARM Cortex-A53 processor, running at up to 1.5GHz. This processor provides a balance of performance and power efficiency.
• RAM: The baseboard has 2GB of LPDDR4 RAM, which is sufficient for many embedded applications and can run a variety of software and applications.
• Storage: The ED-CM4IND10-1232-4C baseboard has 32GB of eMMC flash storage, which provides a reliable and fast way to store and access data.
• Connectivity: The baseboard features built-in WiFi and Bluetooth 4.2 connectivity, allowing it to connect to wireless networks and devices. It also has a built-in 4G LTE module, which can provide high-speed cellular connectivity.
• I/O interfaces: The ED-CM4IND10-1232-4C baseboard has a range of I/O interfaces, including USB 2.0 and USB 3.0 ports, HDMI and MIPI-DSI display interfaces, and a 3.5mm audio jack. It also has a Gigabit Ethernet port, a microSD card slot, and a range of GPIO pins.
• Operating system: The baseboard supports a variety of operating systems, including Android and Linux, allowing developers to choose the most appropriate OS for their application.
• Power supply: The ED-CM4IND10-1232-4C baseboard requires a 5V DC power supply, which can be provided via a micro-USB port or a DC jack.
• Metal case: The baseboard comes with a durable metal case, which provides protection against environmental factors such as dust, moisture, and shock.

Specifications:

1. Core Processor: ARM® Cortex™-A72 1.5GHz, 4 Core
2. Storage: eMMC, 32GB
3. Memory: DDR (2GB Installed)
4. Card Slot: Micro SD
5. Supply Voltage: 7 ~ 36VDC
6. Mounting Type: DIN Rail or Wall Mount
7. Operating Temperature: -25°C ~ 50°C
8. Operating System: Raspberry Pi Raspbian OS Installed

For Detailed technical specifications go through datasheet in the attachments

Package Includes:

1 x EDATEC ED-CM4IND10-1232-4C baseboard with WIFI Antenna
