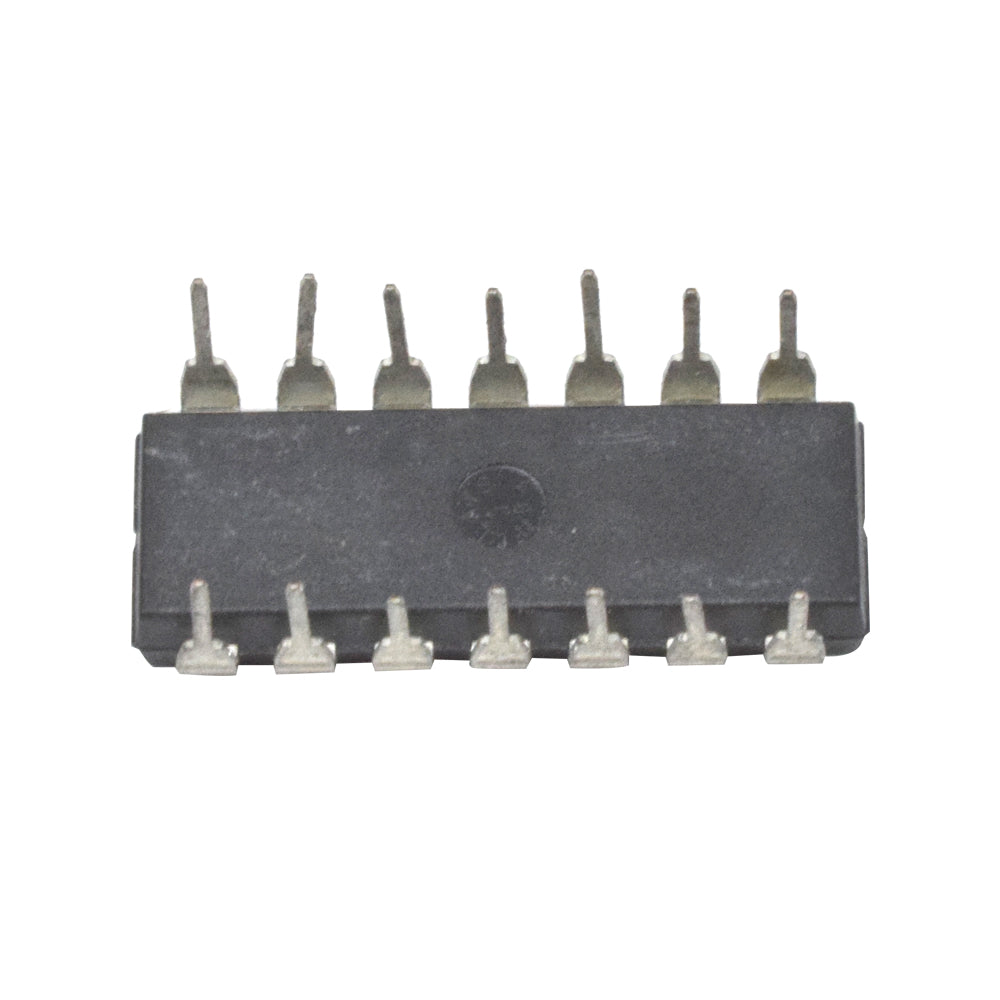

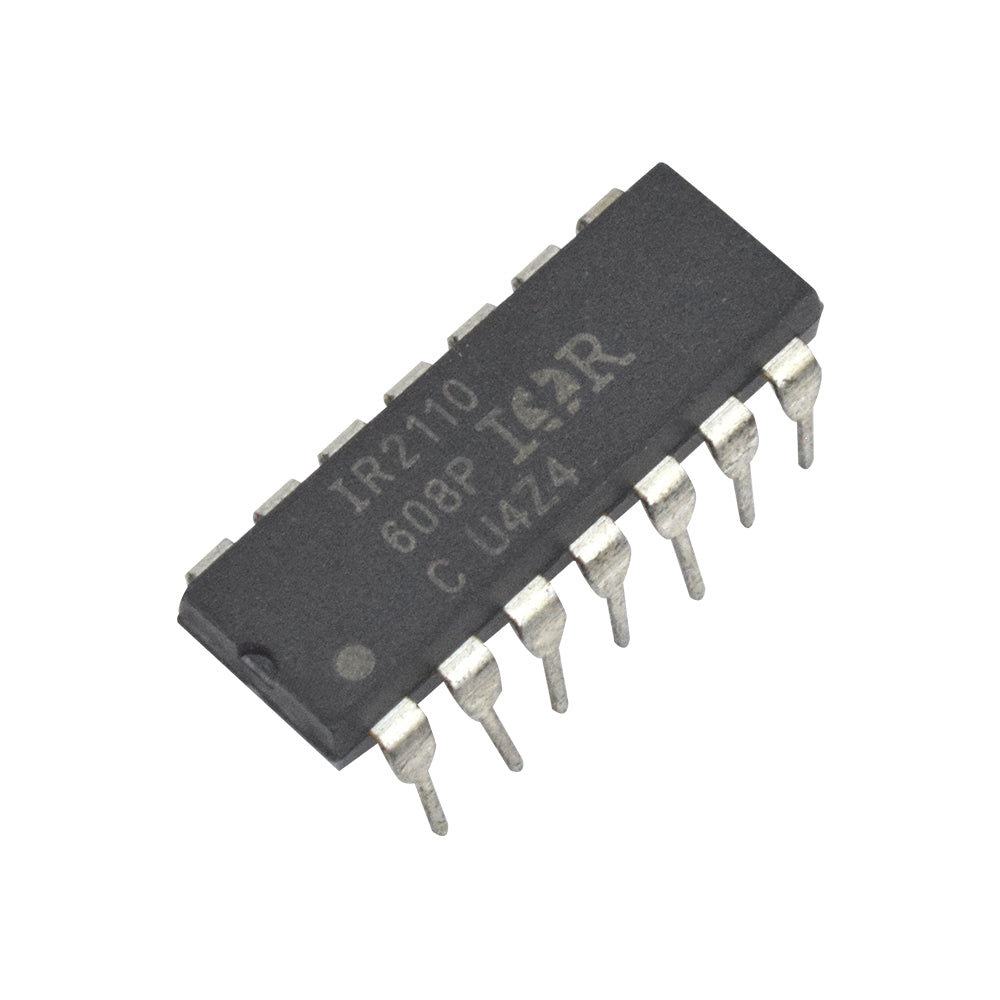

IR2110 MOSFET/IGBT Driver in DIP-14 Package
🔍 Zoom

IR2110 MOSFET/IGBT Driver in DIP-14 Package

SKU: RZ24338252 Category: General
₹ 193.20
Out of Stock

Buy IR2110 MOSFET/IGBT Driver in DIP-14 Package online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 189.34
11 – 30 3% ₹ 187.40
31 – 50 4% ₹ 185.47
51 – 100 5% ₹ 183.54

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Category General
Subcategory General
SKU RZ24338252

The IR2110 is a HIGH AND LOW-SIDE DRIVER in the DIP-14 Package. The IR2110 are power MOSFET and IGBT drivers with independent high and low-side referenced output channels that operate at high voltage and high speed. HVIC and latch-immune CMOS technologies, which are proprietary, enable ruggedized monolithic construction. Down to 3.3V logic, logic inputs are compatible with standard CMOS or LSTTL output. The output drivers have a high pulse current buffer stage designed to reduce driver cross-conduction. To facilitate use in high-frequency applications, propagation delays are matched.

 Datasheet.

    Features

    • Gate drive supply range from 10 to 20V
    • Under voltage lockout for both channels
    • 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset
    • CMOS Schmitt-triggered inputs with pull-down
    • Cycle-by-cycle edge-triggered shutdown logic
    • Matched propagation delay for both channels
    • Outputs in phase with inputs
    Specifications
    Model IR2110
    Brand International Rectifierer
    Mounting Type
    Through Hole
    V(offset) 500V max.
    V out 10~20V
    Delay Matching 10ns max.
    Pitch
    2.5mm
    Number of pins 14
    Package DIP-14
    Country of Origin China
