Panasonic MIP2K5 High-Performance IPD for Battery Charger
Buy Panasonic MIP2K5 High-Performance IPD for Battery Charger online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
MIP2K5, MIP2Kx series is a high-performance IPD designed for 15W battery chargers and featuring built-in frequency jitter function at PWM control. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.
Features
- Built-in jitter function
- Built-in charge protection circuit
- Built-in overheating, load shorting and overvoltage protection circuits
Applications
- Chargers (for DSC, etc.), AC adapter
Specifications
| Model | MIP2K4 | |
| Brand | PANASONIC | |
| Output | Up to 10W | |
| VDSS | 700V | |
| ILIMIT | 0.70A | |
| R(DS)ON | 7ohm |
|
| fosc | 100kHz | |
| ∆f | 5.5kHz | |
| fM | 260Hz | |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER | |
| Control Technique |
|
|
| Number of Functions | 1 | |
|
7 |
|
| Quantity | 50 | |
| Mounting | Through Hole | |
| Country of Origin | China |
welcome
welcome
You May Also Like
View all →

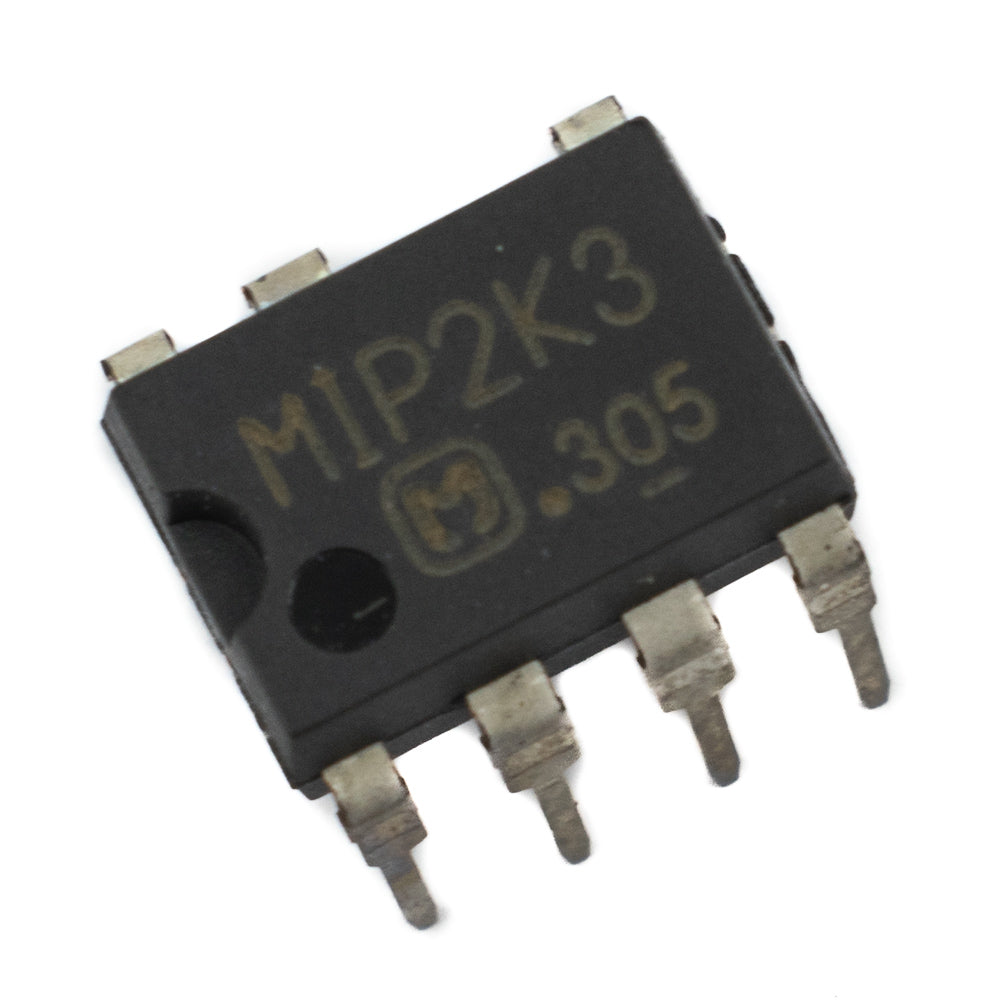

Buy Panasonic MIP2K3 High-Performance IPD for Battery Charger online, Order today to get instant delivery in all over india.
