Smart Home Automation Kit with APP Control

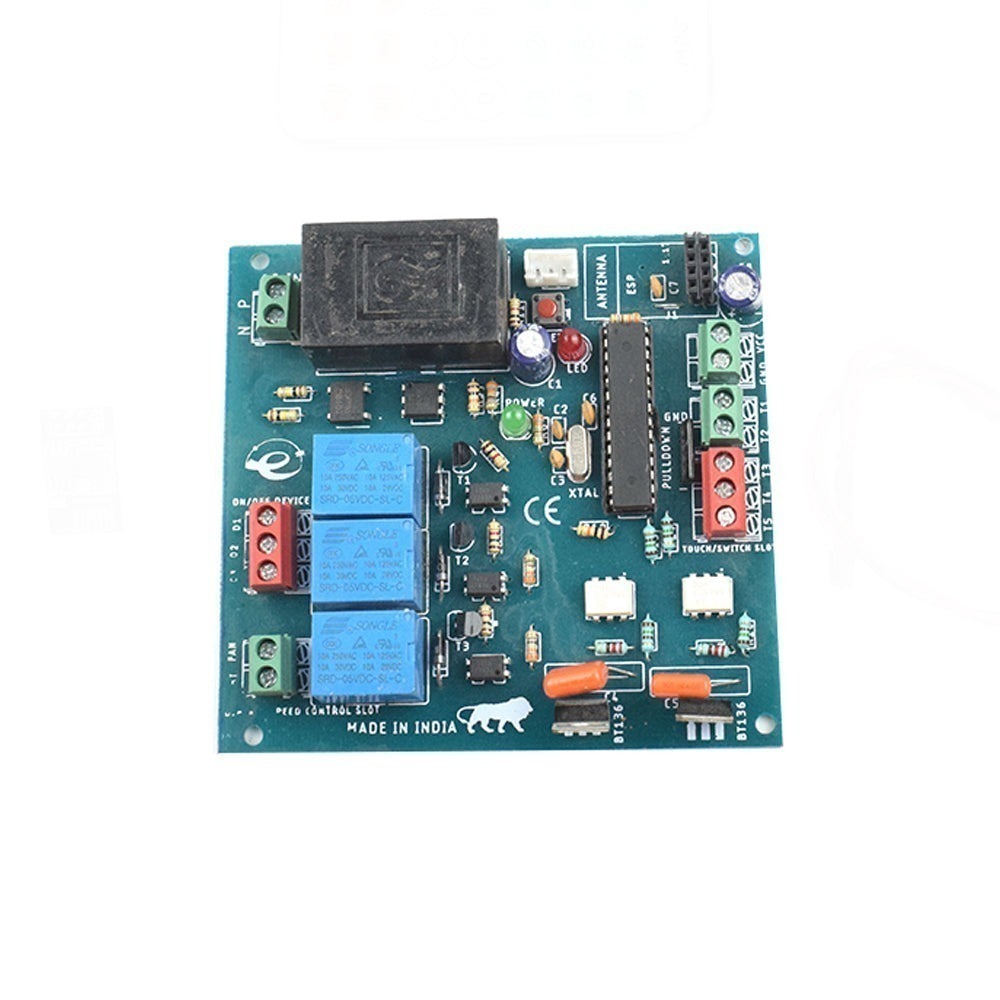

Its Home Automation Kit with WIFI Module, It can be used in Home automation appliances its a small project kit which can be used by the students or in college project, In this Board it has 3 Relays for switching purpose, It has 3 IC PC817 Its used for I/O isolation for Microcontroller, and noise suppressing in switching circuits. It has a Microcontroller IC ATmega328P its used to control all the process in this Board. It has two MOC3021 IC, MOC3021 is an optically Isolated Triac Driver Device, contains a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. It has an LED which is used as an Indicator. It has a WIFI Module ESP8266, This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. Its a WIreless control smart Home  Automation Kit

Package Included:

1. Automation Kit
2. WIFI Module

Features:

• It has a crystal oscillator
• It has ATmega328P
• It has 3 relays for Switching purpose
• It has 3 ,5V Relay outputting switch signals, suitable for controlling loads whose working voltage is within AC 250V/DC30V
• It has Onboard power indicator and relay indicator
• ESP8266 wifi Module works on This standard of wifi 802.11 b/g/n
• Its power supply is  5-80V
• we can control 5 devices for this Kit.
• It has a reset Button

Specifications:
