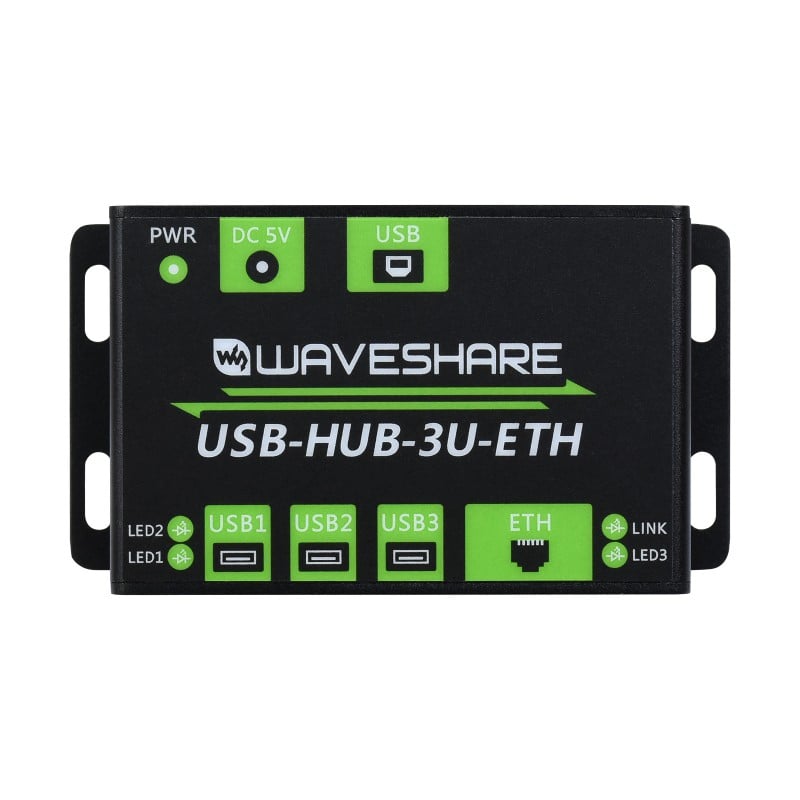

Waveshare Industrial Grade Multifunctional USB HUB, Extending 3x USB ports + 100M Ethernet Port

Industrial Grade Multifunctional USB HUB, Extending 3x USB Ports + 100M Ethernet Port

Features:

1. 3x extended USB ports, compatible with USB 2.0 / 1.1
2. Onboard RTL8152B Ethernet chip, adapting RJ45 network port, 10/100M adaptive
3. Industrial grade HUB chip, adopting STT technology, allows stable and smooth concurrent USB connections
4. ESD protection for each USB port, preventing electric surge damage and data loss
5. Onboard large-capacity electrolytic capacitor, effectively making the power supply output of the USB port more stable
6. Over-voltage protection, effectively preventing other high-voltage power inputs from damaging the connected devices
7. Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
8. LED indicators for monitoring operating statuses of power supply, network port, and USB ports
9. Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Specifications:

1. USB Port USB 2.0 Port x 3, theoretically up to 480Mbps
2. Networking: 10/100 adaptive
3. USB hub Input: operating voltage: 5V
4. Connector: USB-B
5. USB Output Operating Voltage: 5V@Imax:1.2A①
6. Connector: USB-A
7. External Power: power supply voltage DC 5V②
8. connector: DC jack
9. Operating Environment: -40℃ ~ 85℃
10. OS Support: Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

Package Includes:

1 x Waveshare Industrial Grade Multifunctional USB HUB, Extending 3x USB ports + 100M Ethernet Port
