Waveshare Industrial IoT Wireless Expansion Module Designed for Raspberry Pi Compute Module 4 (Without Power Adapter)

This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allowing additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

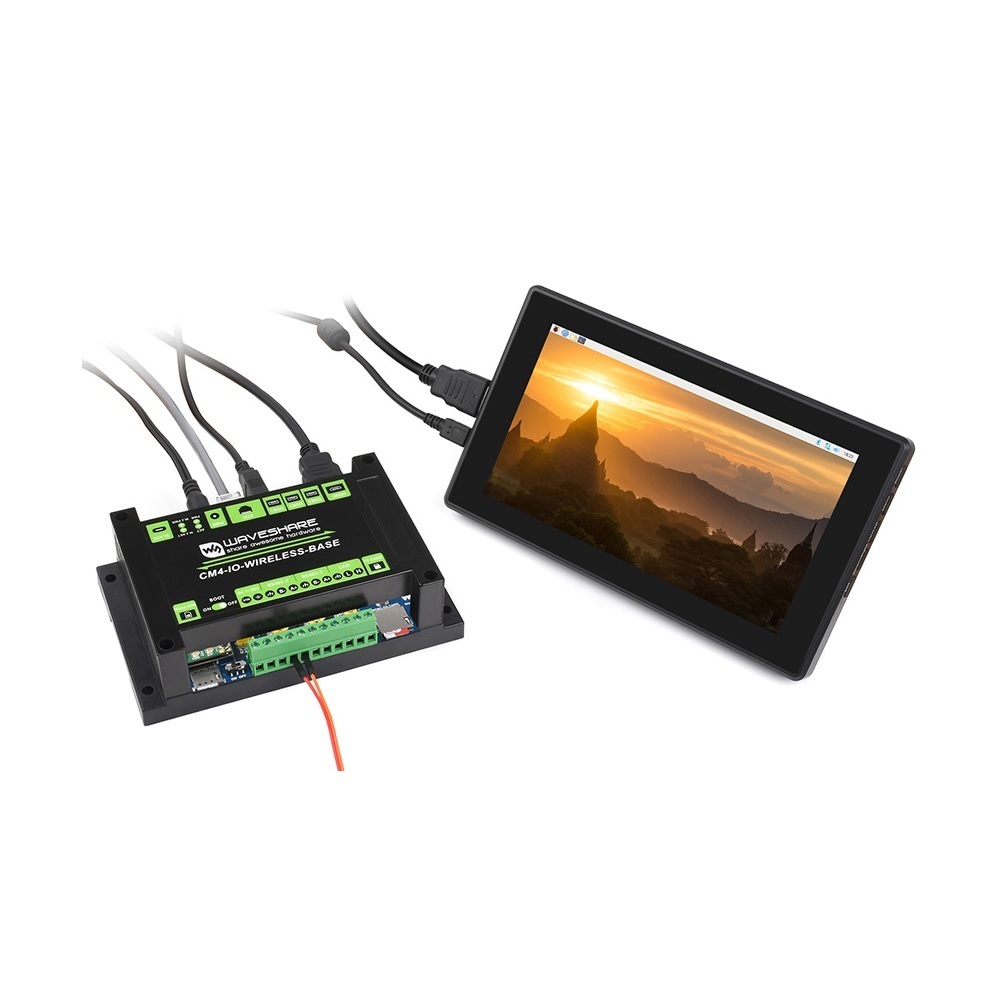

Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in the industrial automatic control system, and more.

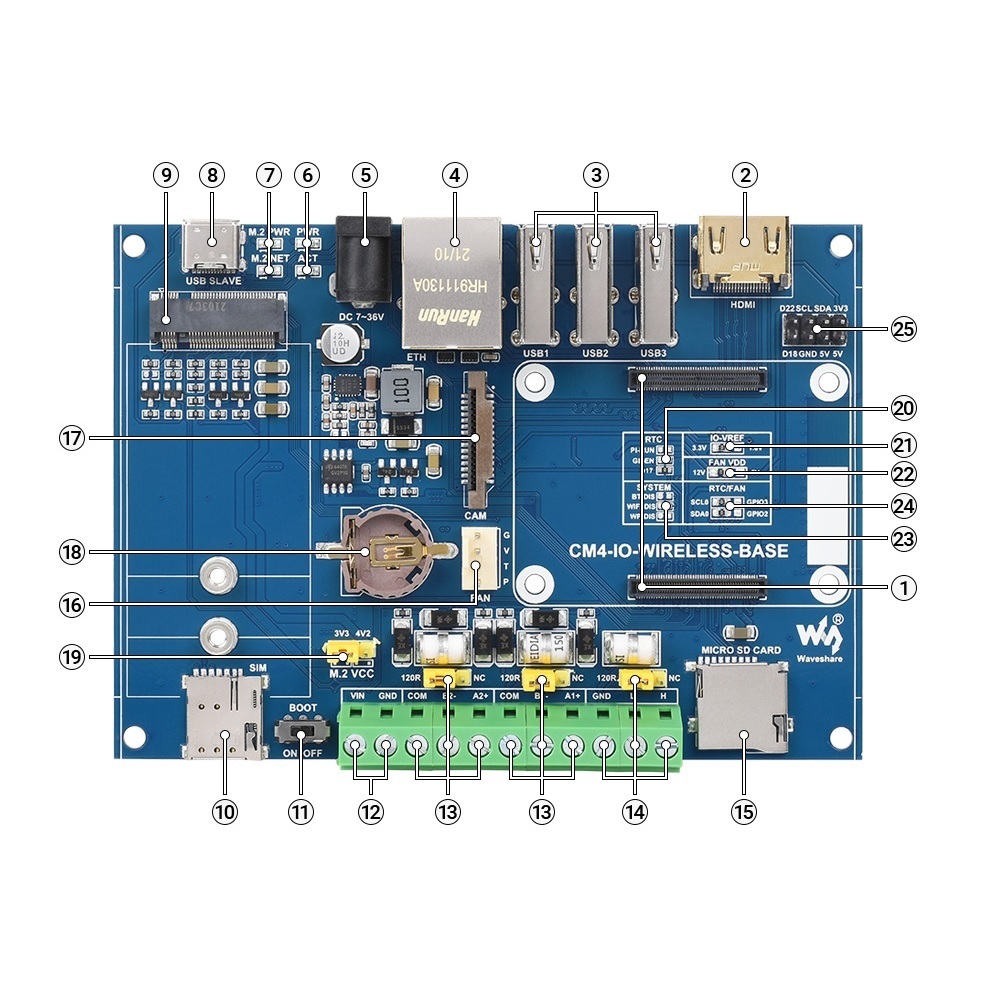

Specifications and Features:

1. CM4 SOCKET: suitable for all variants of Compute Module 4
2. NETWORKING: Gigabit Ethernet RJ45
3. M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
4. Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
5. USB USB: 2.0 × 3
6. PIN HEADER: Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins
7. CAMERA MIPI: CSI-2 × 1 (15pin 1.0mm FPC connector)
8. VIDEO HDMI: × 1, supports 4K 30fps output
9. RTC Real-time clock with a battery socket and ability to wake Compute Module 4
10. STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
11. FAN HEADER: 5V/12V, allows speed adjustment and measurement
12. POWER INPUT: 5V or 7~36V
13. DIMENSIONS: 145 × 90 × 40mm

Package Includes:

1 x Waveshare Industrial IoT Wireless Expansion Module Kit

Kit Includes:

1 x CM4-IO-WIRELESS-BASE
1 x PCIe to 4G/LoRa adapter
1 x Screwdriver
1 x Screws pack
1 x 4G module
1 x SIM7600G-H-PCIE
1 x PCB antenna IPEX connector
