Waveshare Rail-Mount Serial Server RS232/485/422 to RJ45 Ethernet Module TCP/IP to serial With POE Function

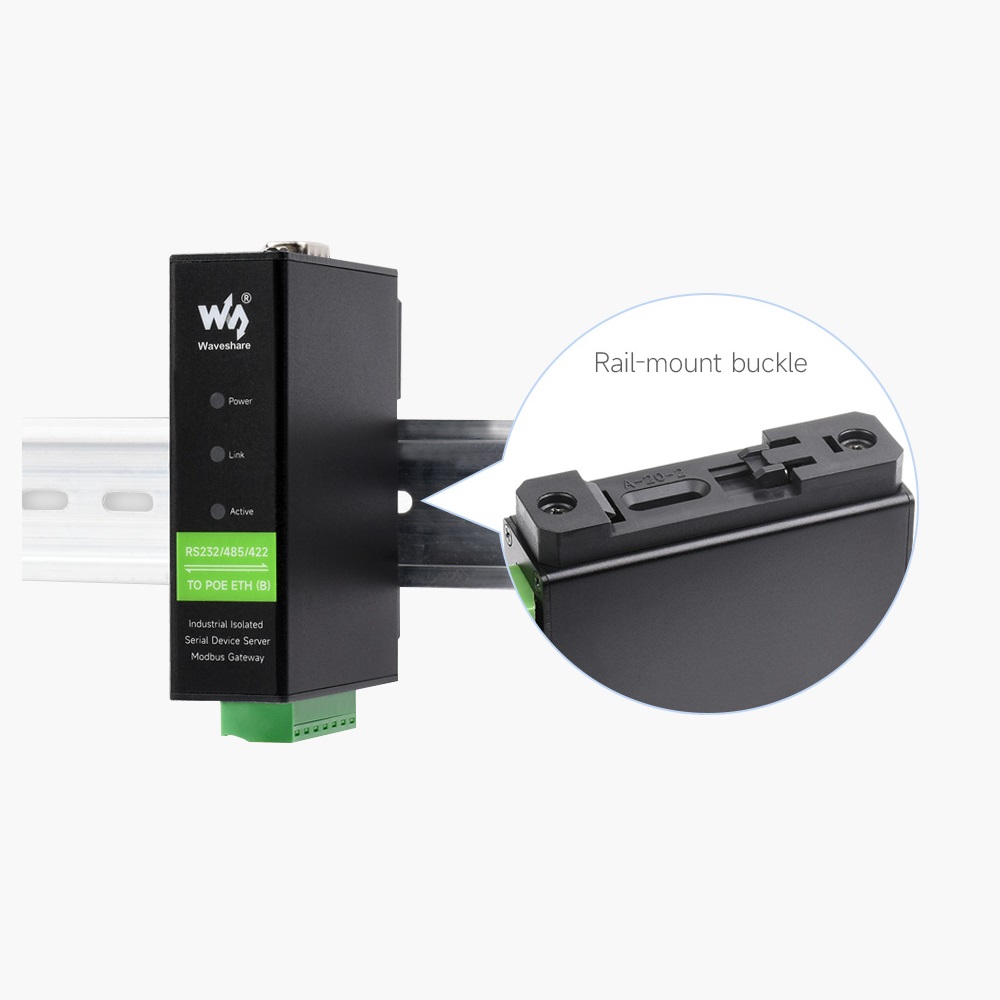

This is an RS232/485/422 device data acquisitor / IoT gateway designed for an industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and an Ethernet port with PoE function, uses a DC port (outer diameter: 5.5mm, inner diameter: 21mm) and screw terminals for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring…

Rail-Mount Serial Server, RS232/485/422 To RJ45 Ethernet Module, TCP/IP To Serial, With POE Function.

Features:

1. Support PoE Ethernet Port Power Supply,
2. Suitable For IEEE 802.3af PoE Standard

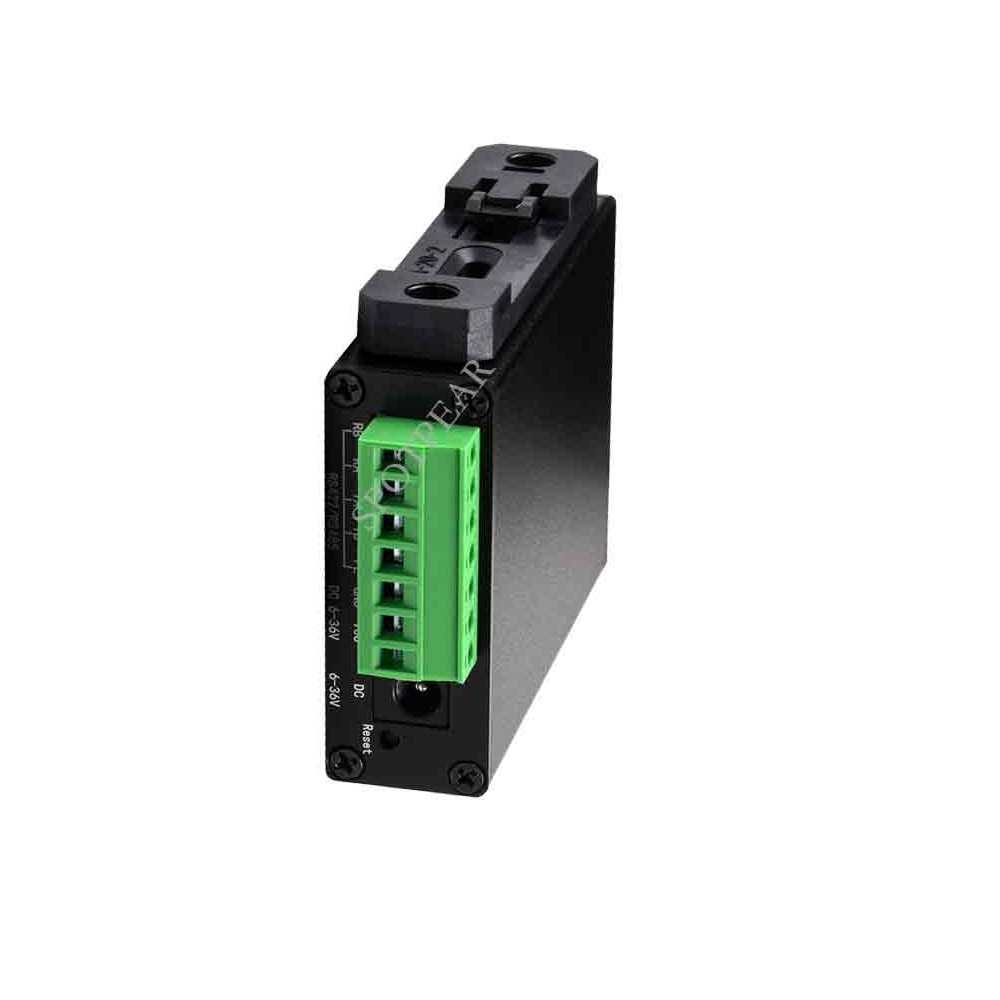

3. Support Screw Terminal And DC Power Port For Power Supply
4. DC 6~36V Wide Voltage Range Input

Specifications:

1. Model: RS232/485/422 TO POE ETH (B)
2. Product type: Serial server, Modbus gateway, MQTT gateway
3. Primary function Realize the bidirectional transparent transmission function of RS232/485/422 to Ethernet
4. Communication interface: RS232/485/422 × 1, Ethernet port × 1
5. Power supply: Screw terminal DC 6~36V or PoE network port
6. Isolation protection: Power isolation, signal isolation protection
7. Ethernet:
   1. PoE Ethernet port, support IEEE 802.3af standard
   2. 10 / 100M self-adaptive RJ45 interface, 2KV surge protection
8. Serial port Isolated RS232/485/422
9. Baud rate 300 ~ 115200 bps
10. Parity bit none, odd parity, even parity, mark, space
11. Data bits 5 ~ 9 bits
12. Flow Control no flow control
13. Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
14. Configuration method PC configuration, WEB browser, device management function library
15. Communication method TCP/IP direct communication, virtual serial port mode
16. Operating mode TCP server, TCP client (TCP server also coexist), UDP, UDP multicast
17. Operating temperature -40℃ ~ 85℃
18. Humidity range 5% ~ 95% relative humidity

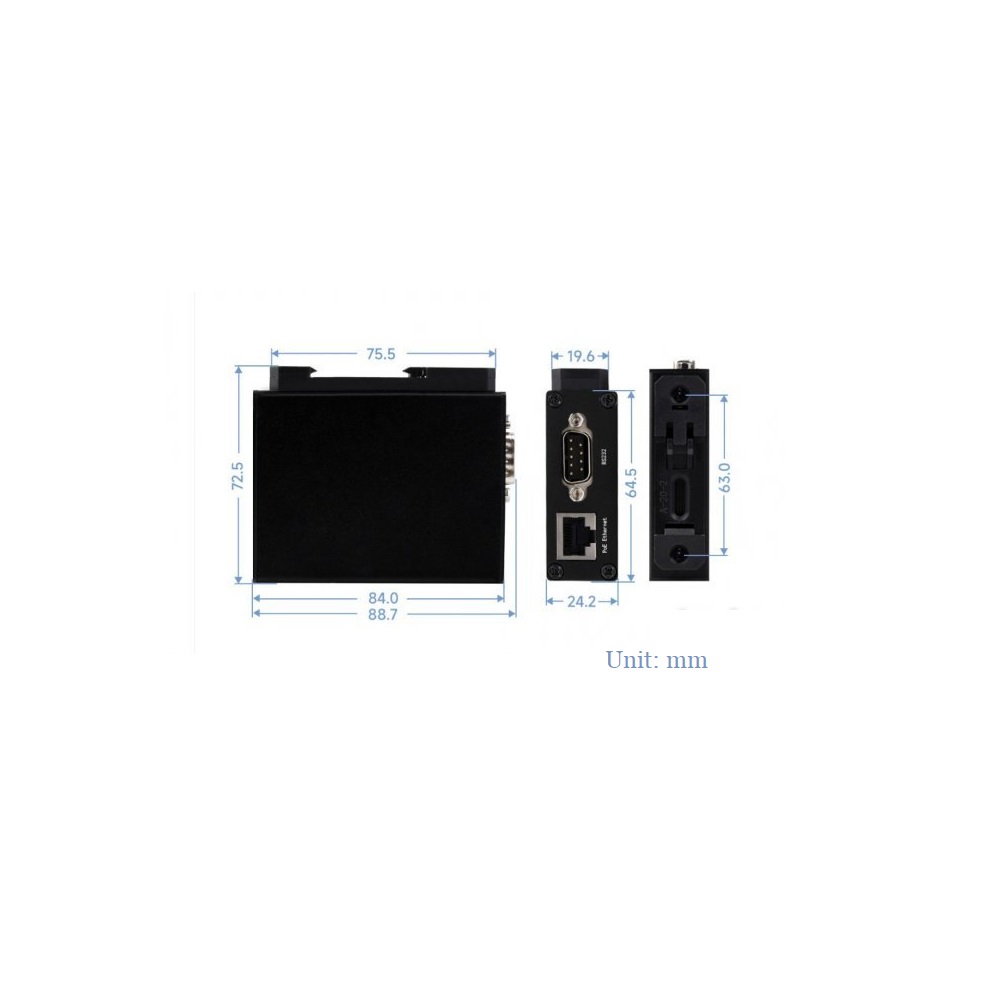

19. Dimensions L × W × H: 88.7 × 64.5 × 24.2 mm

Package Includes:

1 x Waveshare Rail-Mount Serial Server RS232/485/422 to RJ45 Ethernet Module
