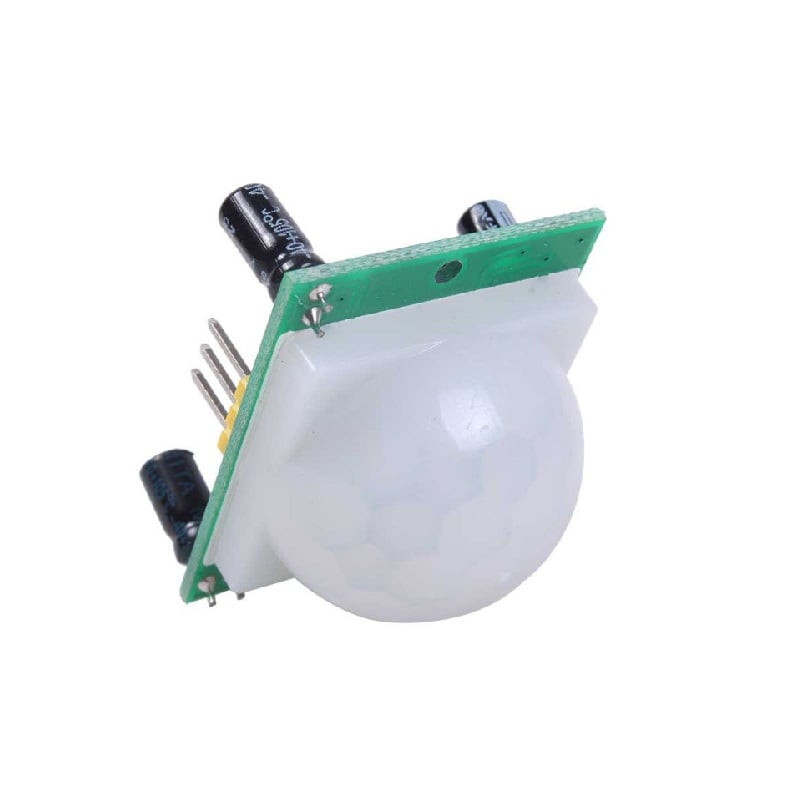

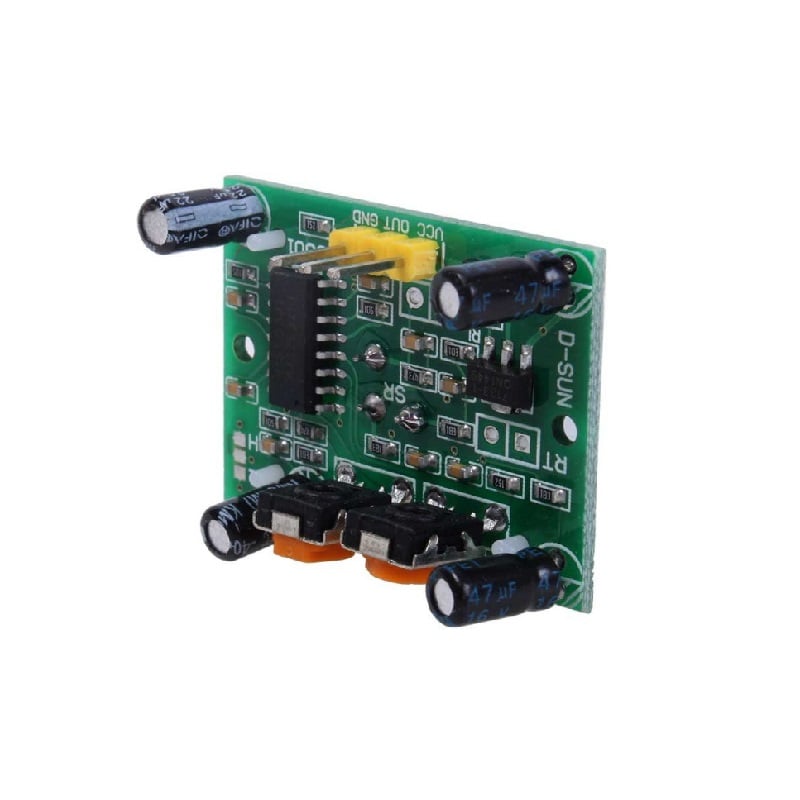

Winsen ZRD-09 PIR Sensor Module For Human Body Induction
🔍 Zoom

Winsen ZRD-09 PIR Sensor Module For Human Body Induction

SKU: RZ24313617 Brand: Winsen Category: Sensors
₹ 172.50
Out of Stock

Buy Winsen ZRD-09 PIR Sensor Module For Human Body Induction online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 169.05
11 – 30 3% ₹ 167.33
31 – 50 4% ₹ 165.60
51 – 100 5% ₹ 163.88

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Winsen
Category Sensors
Subcategory PIR & IR Sensors
SKU RZ24313617

ZRD-09 Pyroelectric infrared sensor module adopts high performance PIR sensor, Fresnel lens, Pyroelectric dedicated chip and High-performance voltage regulator circuit. It has the features, as low static power consumption, wide operating voltage, and high sensitivity. It has repeatable and non-repeatable trigger terminal to be selected, thus this module can be set according to the actual demand, convenient to use.

Applications:

  1. Security products,
  2. Human body induction toys,
  3. Human body induction lamps, switches, and appliances
  4. Industrial automatic controlling

Features:

  1. Automatic Induction;
  2. Photo-resistor control;
  3. Two trigger modes;
  4. Induction blocking time;
  5. High-level output;

Specifications:

Working Voltage 5~20V DC
Static Current <65µA, @5V
Level Output High Level, 3V; Low Level, 0V
Trigger Mode Repeatable/Unrepeatable
Delay Time 3~300S(adjustable)
Blocking Time Default as 4S
PCB Size 32×24×24mm(L×W×H)
Detection Angle 100°(Depend on the Lens)
Working Temperature -10℃ ~ +70℃
Fresnel Lens Size Diameter 23mm(default)
Detection Distance 4~8m(adjustable)

Packages Includes:

1 x Winsen ZRD-09 PIR Sensor Module For Human Body Induction

welcome

welcome

You May Also Like

View all →
5mm 940nm Infrared Receiver LED IR Diode LED- (Pack of 5)

Buy 5mm 940nm Infrared Receiver LED IR Diode LED- (Pack of 5) online, Order today to get instant delivery in all over india.

Notify Me
Winsen ZE11 Electrochemical Detection Module For ETO

Buy Winsen ZE11 Electrochemical Detection Module For ETO online, Order today to get instant delivery in all over india.

Notify Me

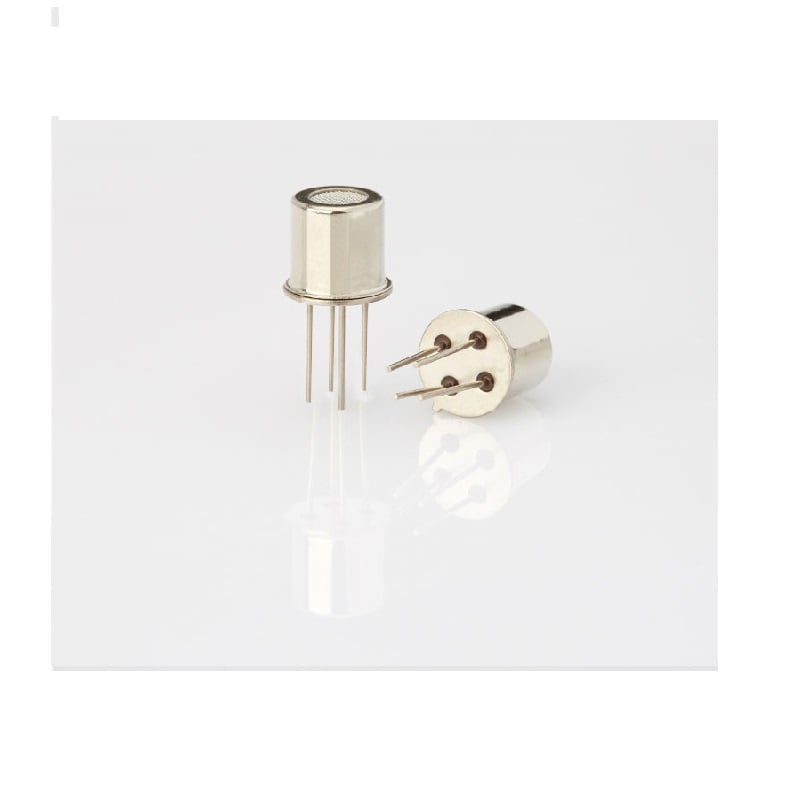

Winsen MG812 Mini Size Solid Electrolyte CO2 Gas Sensor
