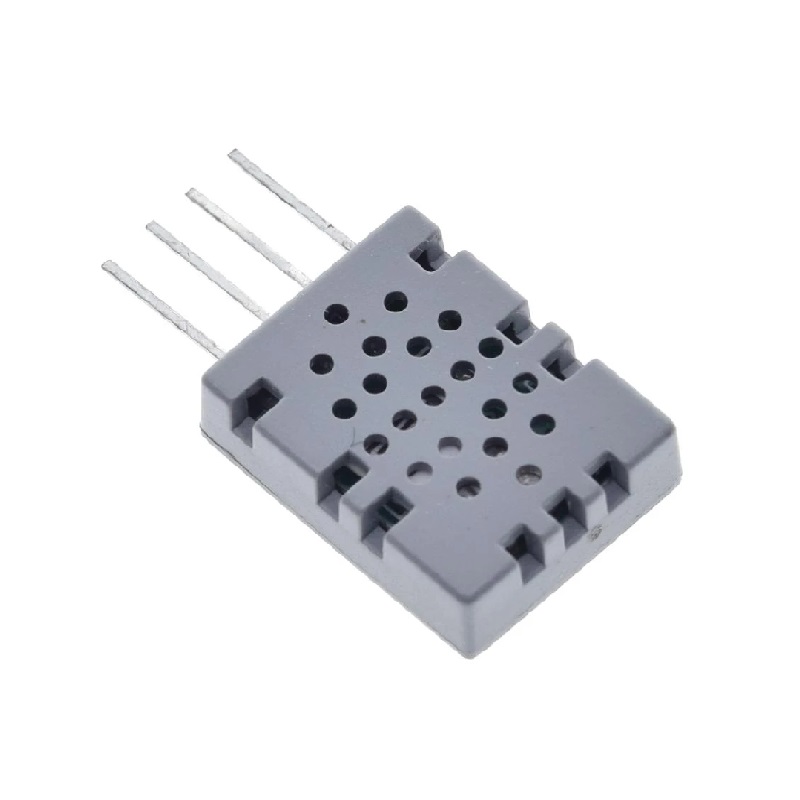

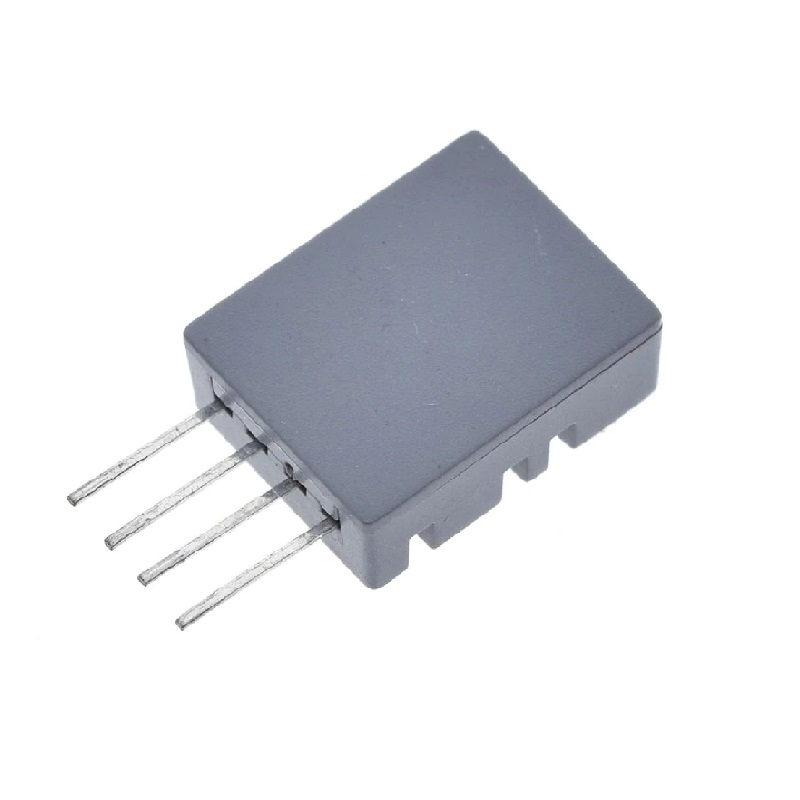

Winsen ZS03 Temperature and Humidity Sensor Module

ZS03 temperature and humidity sensor module, is digital type of temperature and humidity sensor. It employs polymer resistance-type moisture sensor and NTC, and connects to a 8-byte SCM with good performance. It has advantages of high quality, quick response, strong anti-interference &etc.

Temperature and humidity sensor (or rh temp sensor) is devices that can convert temperature and humidity into electrical signals that can easily measure temperature and humidity.

Humidity sensors are used to measure and monitor the amount of water present in the surrounding air

Applications:

1.  Storage
2. industrial production
3. process controlling
4. environment monitoring
5. household appliances
6. meteorological field

Features:

1. Small in size
2. Best quality product
3. It detect Temperature and Humidity
4. High sensitivity, high resolution, low power consumption
5. Fast response time
6. Temperature compensation, excellent linear output
7. Excellent stability
8. Long lifespan
9. Anti-poisons, anti-vapor interference

Specifications:

1. Model: ZS03
2. Detection Object: Relative humidity, temperature
3. Operation Voltage: 2.7～5.5V DC
4. Detection Range: 20～90%RH
5. Accuracy for humidity detection: ±5%RH (at25℃，60%RH，Vin=2.7V)
6. Accuracy for temperature detection: ±2℃
7. Operation temperature: 0～60℃
8. Operation humidity: 20～90%RH（non-condensation）
9. Package Single row straight: 4-pins(SIP4)

Packages Includes:

1 x Winsen ZS03 Temperature and Humidity Sensor Module
