- 3.5RPM 12V LOW NOISE DC MOTOR WITH METAL GEARS – GRADE A
3.5RPM 12V LOW NOISE DC MOTOR WITH METAL GEARS – GRADE A
Buy 3.5RPM 12V LOW NOISE DC MOTOR WITH METAL GEARS – GRADE A online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
These motors are simple DC Motors featuring Metal gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly.
These standard size DC Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with an onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.
This DC Motor – 10RPM – 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

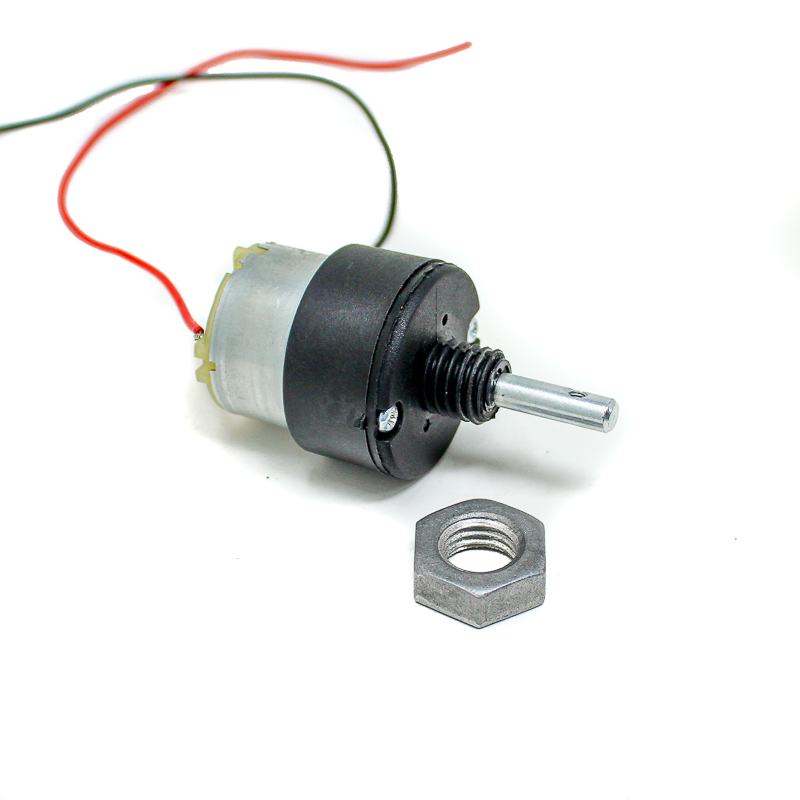

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels.
These DC Geared motors with robozarst metal/Plastic gearbox for heavy-duty applications, available in the wide RPM range(Check the list below) and ideally suited for robotics and industrial applications.
We are supplying the range of variants of this DC Motors, you can choose one according to your requirement by clicking on View or Add to Cart directly.
| RPM | Torque | Link | |
| 3.5 | 15.7kg-cm | View | Add to Cart |
| 10 | 7 kg-cm | View | Add to Cart |
| 30 | 5 kg-cm | View | Add to Cart |
| 45 | 4.2kg-cm | View | Add to Cart |
| 60 | 3.6 kg-cm | View | Add to Cart |
| 100 | 2.9 kg-cm | View | Add to Cart |
| 150 | 2 kg-cm | View | Add to Cart |
| 200 | 1.5 kg-cm | View | Add to Cart |
| 300 | 1.2 kg-cm | View | Add to Cart |
| 500 | 0.7 kg-cm | View | Add to Cart |
| 1000 | 0.3 Kg -cm | View | Add to Cart |
Features :
- It comes with Good Quality Gears.
- The metal gears have better wear and tear properties.

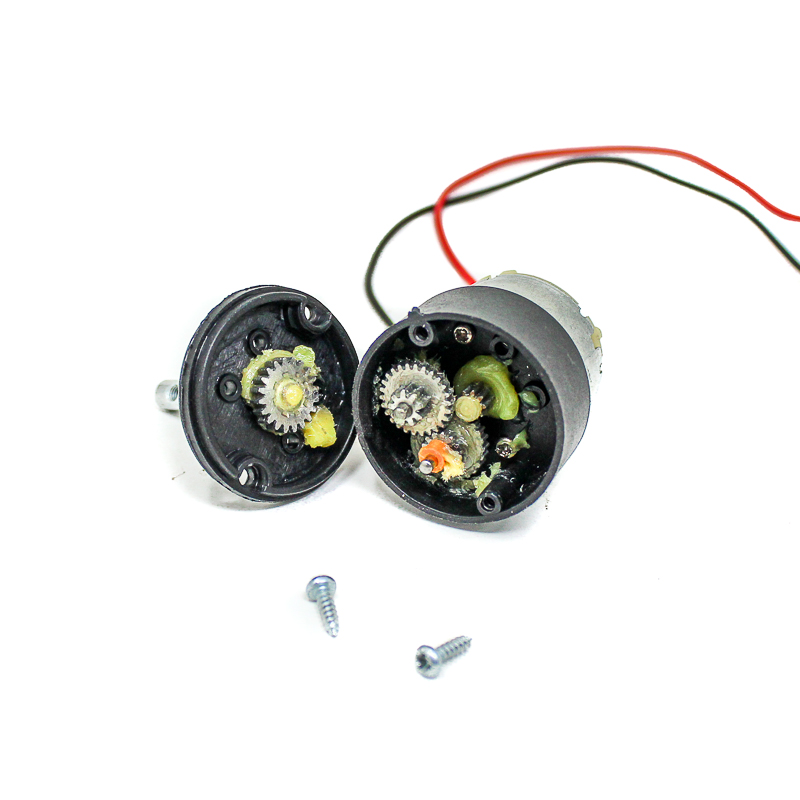

- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 10 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
Package Includes :
1 x 3.5RPM 12V Low Noise DC Motor With Metal Gears – Grade A
